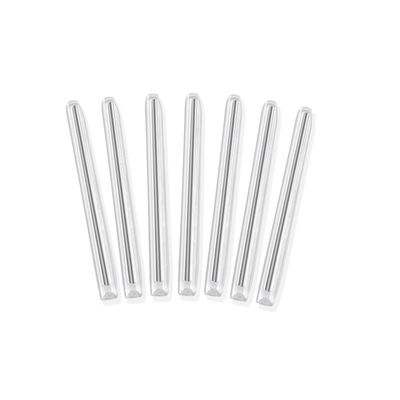

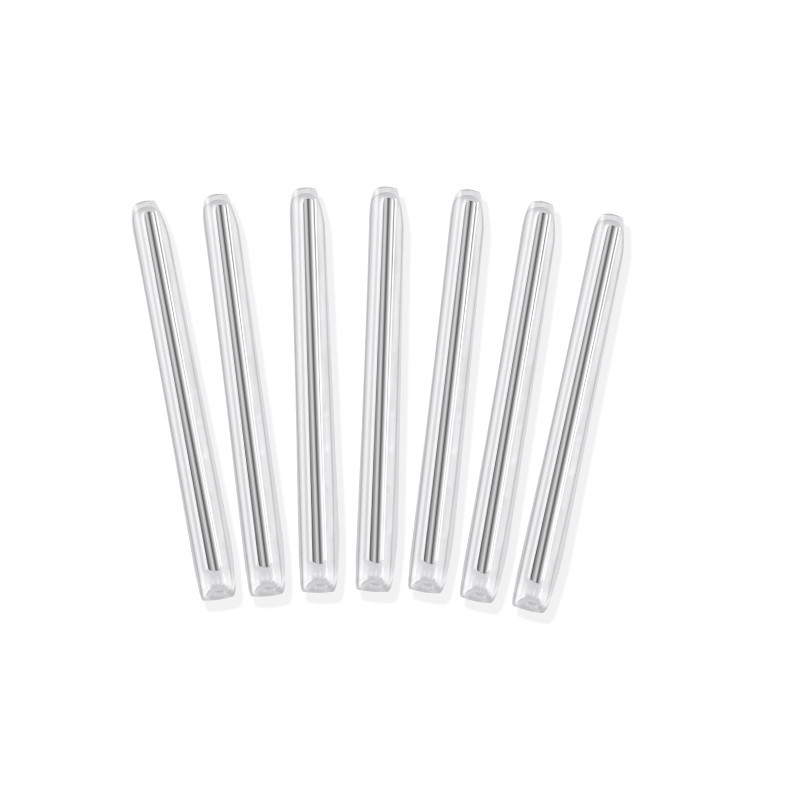

60mm 45mm 40mm 1.0mm EVA Fiber Heat Shrink Sleeves

Brand Name: YINGDA
Model Number: YDHS-6010
MOQ: 10000 PCS
Price: Negotiable
Delivery Time: 3days
Payment Terms: Western Union, T/T, MoneyGram
Detail Information
Place of Origin:
china
Certification:
ISO
Color:
Transparent
Inner Tube Material:
EVA
Outer Tube Material:
EVA+PE
Total Length:
60mm
Needle Diameter:
1.0mm
Needle Material:
304
Outer Tube Diameter After Shrink:
2.4±0.1mm
Inner Tube Diameter:
1.4±0.1mm
Working Temperature:
55 – 105 ℃
Shrinkage Temperature:
90-120 ℃
Packaging Details:
100pc/bag, 29800pcs/carton
Supply Ability:
500000PCS a month
Highlight:

1.0mm Fiber Heat Shrink Sleeves

,

40mm Fiber Heat Shrink Sleeves

,

45mm Fiber Heat Shrink Sleeves

Product Description

60mm 45mm 40mm 1.0mm EVA Fiber Heat Shrink Sleeves


Fiber Optical Splicing Heat shrinkable Protection Tube Sleeve EVA 60mm 45mm 40mm 1.0mm Stainless Steel 304

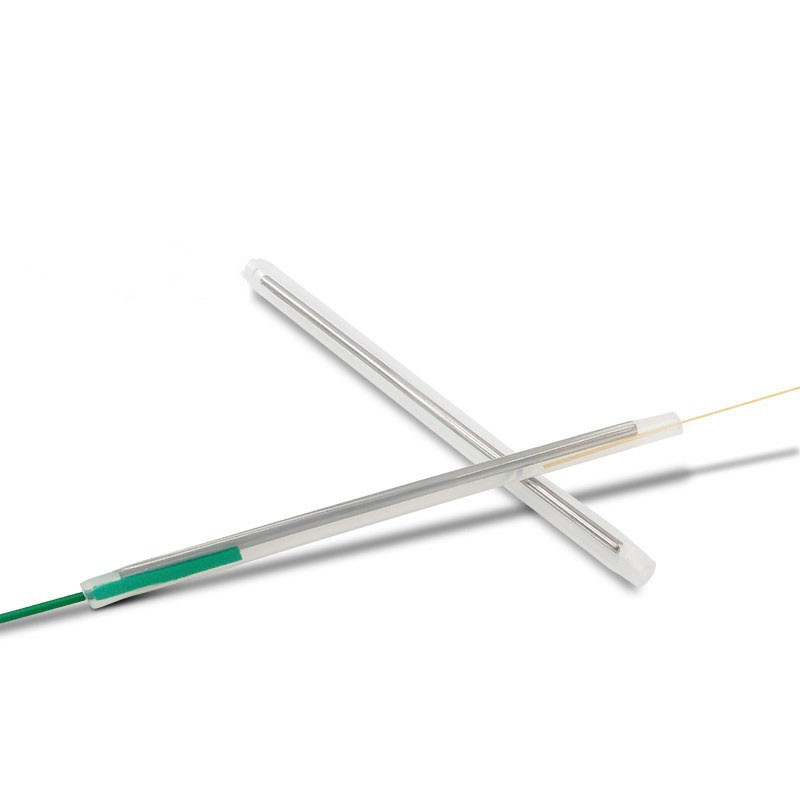

The optical fiber heat shrinkable tube is specially designed and composed of cross-linked polyolefin, hot-melt tube and reinforced stainless steel needle, it can protect the connection point and improve the mechanical strength. The length can be from 25mm to 61mm, the needle is stainless steel 304, the length can be 0.5mm, 1.0mm 1.8mm 1.5mm or bigger. If any special specification, please contact us for details.
60mm 45mm 40mm 1.0mm EVA Fiber Heat Shrink Sleeves 0

Order information




Model Length L Outer tube O.D. after shrink Inner tube D Stainless steel needle diameter d*needle length l
YDHS-6012 60±0.5 2.6±0.1 1.5±0.1 1.2±0.05*55±0.1
YDHS-4512 45±0.5 2.6±0.1 1.5±0.1 1.2±0.05*40±0.1
YDHS-4012 40±0.5 2.6±0.1 1.5±0.1 1.2±0.05*35±0.1
YDHS-6015 60±0.5 2.9±0.1 1.6±0.1 1.5±0.05*55±0.1
YDHS-4515 45±0.5 2.9±0.1 1.6±0.1 1.5±0.05*4±0.1
YDHS-4015 40±0.5 2.9±0.1 1.6±0.1 1.5±0.05*35±0.1
YDHS-6010 60±0.5 2.4±0.1 1.4±0.1 1.0±0.05*55±0.1
YDHS-4510 45±0.5 2.4±0.1 1.4±0.1 1.0±0.05*40±0.1
YDHS-4010 40±0.5 2.4±0.1 1.4±0.1 1.0±0.05*35±0.1
YDHS-4010-S 40±0.5 2.2-2.3 1.2±0.1 1.0±0.05*40±0.1
YDHS-2505 25.5±0.3 1.3-1.4 0.5±0.05 0.5±0.05*24.3±0.1
YDHS-6010-BD 60±0.5 3.7±0.1 3.9±0.1 1.0±0.05*55±0.1 (double needle)
YDHS-6010-BS 60±0.5 3.5±0.1 3.9±0.1 1.0±0.05*55±0.1 (single needle)
YDHS-4510-BD 45±0.5 4.5±0.1 3.9±0.1 1.0±0.05*40±0.1 (double needle)
YDHS-4510-BS 45±0.5 4.5±0.1 3.9±0.1 1.0±0.05*40±0.1 (single needle)
YDHS-6010-S 60±0.5 2.2-2.3 1.2±0.1 1.0±0.05*55±0.1




Features

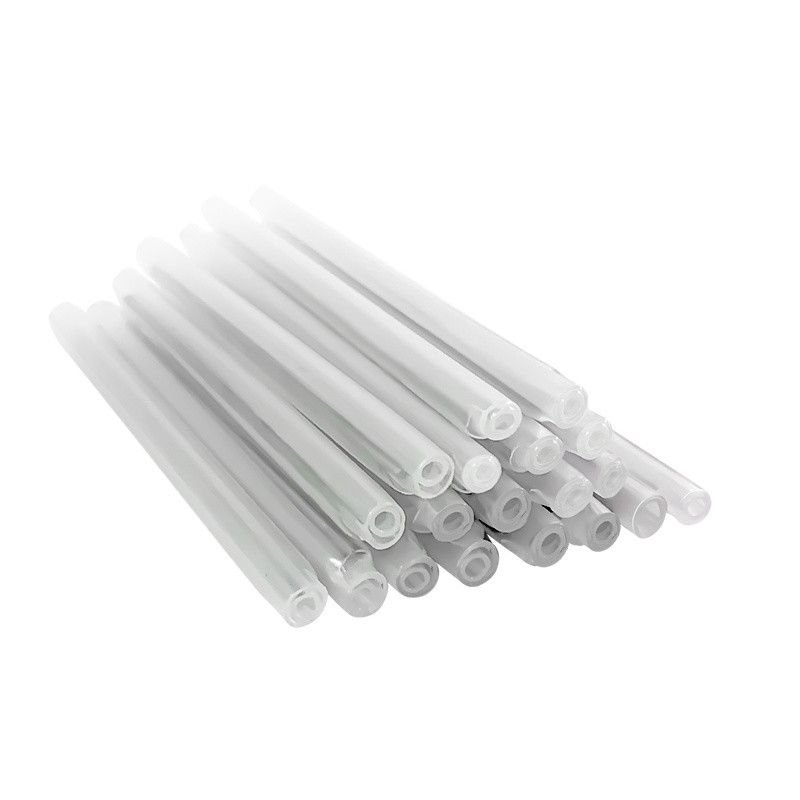

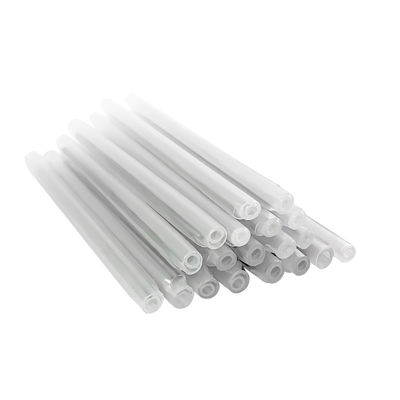

Heat shrinkable outer tube, hot melt inner tube (antistatic raw material formula production) high transparency, non stick wall, melt fiber fast, no bubble, continuous fiber.
60mm 45mm 40mm 1.0mm EVA Fiber Heat Shrink Sleeves 1

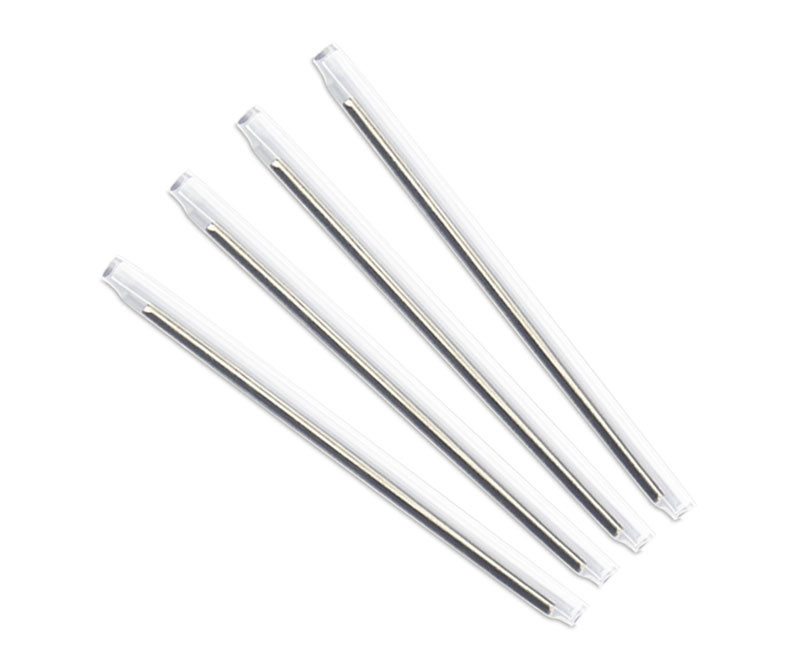

By using self-developed automatic equipment assembly production, the steel needle is in the middle, the hot spot is on the same side, and the length is uniform, which not only makes the product beautiful, but also brings convenience, safety and reliability to the optical fiber fusion construction.
60mm 45mm 40mm 1.0mm EVA Fiber Heat Shrink Sleeves 2

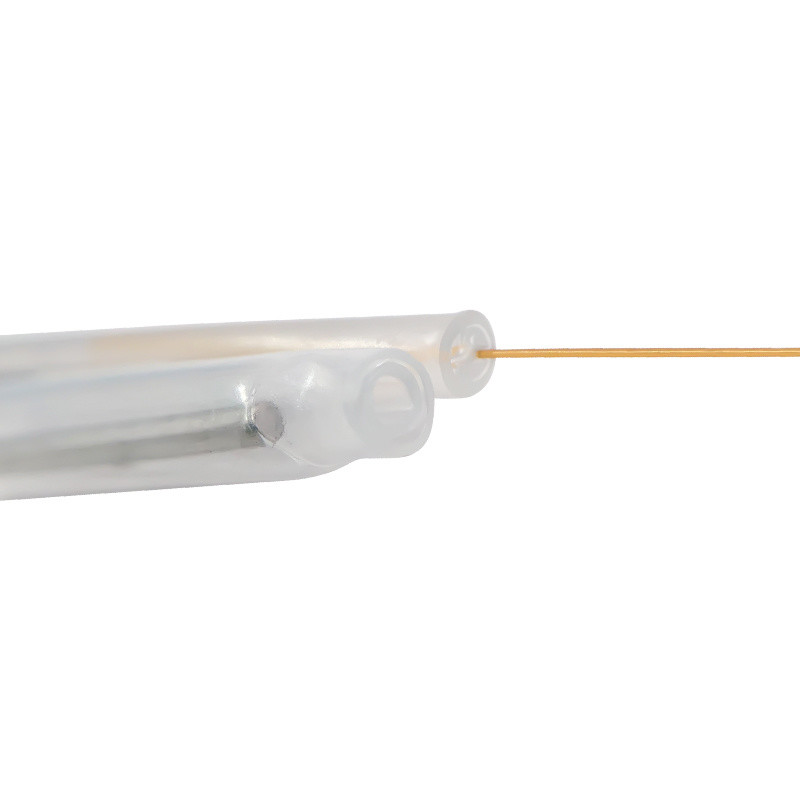

Stainless steel needle is bright, straight, chamfering at both ends, without burr, flame retardant and good insulation.

60mm 45mm 40mm 1.0mm EVA Fiber Heat Shrink Sleeves 3


The heat shrinkable speed is fast, after heat shrinkable, the sealing performance is good, so that the connection point has good temperature resistance and humidity performance.
60mm 45mm 40mm 1.0mm EVA Fiber Heat Shrink Sleeves 4



Package:10pcs/bag, 12pcs/bag, 24pcs/bag, 100pcs/bag, on customer request.

60mm 45mm 40mm 1.0mm EVA Fiber Heat Shrink Sleeves 5

Technical Indicators



Performance Test method Typical data
Tensile strength (MPA) ASTM D 2671 18
Elongation at break (%) ASTM D 2671 700
Density (g / cm2) ISO R1183D 0.94
Dielectric strength (kV / mm) IEC 243 20
Dielectric constant IEC 243 2.5
Length change (%) ASTM D 2671 +5
Working temperature 55 – 105 ℃
Shrinkage temperature 90-120 ℃


Application

  • Fiber to the home
  • Optical fiber communication system
  • Optical fiber test equipment
  • Cable TV network


How to use?
60mm 45mm 40mm 1.0mm EVA Fiber Heat Shrink Sleeves 6
