1310/1550nm SM Test Range 5m-60Km Mini OTDR 9 in 1 Tester with APC UPC SC/FC/ST/LC Adapter
  • name
  • name
  • name

1310/1550nm SM Test Range 5m-60Km Mini OTDR 9 in 1 Tester with APC UPC SC/FC/ST/LC Adapter

MOQ: 1 pc
Price: negotiable
Standard Packaging: 1pcs / set
Delivery Period: 5 days after payment
Payment Method: Western Union, T/T
Supply Capacity: 5,000 pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO SGS ROHS
Model Number
AUA900
Display::
3.5 Inch Color LCD
Data Interface:
Micro USB
External Storage:
TF Card
Power SupplyPolymer Li-Battery:
3.7V，4000mAh Adapter：5VDC，2A
Battery Life:
Standby＞20h；Measuring Time＞12h
Operating Temperature:
-10℃～+50℃
Storage Temperature::
-40℃～+70℃

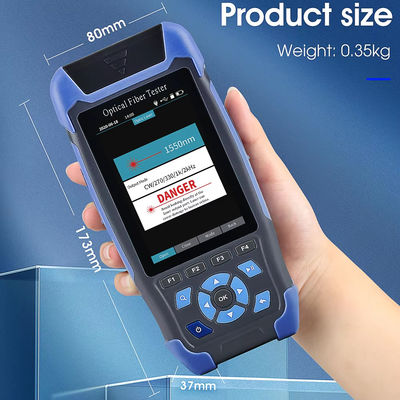

Size:
173mm×82mm×37mm
Relative Humidity::
0～95％Non Condensing
Highlight:

1550nm Mini OTDR

,

9 in 1 Mini OTDR

,

60Km Mini OTDR

Product Description

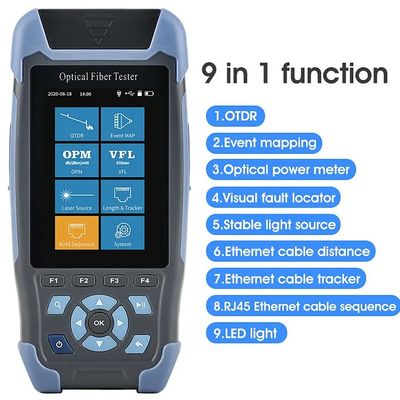

Mini OTDR 9 in 1 Mulit-Function Tester 1310/1550nm SM Test Rang 5m-60Km with APC UPC SC/FC/ST/LC Adapter



1310/1550nm SM Test Range 5m-60Km Mini OTDR 9 in 1 Tester with APC UPC SC/FC/ST/LC Adapter 0

Mini multi-fuction OTDR has compact structure and stable performance.This OTDR test wavelength are 1310/1550nm,dynamic Range are 24dB/22dB. Measurement distance is 5m~60km.Suit for the G.652 optical fiber.It built-in OPM ( 8 standdard wavelengths 850/980/1300/1310/1490/ 1550/1625/ 1650nm);Built OLS 1310/1550nm;Built-in VFL 10KM;Built-in RJ45 test .This Mini OTDR have most functions and most cost-effective on current market.

The application are mainly:maintenance and test of telecommunication line,cable manufacturer,test of FTTX.

Mini-Pro OTDR

  • Wavelength: 1310nm/1550nm±20nm
  • Fiber Type: G.652
  • Dynamic Range: 24dB/22dB
  • Event Blind Zone: 3m
  • ATT Blind Zone: 8m
  • Test Range: 5m~60km
  • Pulse Width: 3ns~10us
  • Ranging accuracy: ±(1m+ Sampling interval +0.005％×Test distance)
  • Loss accuracy: ±0.05dB/dB
  • Sampling Points: 16k~128k
  • Sampling resolution: 0.05m~8m
  • Reflection accuracy: ±3dB
  • Data Storage: Internal:≥600；External:TF Card
  • File format: SOR Standard file format

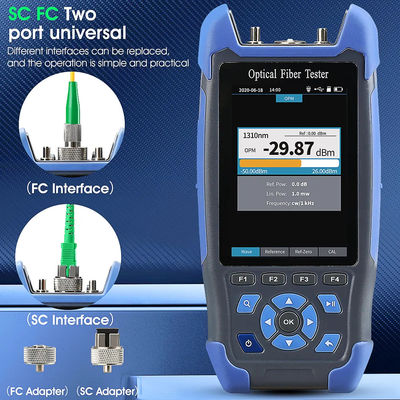

  • Connector: FC/UPC(Interchangeable SC,ST)

OPM

  • Wave Range: 800nm~1700nm
  • Interface Type: Universal Joint FC/SC/ST
  • Test Range: -50dBm～+26dBm
  • Uncertainty: ±5%
  • Frequency Identification: CW/270/330/1k/2kHz
  • Calibration wavelength: 850/980/1300/1310/1490/1550/1625/1650nm



OLS

  • LD Type:FP-LD
  • Wavelength:1310nm/1550nm±20nm
  • Output Power: ≥-5dBm
  • Modulation Frequency: 270/330/1k/2kHz
  • Stability: CW,±0.5dB/15min (Test after 15 minutes of preheating)
  • Connector: FC/UPC(Interchangeable SC,ST)

VFL

  • Wavelength: 650nm±20nm
  • VFL: ≥10KM
  • Mode: CW/1Hz/2Hz
  • Connector: FC/SC/ST

RJ45 Cable Length Measurement

  • Test Range: 300m

1310/1550nm SM Test Range 5m-60Km Mini OTDR 9 in 1 Tester with APC UPC SC/FC/ST/LC Adapter 1

1310/1550nm SM Test Range 5m-60Km Mini OTDR 9 in 1 Tester with APC UPC SC/FC/ST/LC Adapter 2

1310/1550nm SM Test Range 5m-60Km Mini OTDR 9 in 1 Tester with APC UPC SC/FC/ST/LC Adapter 3

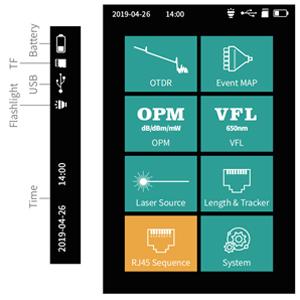

Main Interface

Turn on and enter the main menu.There are eight functional modules. Select module by pressing the direction keys, and then press the "OK" key to enter the corresponding functional interface.

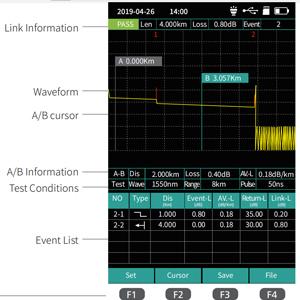

Mini-Pro OTDR

Link quality and information can viewed. After the test is completed, Link information includes length, total loss and number of events.Detailed event information can be viewed from the event list.

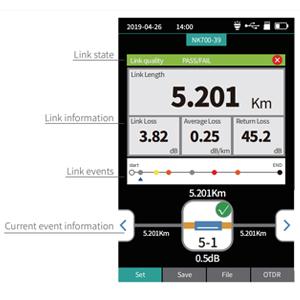

iLOM(Event Map)

The function can be tested automatically by one key, and the information of the length of the link,

the type of event point and the position of breakpoint can be displayed in a graphical form. The result is easy is clear and easy to understand.



1310/1550nm SM Test Range 5m-60Km Mini OTDR 9 in 1 Tester with APC UPC SC/FC/ST/LC Adapter 4

1310/1550nm SM Test Range 5m-60Km Mini OTDR 9 in 1 Tester with APC UPC SC/FC/ST/LC Adapter 5

1310/1550nm SM Test Range 5m-60Km Mini OTDR 9 in 1 Tester with APC UPC SC/FC/ST/LC Adapter 6

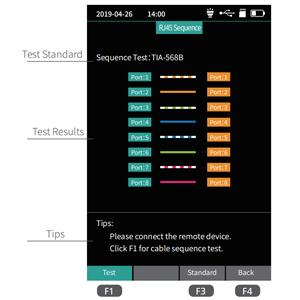

RJ45 Sequence

RJ45 line sequence measurement.

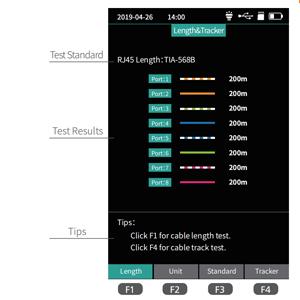

RJ45 Line Length & LineTracker

RJ45 Line tracking

Used for RJ45 cable length testing and wire

tracker.After the line-finding function is activat-ed, the cable being searched is touched by the distal end of the line-searching, and the sound of continuous "drops and drops" is heard.

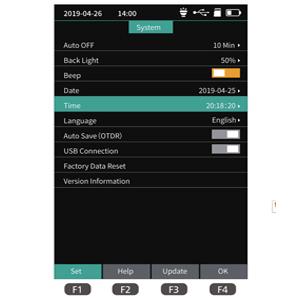

System settings

Set up automatic shutdown, backlight brightness time,language,upgrade and other information.
