Telecommunications and Optical Cable Fiber Tool Kits High Precision Fiber Cutting Cleaver
  • name
  • name
  • name
  • name

Telecommunications and Optical Cable Fiber Tool Kits High Precision Fiber Cutting Cleaver

MOQ: 1 pc
Price: negotiable
Standard Packaging: 1pcs / set
Delivery Period: 5 days after payment
Payment Method: Western Union, T/T
Supply Capacity: 5,000 pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO SGS ROHS
Model Number
SKL-6C
Dimension:
75*65*57mm
Suitable Fiber:
Single Core (0.25-0.9) 12core
Cutting Length:
9-16mm(ø0.25), 10-16mm(ø0.25)
Cutting Life:
48000 Times
Ribbon Core ~2.5flexer:
18mm
Cutting Angle:
About 0.8°
Material:
Metal
Highlight:

Optical Cable Fiber Tool Kits

,

Telecommunications Fiber Tool Kits

,

High Precision Fiber Cutting Cleaver

Product Description

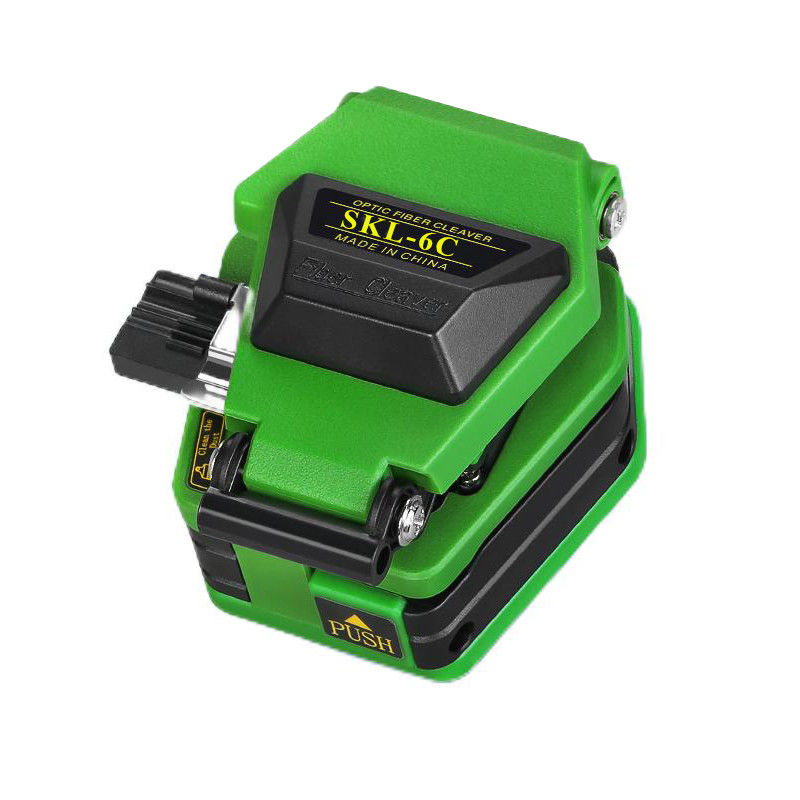

SKL-6C Fiber Cleaver



6C series high precision optical fiber cutter is the new type of optical fiber cutter, angle, fiber excellent fracture surface, the operation is simple, the use is more convenient, greatly improving the working efficiency.



Fiber Optic Cleaver Feature



  • Three in one fiber clamp, capable of cutting bare fiber, pigtail and fiber optic drop cables, with built-in scales and no need for a length gauge;
  • High precision cutting blade, smooth cutting, continuous fiber, can cut 48000 times;
  • 16 tungsten steel cutting end faces, long service life;
  • High quality slide rail, mechanical cover, automatically returns to its original position after opening;
  • Independently packaged, comes with adjustable wrench, English manual, anti drop bag and other tools;
  • Fiber optic cable stripping pliers, red light pens, and other FTTH cold junction kit tools can be configured.





Fiber Optic Cleaver Application

  • Telecommunications Engineering and repair
  • CATV engineering and maintenance
  • Optical cable manufacturers



Optical Cleaver Specification



Model SKL-6C

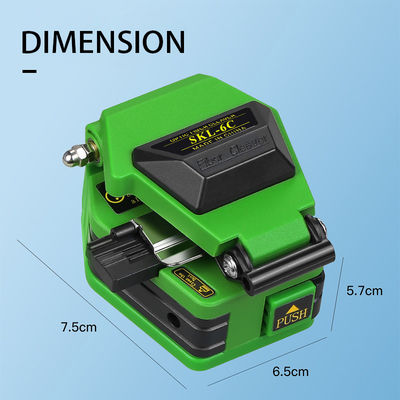

Dimension (W*D*H) 75*65*57mm
Bare fiber diameter 125um
Cutting angle About 0.80
Application of fiber core number Single core (0.25-0.9) 12core
Cutting length 9-16mm(ø0.25), 10-16mm(ø0.25)
Cutting life 48000 times
Ribbon core ~2.5flexer 18mm
Net weight About 230g
Color Black, green, purple



Telecommunications and Optical Cable Fiber Tool Kits High Precision Fiber Cutting Cleaver 0

Telecommunications and Optical Cable Fiber Tool Kits High Precision Fiber Cutting Cleaver 1


Optical Cleaver Package:
1 x Fiber Optic Cleaver
1 x Fiber Optic Cleaver Bag
1 x Instructions
1 x Large adjustable knife
1 x Small adjustable knife

Telecommunications and Optical Cable Fiber Tool Kits High Precision Fiber Cutting Cleaver 2



SKL-6C Fiber Cleaver can be different colors like black, purple or green.

Telecommunications and Optical Cable Fiber Tool Kits High Precision Fiber Cutting Cleaver 3Telecommunications and Optical Cable Fiber Tool Kits High Precision Fiber Cutting Cleaver 4Telecommunications and Optical Cable Fiber Tool Kits High Precision Fiber Cutting Cleaver 5
