1.5mm Fiber Optic Cable Jacket Slitter Fiber Tool Kits

1.5mm Fiber Optic Cable Jacket Slitter Fiber Tool Kits

  • High Light

    1.5mm Fiber Optic Cable Jacket Slitter

    ,

    3mm Fiber Optic Cable Jacket Slitter

    ,

    3mm Optical Cable Jacket Slitter

  • Material
    Plastic
  • Blade Material
    Alloy
  • Color
    Black
  • Strip Diameter
    1.5-3.3mm
  • Groove Quantity
    4pcs
  • Size
    50*40*21mm
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO
  • Model Number
    YDLS-001
  • Minimum Order Quantity
    1PC
  • Price
    NEGO
  • Packaging Details
    1pc/box
  • Delivery Time
    3days
  • Payment Terms
    T/T, Western Union, MoneyGram, L/C
  • Supply Ability
    10000pcs/month

1.5mm Fiber Optic Cable Jacket Slitter Fiber Tool Kits

1.5mm Fiber Optic Cable Jacket Slitter Fiber Tool Kits



Fiber Optic Mid Span Cable Loose Longitudinal Buffer Tube Slitter Jacket Stripper Cutter

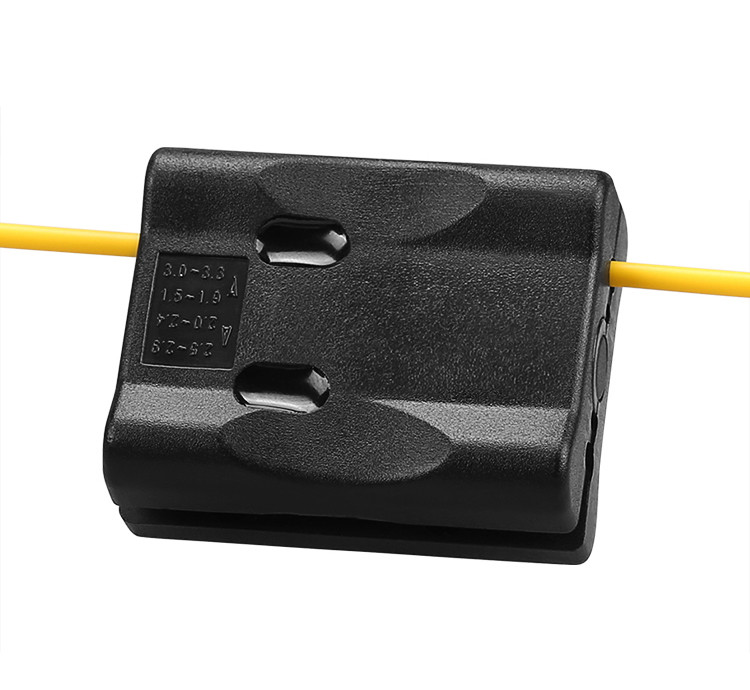

Fiber optic cable jacket slitter is an efficient and indispensable tool for fiber optic cable termination. The stripping size factory is preset without any adjustment when operation, it is a simple tool for quick and simple removal of outer sheath of most fiber with diameters of 1.5mm to 3.3mm. Fiber is simply placed in one of the 4 preset grooves and device is pulled along the length, slicing sheath into two halves.


Technical Specification



MODEL YDLS-001
Tool size 50x40×21mm
Cable diameter range 1.5-3.3mm
Cable size

Ø1.5~Ø1.9mm

Ø2.0~Ø2.4mm

Ø2.5~Ø2.9mm

Ø3.0~Ø3.3mm

Blade material Alloy
Net weight 35g
Pack weight 50g
Package size 64x64x25mm
Mirror adjustment Manual
Exterior Smooth
Color Black



Features



Light weight, compact size, cost effective, double-sided opening design, easy to draw fiber and operate;

1.5mm Fiber Optic Cable Jacket Slitter Fiber Tool Kits 0

Sharp blade, made of alloy blade, upper and lower double blade, neat incision, convenient and labor-saving, meanwhile, tripping size factory is preset, no need to adjust;

1.5mm Fiber Optic Cable Jacket Slitter Fiber Tool Kits 1

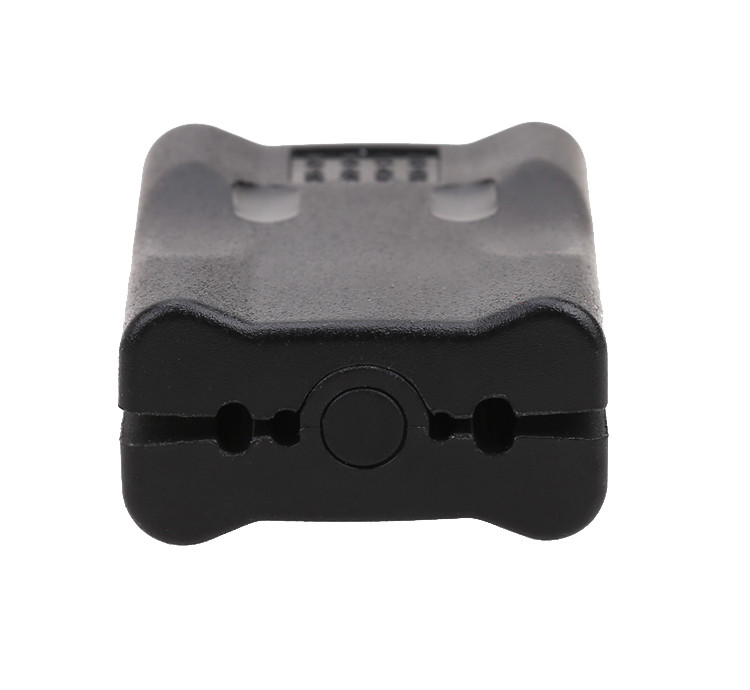

Product surface groove design, not only anti-skid, grip feeling is more comfortable, the double cutting groove designed by the central shaft makes the product use longer.

1.5mm Fiber Optic Cable Jacket Slitter Fiber Tool Kits 2



Package: 1pc / inner box with foam around to protect the box during long term tramsporation.

1.5mm Fiber Optic Cable Jacket Slitter Fiber Tool Kits 3
