Mini 2.1X 16 Mm FTTH Drop Cable Stripper 1 Core 2 Core Carbon Steel Material

Place of Origin CHINA
Brand Name yingda
Certification ISO
Model Number YDCS-21
Minimum Order Quantity 1pc
Price negotiable
Packaging Details 1pc/individual package
Delivery Time 3days
Payment Terms Western Union, T/T, L/C, MoneyGram
Supply Ability 10000pcs/month
Product Details
Fiber Count 1core, 2core Fiber Type SM, MM
Material Carbon Steel Application 2.0*1.6mm Or2.1*1.6 Ftth Flat Drop Cable
Color Blue Handle Material PVC
High Light

FTTH Drop Cable Stripper

,

2.1X 16 Mm Drop Cable Stripper

,

FTTH fiber optic cable stripper

Leave a Message
Product Description

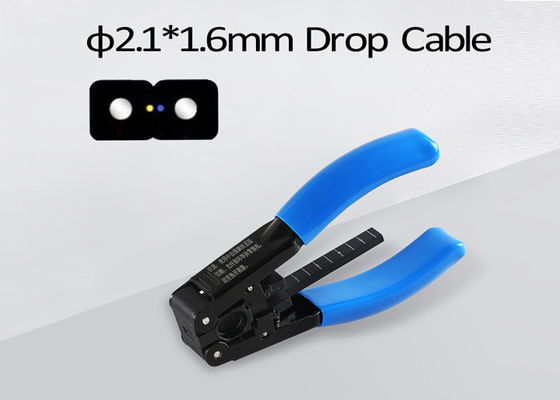

Mini 2.1X 16 Mm FTTH Drop Cable Stripper 1 Core 2 Core Carbon Steel Material



Mini 2.1*16mm FTTH Figure-8 Bufferfly Drop Cable Stripper Fiber Optic Plier Steel Black 2x1.6mm



At present, due to the wide application and promotion of optical fiber, all kinds of fiber to home projects need to use ftth drop cable. There are corresponding drop cable stripping pliers for ordinary 2x3mm drop cable, but there is no 2x1.6mm stripper with a slightly smaller volume. In view of this demand, our company has specially developed a Mini drop cable stripper, which can help us peel optical fiber very well and quickly to meet different customer needs.

Mini 2.1X 16 Mm FTTH Drop Cable Stripper 1 Core 2 Core Carbon Steel Material 0

Features

  1. The newly upgraded spring makes fiber stripping easier and labor-saving without damaging the optical fiber
  2. Ergonomic design, easy to peel off the fiber core, and the handle is more comfortable to grasp
  3. Upper stripper handle, lower stripper handle, scale, cable outlet, fixed blade base, cable inlet
  4. Non slip handle, comfortable to hold
  5. Light weight, small volume, convenient operation and portability
  6. Clear scale line design, accurate opening, no waste of materials.

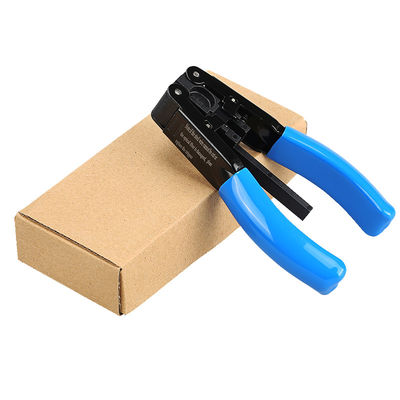

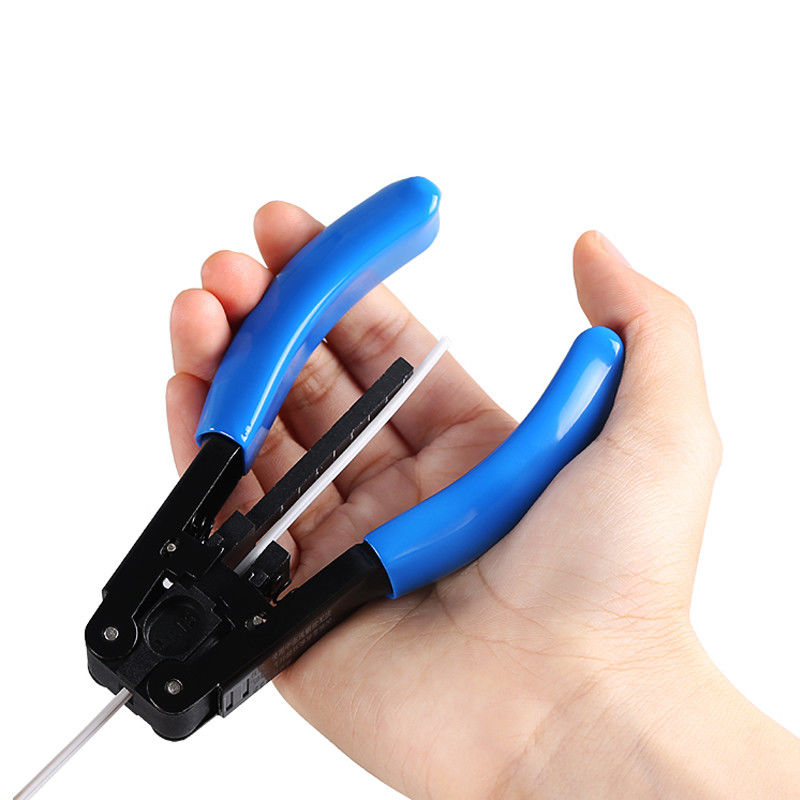

Mini 2.1X 16 Mm FTTH Drop Cable Stripper 1 Core 2 Core Carbon Steel Material 1Mini 2.1X 16 Mm FTTH Drop Cable Stripper 1 Core 2 Core Carbon Steel Material 2



Technical parameter

Applicable fiber 1core, 2core
Applicable cable 2.1mm(W)*1.6mm (H) drop cable
Fiber coating diameter Φ250um & φ900um
Fiber cladding diameter 125um
Outer dimension 65mm(W)x120mm(D)x20mm(H)
Color Black+blue
Material steel

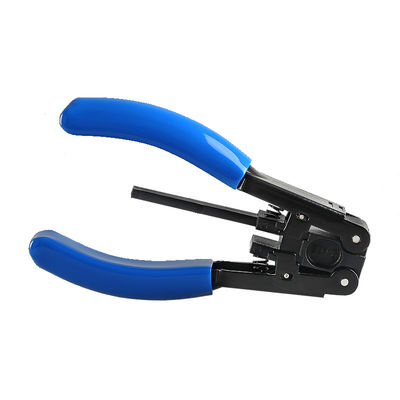

Mini 2.1X 16 Mm FTTH Drop Cable Stripper 1 Core 2 Core Carbon Steel Material 3

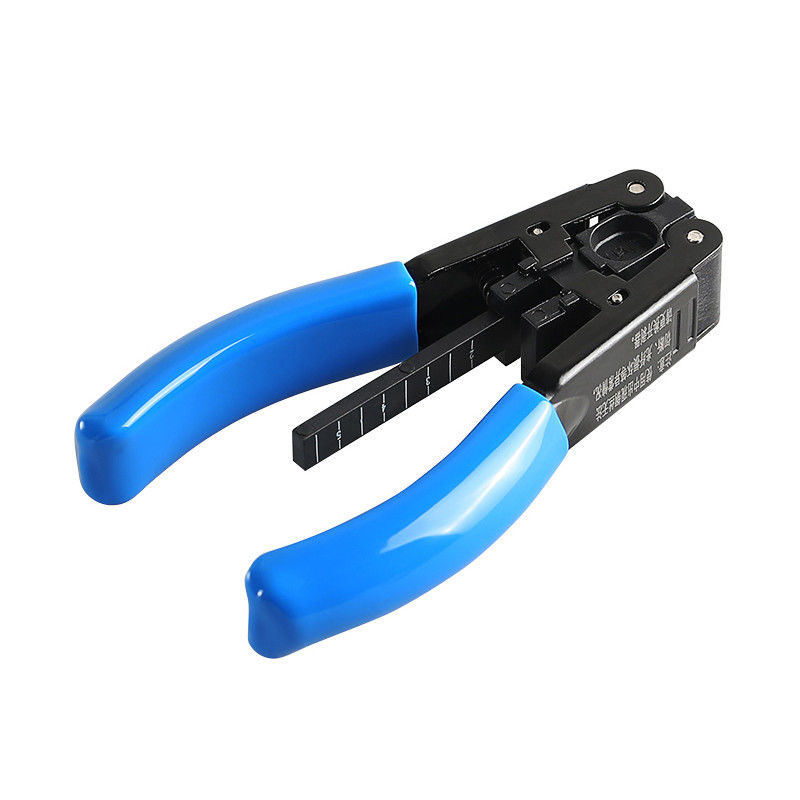

Mini 2.1X 16 Mm FTTH Drop Cable Stripper 1 Core 2 Core Carbon Steel Material 4

  • Smooth cable inlet and outlet in a straight line, which ensure the fiber no bend, good protection without damaging optical fiber
  • 2.1 * 1.6mm indication
  • Clear scale 2345 clear mark to be seen by human eye, easy to operate and cut fiber on demand.
  • The cable outlet hole is next to the scale, which is convenient for measurement and visual inspection.
  • Upgraded spring for longer service life



Order information -- YDCS-CT



YDCS - Cable type=CT

YD=yingda

CS=cable stripper



21=2.1*1.6mm

23=2.0*3.0mm

01=kelvar scissor

02=CFS-2 250um

03=CFS-3 0.9mm+250um

For example:

YDCS-21 -- cable stripper for 2.1*1.6mm cable
