1 Core Field Installable Connector SC APC FTTH GPON Quick Splice Connector

1 Core Field Installable Connector SC APC FTTH GPON Quick Splice Connector
1 Core Field Installable Connector SC APC FTTH GPON Quick Splice Connector
1 Core Field Installable Connector SC APC FTTH GPON Quick Splice Connector 1 Core Field Installable Connector SC APC FTTH GPON Quick Splice Connector 1 Core Field Installable Connector SC APC FTTH GPON Quick Splice Connector 1 Core Field Installable Connector SC APC FTTH GPON Quick Splice Connector 1 Core Field Installable Connector SC APC FTTH GPON Quick Splice Connector

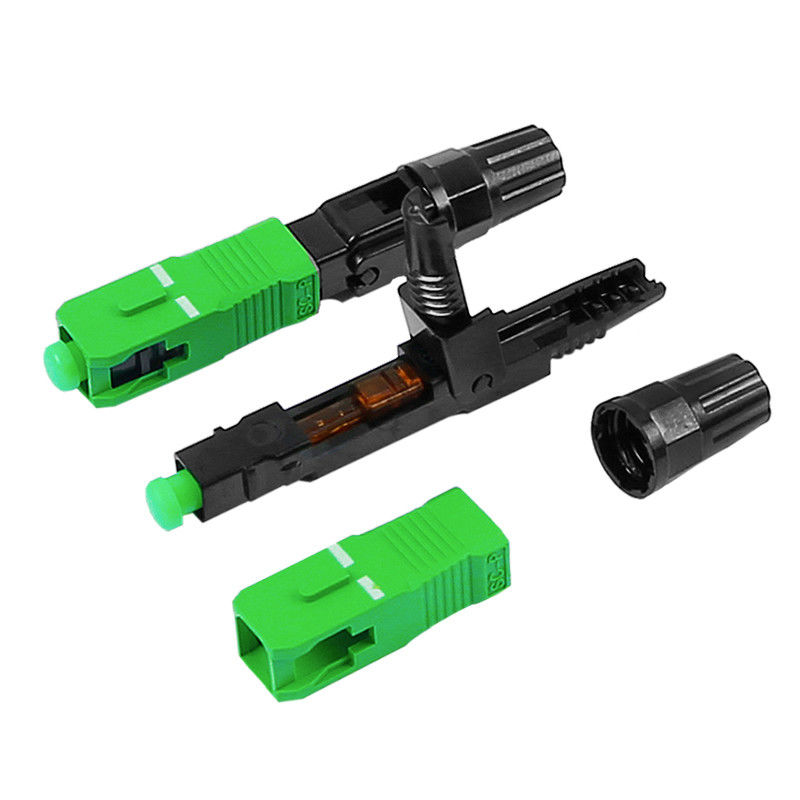

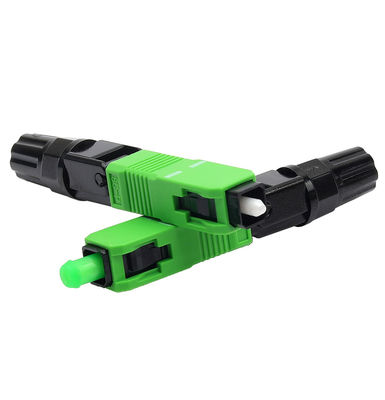

Large Image :  1 Core Field Installable Connector SC APC FTTH GPON Quick Splice Connector

Product Details:
Place of Origin: china
Brand Name: YINGDA
Certification: ISO
Model Number: YDFIC-D-SA
Payment & Shipping Terms:
Minimum Order Quantity: 1000pc
Price: negotiable
Packaging Details: 10pc / blister box
Delivery Time: 7 working days
Payment Terms: T/T, Western Union

1 Core Field Installable Connector SC APC FTTH GPON Quick Splice Connector

Description
Material: PEI Color: Green
Length: 60mm Or 55mm Fiber Mode: Nomomode 9/125um
Insertion Loss: <0.3dB Average, Max. 0.5dB Return Loss: >65dB
Ferrule Type: Upc Package: Blister Box
Spare Parts: Length Fix Tool, User Manual Applicable: Fiber To The Home, FTTH
Cable Applicable: 2.0*3.0mm Drop Cable, 2.0mm,3.0mm Round Cable Tools Needed: Fiber Cleaver, Cable Stripper, Alcohol Cloth, Miller Plier
High Light:

1 Core Field Installable Connector

,

GPON Quick Splice Connector

,

SC APC Field Installable Connector

1 Core Field Installable Connector SC APC FTTH GPON Quick Splice Connector



1Core SC APC FTTH GPON Field Mecahncial Cold Splice Connector Green Quick Installation PEI





Optical fiber fast connector is a kind of connector which can solve the problem of ultra long distance wiring and fiber to the home project, it make fiber terminations fast, easy and reliable and do terminations without any hassles and require no epoxy, no polishing, no splicing, no heating and can achieve similar excellent transmission parameters as standard polishing and splicing technology. We can greatly reduce the assembly and set up time. The pre-polished connectors are mainly applied to FTTH cable in FTTH projects, directly in the end user site.

1 Core Field Installable Connector SC APC FTTH GPON Quick Splice Connector 0

Technical parameter:



Model YDFIC-D-SA-L YDFIC-D-SA-S
Dimension 60mm*9mm 55mm*9mm
Insertion loss <0.5dB, average≤0.3dB
Return loss ≥50dB
Fiber type Single mode, multimode
Fiber diameter 0.9mm, 2.0mm, 3.0mm, 2.0*3.0mm
Working temperature -40 ~+750C
Application Fiber to the home
Dimension 60mm*9mm 55mm*9mm
Standards ISO9001





Pack information:

100pcs/each inner box, 1000pcs / carton box,

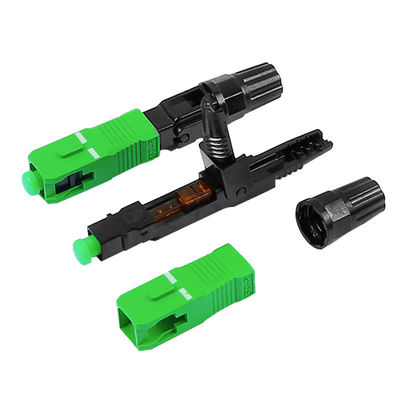

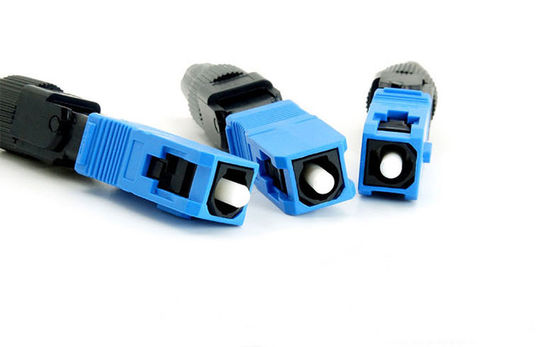

1 Core Field Installable Connector SC APC FTTH GPON Quick Splice Connector 11 Core Field Installable Connector SC APC FTTH GPON Quick Splice Connector 21 Core Field Installable Connector SC APC FTTH GPON Quick Splice Connector 3

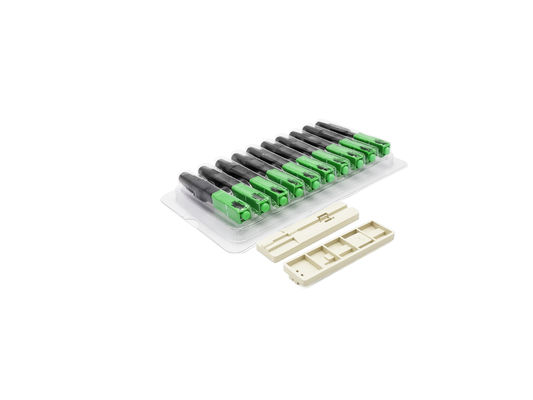

INNER PACK:  10pcs/blister box

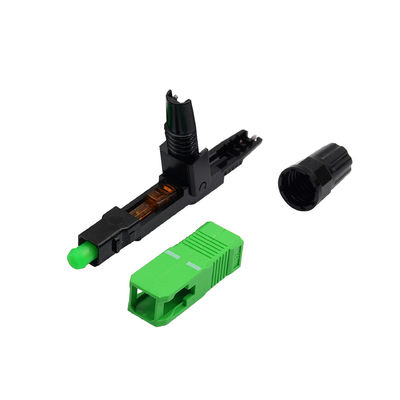

1 Core Field Installable Connector SC APC FTTH GPON Quick Splice Connector 41 Core Field Installable Connector SC APC FTTH GPON Quick Splice Connector 51 Core Field Installable Connector SC APC FTTH GPON Quick Splice Connector 6





Quality assurance:

Four times of grinding and two times of quality inspection

    Step 1: 30um grinding

    Step 2: 9um grinding

    Step 3: 1 um grinding

    Step 4: transparent polishing

    Step 5: Optical fiber endface detection

    Step 6: Insertion loss, return loss detection

1 Core Field Installable Connector SC APC FTTH GPON Quick Splice Connector 7

Internal structure and working principle:



1 Core Field Installable Connector SC APC FTTH GPON Quick Splice Connector 8



Features

  • Each ferrule has been tested within 0.5dB of insertion loss, reach TELECOM standard;
  • Adopt Three Circle A-class ceramic ferrule, improves product stability, low loss and small change;
  • Large scale production, mature technology, exquisite, which ensure the quality of connectors;
  • It has strong practicability and can be reused for more than 15 times;
  • Stable operation performance, low insertion loss, low use cost, low maintenance rate and fast installation speed;
  • Each 100pcs will equip with 1pc length fixing device;
  • Humanized structure design: preset limit point of drop cable at the boot, and automatically generate a small micro bend according to the correct cutting length of the product (see below figure). The micro bend indicates that the optical fiber has been in good contact with the embedded optical fiber, and the micro bend must exist, but not too large, otherwise the loss during the period will be affected.



What is the difference of long and short type?

The long type is flat to lay the drop cable and the short type is vertical to lay the drop cable

1 Core Field Installable Connector SC APC FTTH GPON Quick Splice Connector 91 Core Field Installable Connector SC APC FTTH GPON Quick Splice Connector 10

Application:



Broadband campus network, Fiber to the home, Broadband limited TV, Intelligent broadband, Fiber to the building

1 Core Field Installable Connector SC APC FTTH GPON Quick Splice Connector 11



HOW TO USE?

The operation is simple, insert the optical fiber to the limit point, automatically generate a small amount of bending, keep your radian, do not straighten, screw the nut first and then lock the switch.



Step 1: take out the boot and put it into the drop cable

1 Core Field Installable Connector SC APC FTTH GPON Quick Splice Connector 12

Step 2: peel off the 5cm drop cable sheath with drop cable stripper

1 Core Field Installable Connector SC APC FTTH GPON Quick Splice Connector 13

Step 3: scrape the coating outside the length fixer with Miller pliers

1 Core Field Installable Connector SC APC FTTH GPON Quick Splice Connector 14

Step 4: wipe the fiber core with dust cloth

1 Core Field Installable Connector SC APC FTTH GPON Quick Splice Connector 15

Step 5: cut the core with a cutter

1 Core Field Installable Connector SC APC FTTH GPON Quick Splice Connector 16

Step 6: insert the fiber core into the fast connector to resist the embedded core

1 Core Field Installable Connector SC APC FTTH GPON Quick Splice Connector 17

Step 7: use the boot on the drop cable to clamp the cable

1 Core Field Installable Connector SC APC FTTH GPON Quick Splice Connector 18
