Indoor IP54 Wall Mounted White FTTH Fiber Optic Cable Termination Box Mini Compact 8 Cores SC Adapter

Indoor IP54 Wall Mounted White FTTH Fiber Optic Cable Termination Box Mini Compact 8 Cores SC Adapter

  • High Light

    fiber optic junction box

    ,

    fiber optic distribution box

  • Material
    ABS+PC
  • Color
    White
  • Dimension
    235*125*45 Mm
  • Application
    Ftth Indoor Use
  • Installation Method
    Wall Mount IP54
  • Drop Cable Size
    2*3 Mm Flat Drop Cable
  • Adapter Qty
    8 Pcs SC With Flange
  • Splitter Qty
    1 Piece 1:8 Optical Fiber Plc Spltiter
  • Place of Origin
    china
  • Brand Name
    yingda
  • Certification
    ISO, ROHS, SGS
  • Model Number
    FTB008A-108SA
  • Minimum Order Quantity
    100pcs
  • Price
    negotiable
  • Packaging Details
    1 pc / carton box, 20 pcs / master box
  • Payment Terms
    T/T, Western Union

Indoor IP54 Wall Mounted White FTTH Fiber Optic Cable Termination Box Mini Compact 8 Cores SC Adapter

Indoor IP54 Wall Mounted White FTTH Fiber Optic Cable Termination Box Mini Compact 8 Cores SC Adapter​



FTB008A plastic terminal box is indoor use only, mainly for distribution vertical cable from patch cord to end customer. It is placed on the wall or bottom of the floor cabinet niche by screws.



The entry 2 ports can use multi-fiber cable maximum diameter 12mm, 8 pcs outputs for ftth drop cable. Meanwhile, unique design of separate covers for the adapter and cable entry/exit ports makes it more safe, nice and humanity.



Specification:

Model FTB008A
Dimension 235*125*45 mm (H*W*D)
Cable ports 2 inlet, 8 outlet
Cable dimeter In:12 mm, out: 3 mm
Installation Wall mount
Max. Fusion 24 single fibers
Splice tray 1 pc splice tray, 1 pc splitter tray, 1 pc tray for fiber management
Material ABS+PC
Color Gray
PLC Splitter 1x2,1x4,1x8 mini module plc splitter 0.9mm 1meter
Max. Adapter 8 pcs SC simplex, shutter with flange all ok.

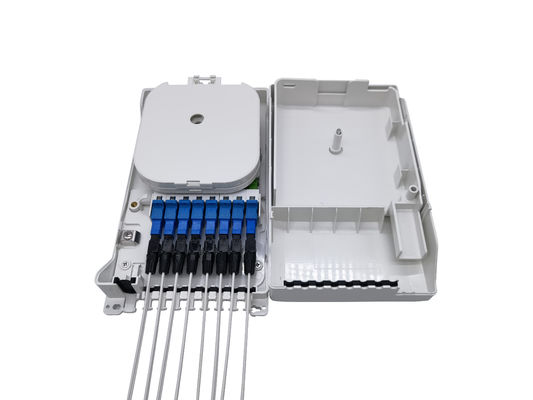

Indoor IP54 Wall Mounted White FTTH Fiber Optic Cable Termination Box Mini Compact 8 Cores SC Adapter 0

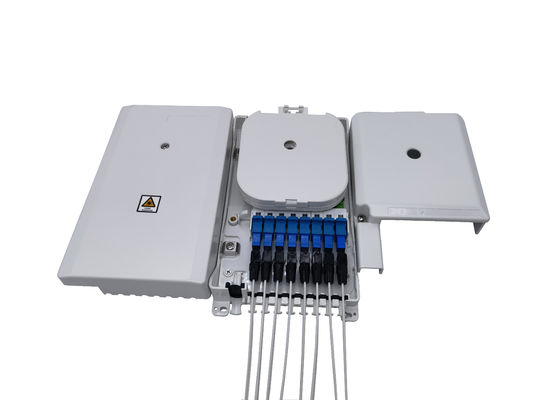

Indoor IP54 Wall Mounted White FTTH Fiber Optic Cable Termination Box Mini Compact 8 Cores SC Adapter 1

Indoor IP54 Wall Mounted White FTTH Fiber Optic Cable Termination Box Mini Compact 8 Cores SC Adapter 2

Standard accessory:

heatshrink protection sleeve, Cable nylon ties, wall mount expansion screws, spiral tube, etc



Optional accessory:

plc splitter, fast connector, adapter, drop cable, etc.
