SHENZHEN YINGDA PHOTONIC CO.,LTD.
Fiber Optic Connects The World
Product Details:
Payment & Shipping Terms:
|
Material: | ABS+PC | Color: | White |
---|---|---|---|
Capacity: | 2 Core | Adapter: | 1piece S/APC |
Size: | 116*70*25mm | Cable Diameter: | 2x5 Mm |
Application: | FTTH FTTX FTTB ODN LAN WAN Network | Cable Port: | 1in, 1out |
High Light: | FTTB Fiber Optic Distribution Box,FTTH Fiber Optic Distribution Box,FTTX Optical Distribution Box |

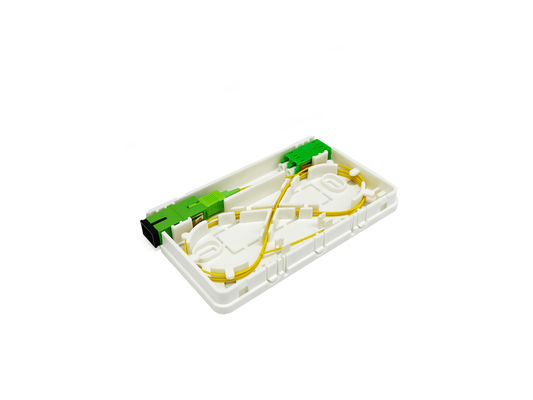

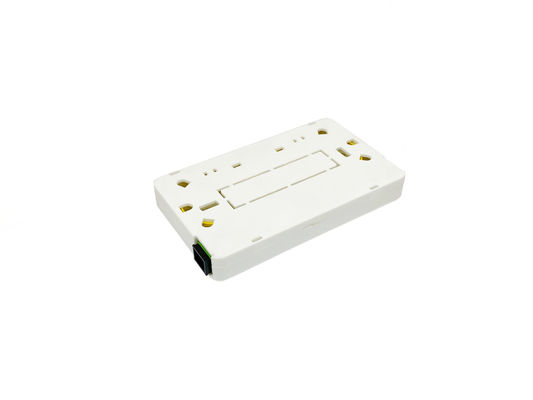

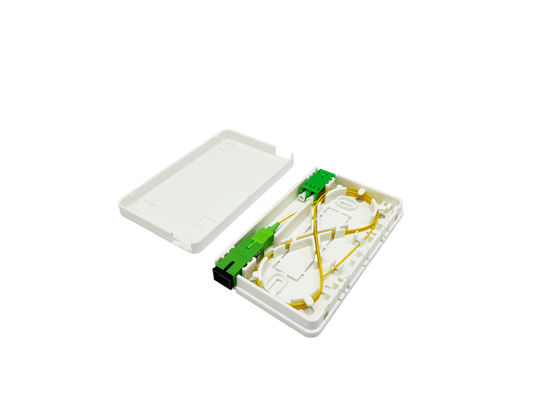

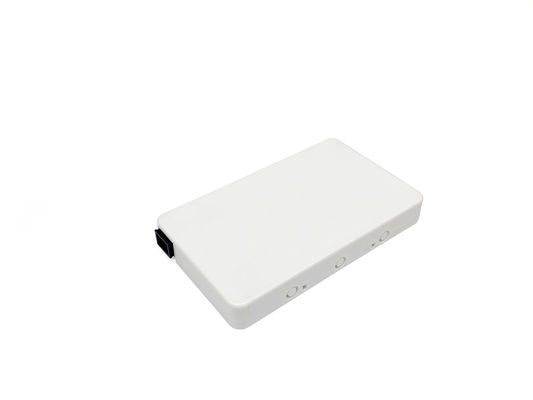

UL Flame Retartant FTTH FTTX FTTB Fiber Optic Distribution Box
FTTH Mini TOMA ROSETA 1 Port Adapter SC/APC CON Pigtail White UL Flame retartant
The products is used i n the end termination of residentisal building and villas to fix and splice with pigtails. It can be installed on the wall ,and adapt variety of optical connectors SC LC type.
Features
Used in FTTH indoor application,home or work area
Embedded surface frame, easy to install and disassemble
Provide users with optical access or data access
Suitable for 2 pcs SC adapters
Store surplus fiber inside,easy for operation
abs+pc plastic and ROHS proof
Compact size, light weight
Application
1. FTTH / FTTX system
2. LAN WAN MAN network
3. GPON ODN network
4. Telecommunication
Specification
Model |
Dimension (H*W*D) |
Cable diameter |
Cable ports |
Max capacity |
FTB86I |
116*70*25mm |
2.0*3.0mm drop cable or indoor cable 0.9mm,2.0mm,3.0mm |
1in,1out |
2core (single fiber) |
Pack information
Model |
Carton size/cm |
Carton qty/pc |
G.W./kg |
FTB86I |
52*34*41 |
390 |
24.3 |
Contact Person: Ms. sophie
Tel: +8618688982406
