ABS Flame Retardant Mini FTTx Fiber Optic Termination Box / 4 Port Fiber Optical Patch Panel

ABS Flame Retardant Mini FTTx Fiber Optic Termination Box / 4 Port  Fiber Optical Patch Panel
ABS Flame Retardant Mini FTTx Fiber Optic Termination Box / 4 Port  Fiber Optical Patch Panel ABS Flame Retardant Mini FTTx Fiber Optic Termination Box / 4 Port  Fiber Optical Patch Panel ABS Flame Retardant Mini FTTx Fiber Optic Termination Box / 4 Port  Fiber Optical Patch Panel ABS Flame Retardant Mini FTTx Fiber Optic Termination Box / 4 Port  Fiber Optical Patch Panel

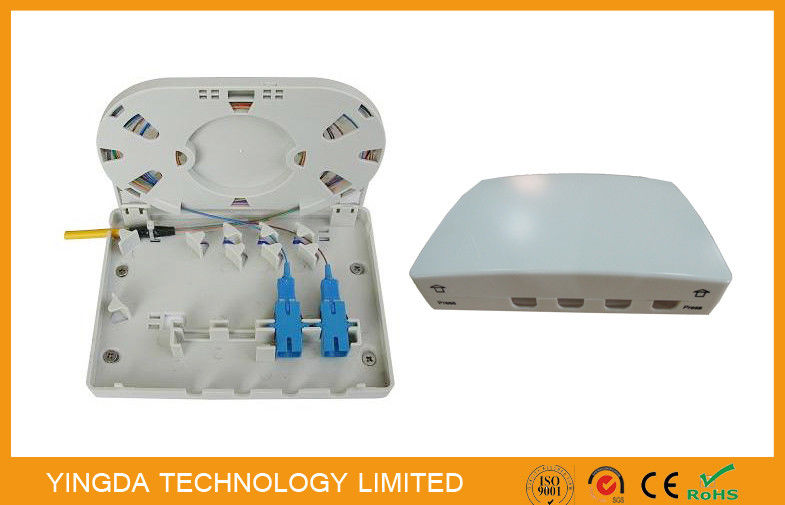

Large Image :  ABS Flame Retardant Mini FTTx Fiber Optic Termination Box / 4 Port Fiber Optical Patch Panel

Product Details:
Place of Origin: china
Brand Name: YINGDA
Certification: ISO SGS CE ROHS
Model Number: FTB104B
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: NEGOTIABLE
Packaging Details: 1 pc per box, 50pcs per carton shipping box
Delivery Time: 5-8 working days
Payment Terms: Western Union, T/T, L/C

ABS Flame Retardant Mini FTTx Fiber Optic Termination Box / 4 Port Fiber Optical Patch Panel

Description
Capacity: 4 Cores Single Fiber Cable Inport: 2 Cable Ports
Dimension: 150*110*30mm (l*w*d) Cable Diameter: 7-10mm
Material: ABS Anti-UV,flame Retartant Color: White
Application: Indoor Wall Mount Adapter: SC Simplex Adapter, LC Duplex Adapter
Cable Output: SC Adapter Output 4pcs
High Light:

fiber optic junction box

,

fiber optic distribution box

4 Port ABS Flame Retardant 4 Fibers Mini FTTx Fiber Optic Termination Box

Model: FTB104B





Features

  1. ABS flame retardant material
  2. Wall-mounted and rack mounted application.
  3. Self-clip design, easy to operate
  4. Suitable for SC, FC adapters
  5. Max capacity 4fibers
  6. Environmental Temperature:-25℃~40℃;
  7. Relative humidity: 30 degrees less than 85%
  8. Atmospheric pressure "70 ~ 106Kpa



Advantage:

1. Outdoor cable,drop cable,adapter,mechanical splice fix.

    Tensile strength >50N,fixed and sturdy.

2. Wall outside simplex drop cable input and single port output, indoor outdoor duplex drop cable

   input and duplex output, outdoor cable input single port output,outdoor cable input multi fiber

 pigtail output,outdoor cable input multi fiber drop cable output, multiple occasion and environment

demand application.

3. Optical properties: reserved fiber will not have additional attenuation after operation.

Redundant fiber optic cable in the box will not wreck in the external force.

4. Don't limit the households termination method, supports three kinds:

    4.1 hot melt (fusion splice) + pigtail

    4.2 mechanical splice + pigtail

    4.3 quick assembly connector directly termination



The cable splice straightly, users can freely choose to use current and future the most extensive

access methods, FTTB/FTTF+LAN (fiber to the building or floor), FTTH (fiber to the households),

FTTD (fiber to the desktop).





Accessories

  1. Expansion screws
  2. Nylon tie
  3. Buffer tube
  4. Pigtails
  5. Adapters SC LC
  6. Sleeve 40mm,45mm,60mm
  7. Plastic bag
  8. Cover



Specifications

Model

Dimension

(H*W*D)

Cable diameter

Cable ports

Max capacity

FTB104B

150*110*30mm

7-10mm

2in,4out

4core





Pack information

Model

Carton size/cm

Carton qty/pc

G.W./kg

FTB104B

39*24*33.5

40

8.3

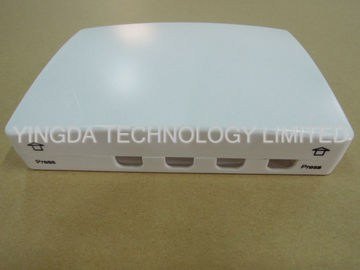

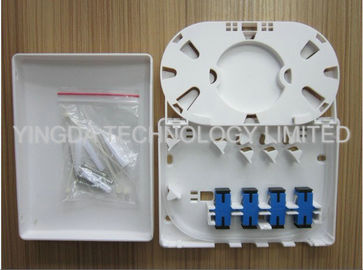

More product show:
