Outdoor 12 Core IP65 1x8 Splitter Optical Termination Box

Outdoor 12 Core IP65 1x8 Splitter Optical Termination Box

  • High Light

    1x8 Splitter Optical Termination Box

    ,

    IP65 Splitter Optical Termination Box

    ,

    12 Core 1x8 Splitter Box

  • Material
    Abs
  • Color
    Black
  • Max Fusion
    12 Core
  • Plc Splitter
    1x2 1X4 1X8 Mini Splitter
  • Adapter
    9 Pieces SC Coupler
  • Protection Level
    IP65
  • Mounting Method
    Pole Mount, Wall Mount
  • Fiber Type
    Single Mode, Multimode
  • Place of Origin
    china
  • Brand Name
    yingda
  • Certification
    ISO
  • Model Number
    FDB0208E
  • Minimum Order Quantity
    100pcs
  • Price
    negotiable
  • Packaging Details
    1pc/box, 10pcs/master box
  • Delivery Time
    7days
  • Payment Terms
    T/T, Western Union, MoneyGram
  • Supply Ability
    20000pcs per month

Outdoor 12 Core IP65 1x8 Splitter Optical Termination Box

Outdoor 12 Core IP65 1x8 Splitter Optical Termination Box



Outdoor 8Port Drop Cable Optical Termination Box for 1 to 8 Splitter SC IP65





This product integrates the optical fiber splicing, splitting and wiring. It can realize the cable direct or

branch connection and is suitable for client's terminal access. Connecting with the optical communication

equipment, through the adapter installed in the box, the drop cable leads the signal out and achieves

optical fiber distribution; also it applies to the protective connection of cables and pigtails; in addition,

optical cable can be spliced with home cable after splitting, to achieve signal transmission.





Features

  • Made of high quality and impact resistant plastics;
  • Accommodates 1:4 splitter ( 2 pcs) or 1:8 PLC splitter (1pc);
  • Anti-UV, anti-impact and waterproof;
  • Wall or pole mounted;
  • The toothed slots at the outlet can hold outgoing fibers, which avoids loosening or falling off by external force;
  • The box body has two opened-type inlets, which realizes operation without breaking the cable.;
  • The structural design of bottom box, reversible plate and inner cover make the cable inlet and outlet,
  • fiber splicing area and fiber storage area form a closed and independent partition, which is conducive
  • to manage and maintain.

Specification

Model FDB0208E
Dimension (A*B*C) 192*132*52 mm
Max.Capacity 8 cores (single fiber)
Cable ports 2 express port, 8 drop cable ports
Cable diameter In:Φ7-12mm, out:2*φ3mm
Splitter quantity 1x16 or 2pc 1x8 steel tube
Adapter quantity 9 SC
Color black /white
Protection level IP65



Standard accessory:

plastic key, expansion screws,F10 ~ F16 hoop,sleeve 40mm



Outdoor 12 Core IP65 1x8 Splitter Optical Termination Box 0Outdoor 12 Core IP65 1x8 Splitter Optical Termination Box 1

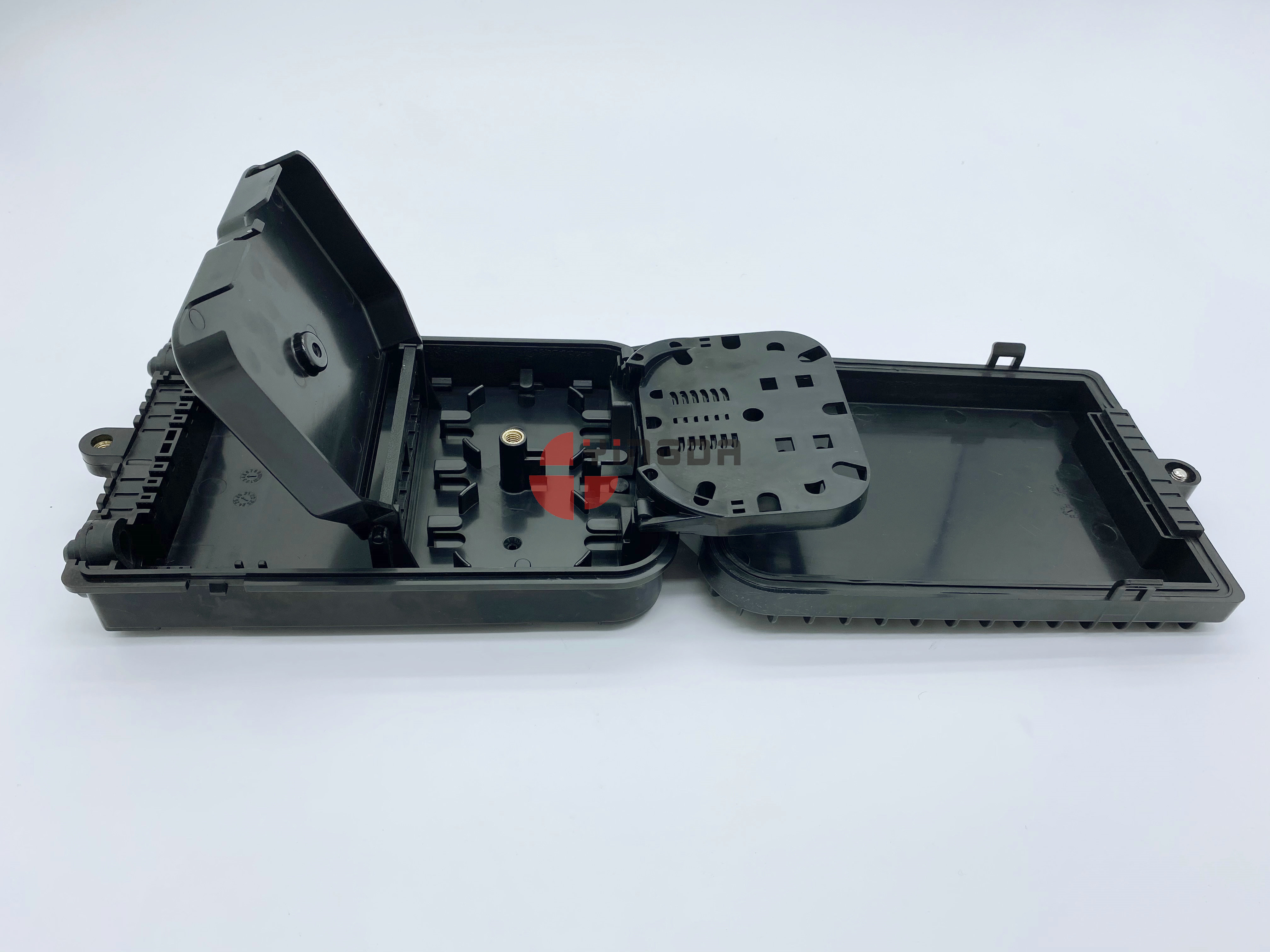

Total box have 2covers, 1 for box, 1 for fusion and splitting area, both are separate, the box is hinge design.

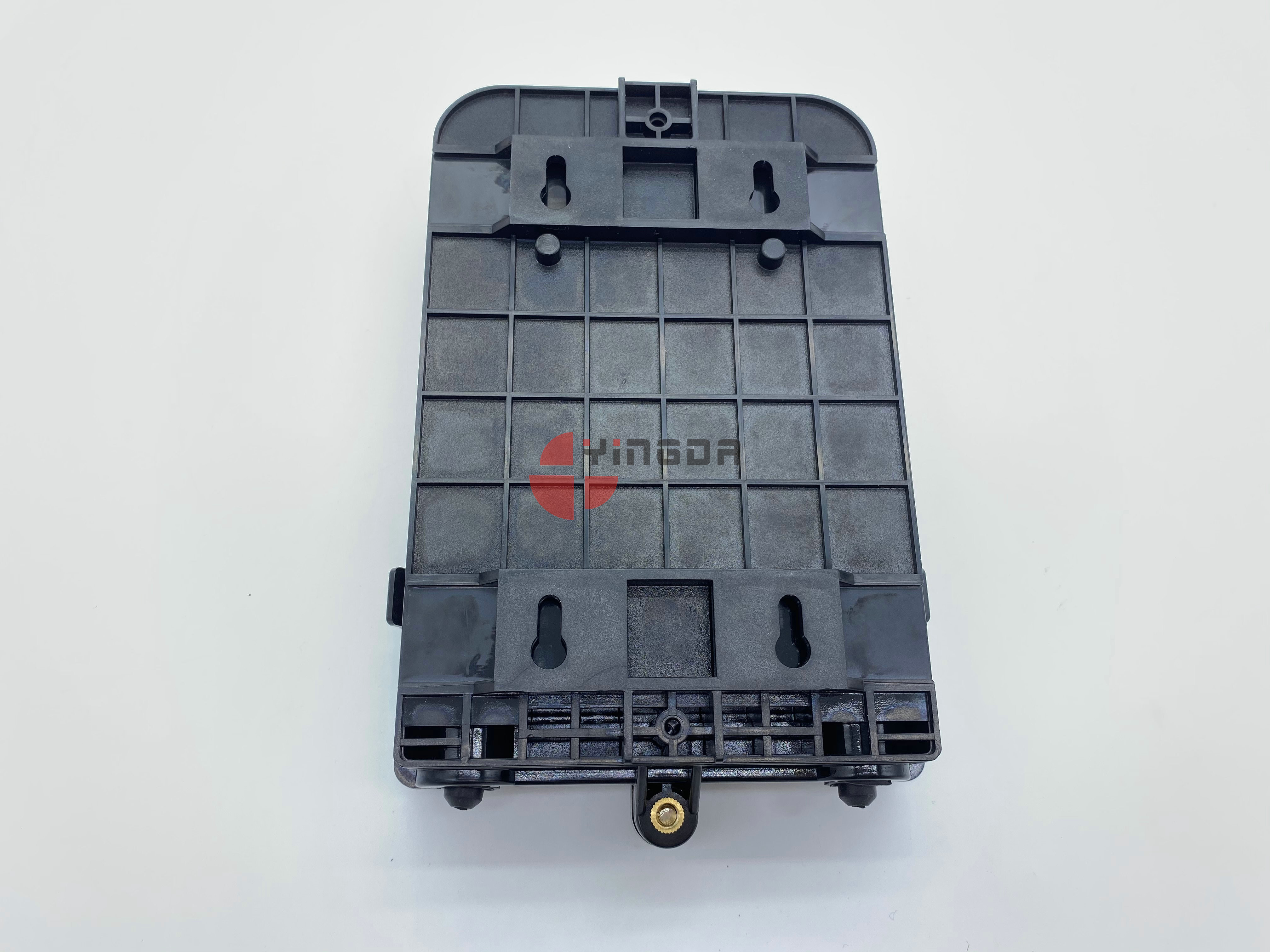

Lock system:plastic key+ 2brackets;  Cable ports: 2round cable entry, 8 drop cable exit.



Outdoor 12 Core IP65 1x8 Splitter Optical Termination Box 2Outdoor 12 Core IP65 1x8 Splitter Optical Termination Box 3

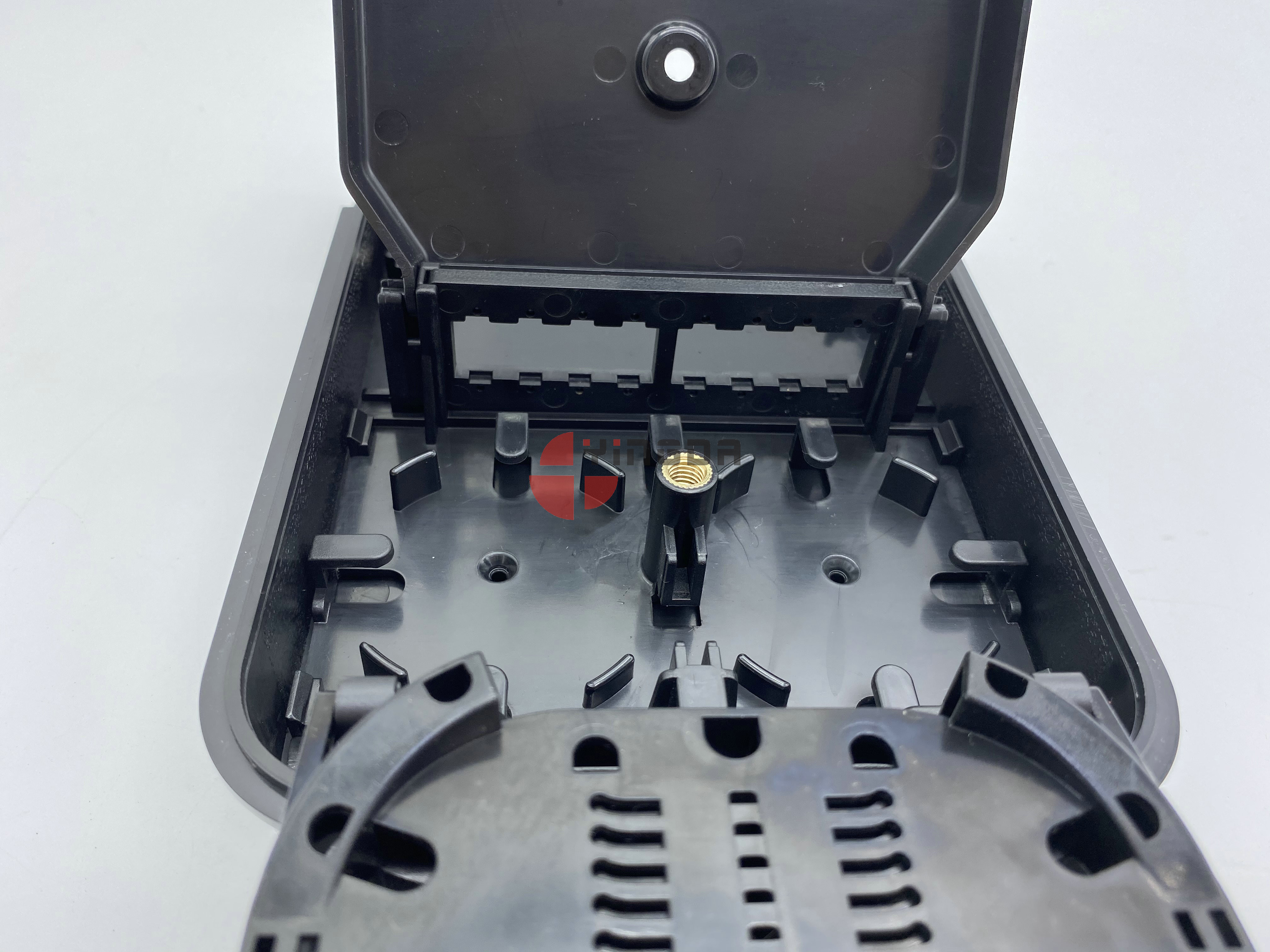

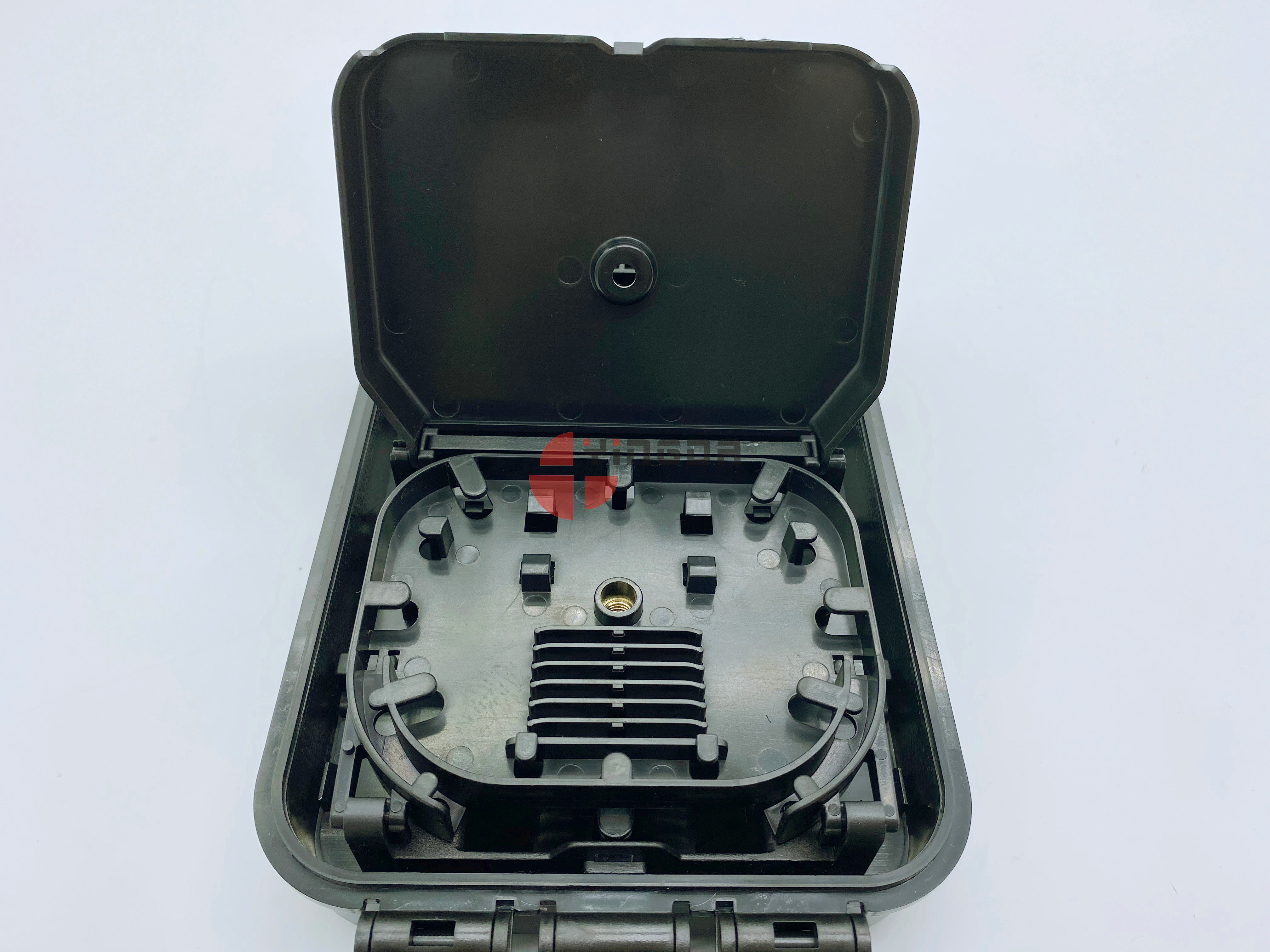

Fusion tray: max. 12cores single fiber storage and coiling; Splitting area: 1SC fix, steel tube fix, and cable routing area.



Outdoor 12 Core IP65 1x8 Splitter Optical Termination Box 4Outdoor 12 Core IP65 1x8 Splitter Optical Termination Box 5

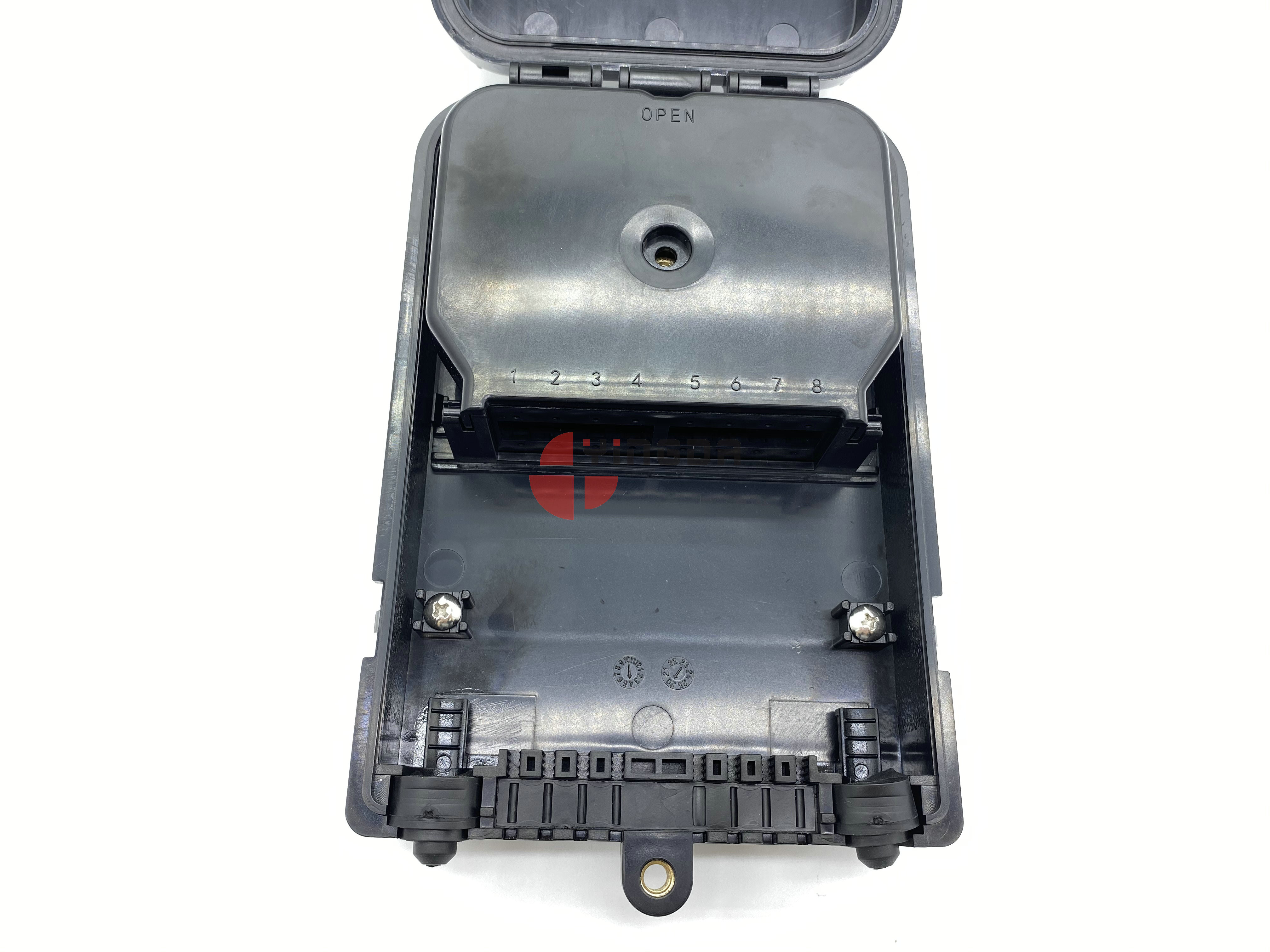

Inner cover with 12345678 mark for SC adapters, with screw holes.  follow the OPEN mark to open the cover in right direction.



Outdoor 12 Core IP65 1x8 Splitter Optical Termination Box 6Outdoor 12 Core IP65 1x8 Splitter Optical Termination Box 7

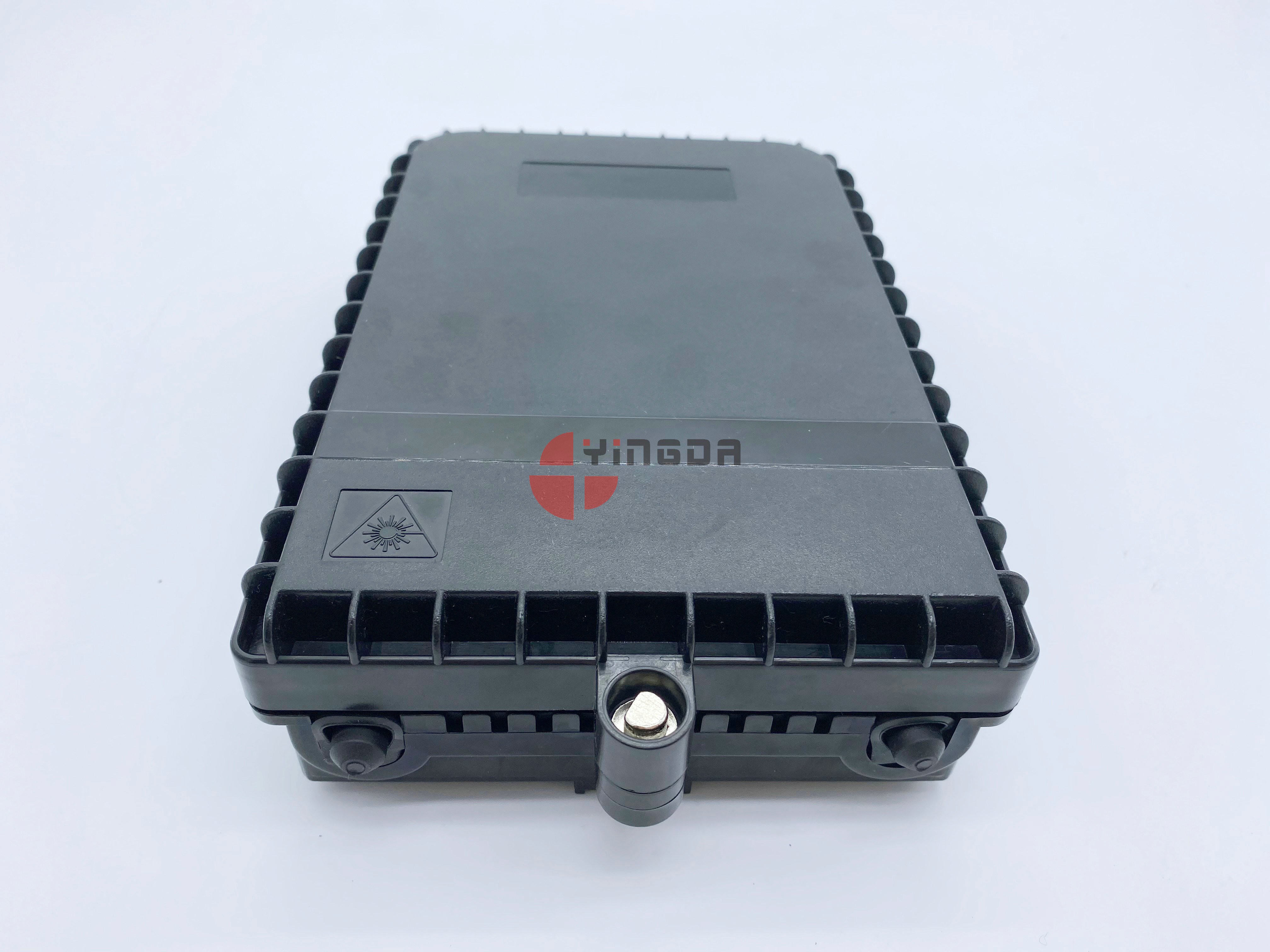

There is laser mark for outdoor use, anti-UV, anti-corrision, outdoor use with waterproof rubber seal all round the box.





HOT SELLING POINT:

  • small size, but with max. 9SC adapter for steel tube splitter.
  • cable entry enter and exit without cutting, express cable port.
