Pole Mount 24 Ports Fiber Optic Termination Box 1x8 Optical Fiber Splice Box Outdoor

Pole Mount 24 Ports Fiber Optic Termination Box 1x8 Optical Fiber Splice Box Outdoor

  • High Light

    fiber optic terminal box

    ,

    fiber optic distribution box

  • Material
    PC+ABS
  • Color
    White
  • Cable Entry
    2 For Uncut Ports
  • Cable Exit
    24 Pcs For Figure 8 Drop Cable Or Indoor 3mm Cable
  • Dimension
    200*150*46mm
  • Type
    Fiber Optic Splice Box
  • Application
    Outdoor Wall Mount / Pole Mount
  • Adapter Qty
    4 Pcs SC Duplex Adapter
  • Max. Capacity
    24 Fibers / Cores
  • Sample
    Ok
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO
  • Model Number
    FTB208 FTB0224
  • Minimum Order Quantity
    100pcs
  • Price
    negotiable
  • Packaging Details
    10pcs/box,60pcs/carton
  • Delivery Time
    7days
  • Payment Terms
    Western Union, T/T

Pole Mount 24 Ports Fiber Optic Termination Box 1x8 Optical Fiber Splice Box Outdoor

Pole Mount 24 Ports Fiber Optic Termination Box, 1x8 Optical Fiber Splice Box Outdoor Waterproof Plastic





This splice box is widely used in FTTH access network, telecommunication networks, CATV networks, Data communications networks, Local area networks. The termination box have 2 splice trays, each can splice 12 pcs heatshrinkable tube. It also can use 4pcs duplex SC adapters.



Features



Ø Industry standard user interface max hold 8 pcs SC adapters

Ø Be made of high impact plastic PC alloy.

Ø Can accommodate 1x4, 1x8 PLC splitter miro steel tube

Ø Anti-UV, Ultra violet resistant and rainfall resistant

Ø Up to 24 FTTH drop cables

Ø Outdoor wall mount or pole mount

Ø 2 inputs, 24 outputs



Specification

Model

Dimension

(W*D*H) mm

Max. Capacity Cable ports

Cable diameter

(mm)

FDB208 200*150*46

PLC 1:8(1pc)

PLC 1:4(2pc)

2 inputs,

24 outputs

In:Ø10,

out:Ø2*3

FTB0224 200*150*46 24 cores



Box structure:



Pole Mount 24 Ports Fiber Optic Termination Box 1x8 Optical Fiber Splice Box Outdoor 0Pole Mount 24 Ports Fiber Optic Termination Box 1x8 Optical Fiber Splice Box Outdoor 1

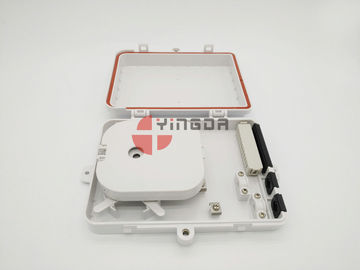

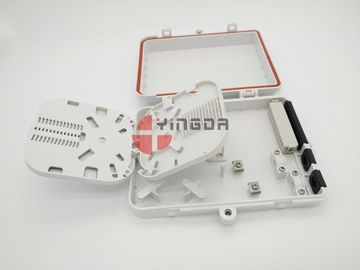

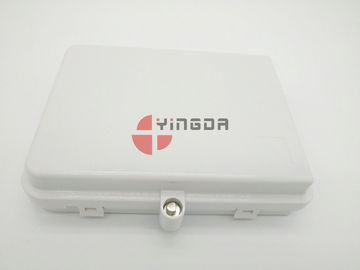

                             Front View                                                                Back View

Pole Mount 24 Ports Fiber Optic Termination Box 1x8 Optical Fiber Splice Box Outdoor 2Pole Mount 24 Ports Fiber Optic Termination Box 1x8 Optical Fiber Splice Box Outdoor 3

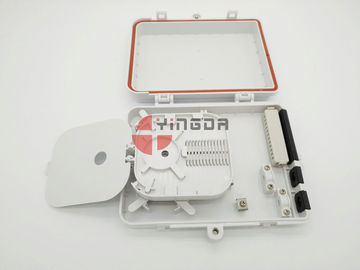

                  Internal fusion splice area                                 Internal Splitter distribution area





FTB0224 Terminal box details:



Pole Mount 24 Ports Fiber Optic Termination Box 1x8 Optical Fiber Splice Box Outdoor 4Pole Mount 24 Ports Fiber Optic Termination Box 1x8 Optical Fiber Splice Box Outdoor 5

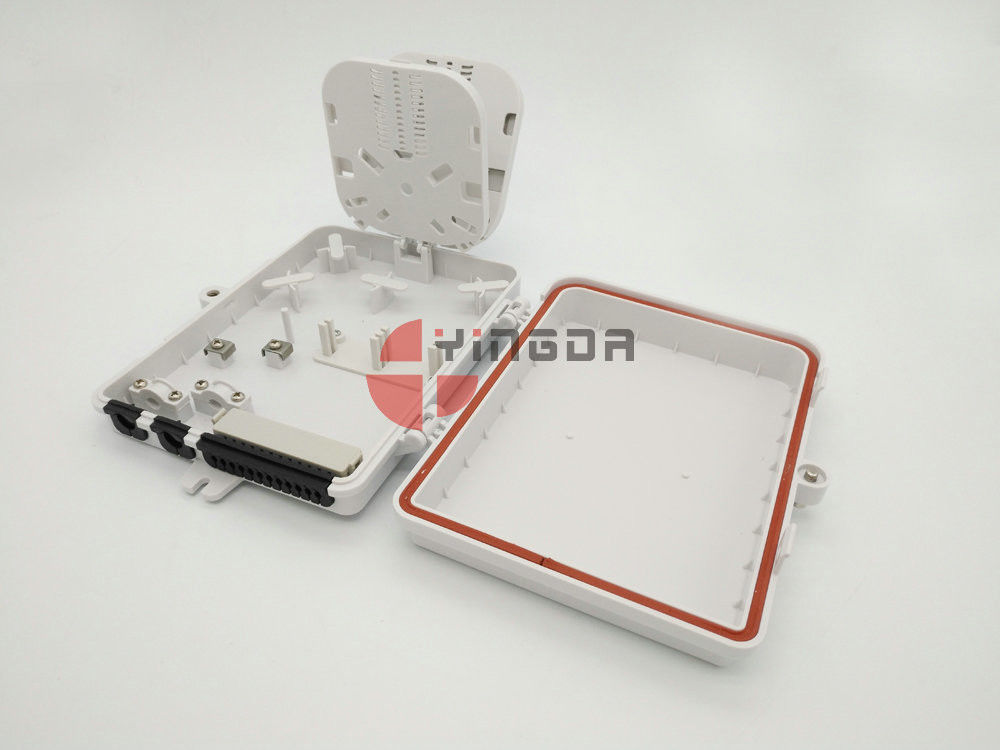

 inport, outports with rubber seal and fix items                 splice tray is hinged with the box



Pole Mount 24 Ports Fiber Optic Termination Box 1x8 Optical Fiber Splice Box Outdoor 6Pole Mount 24 Ports Fiber Optic Termination Box 1x8 Optical Fiber Splice Box Outdoor 7

bottom and cover is connected with plastic hinge;  special key +2pcs bukcles,and waterproof ring



Pole Mount 24 Ports Fiber Optic Termination Box 1x8 Optical Fiber Splice Box Outdoor 8Pole Mount 24 Ports Fiber Optic Termination Box 1x8 Optical Fiber Splice Box Outdoor 9

adapter panel with 4dupelx SC adapter                           all metal parts is stainless steel 304
