12core SC 1X8 Splitter FDB0208E Fiber Optic Termination Box

12core SC 1X8 Splitter FDB0208E Fiber Optic Termination Box
12core SC 1X8 Splitter FDB0208E Fiber Optic Termination Box 12core SC 1X8 Splitter FDB0208E Fiber Optic Termination Box 12core SC 1X8 Splitter FDB0208E Fiber Optic Termination Box 12core SC 1X8 Splitter FDB0208E Fiber Optic Termination Box 12core SC 1X8 Splitter FDB0208E Fiber Optic Termination Box 12core SC 1X8 Splitter FDB0208E Fiber Optic Termination Box

Large Image :  12core SC 1X8 Splitter FDB0208E Fiber Optic Termination Box

Product Details:

Place of Origin: CHINA
Brand Name: yingda
Certification: ISO
Model Number: FDB0208E

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Price: negotiable
Packaging Details: 1pc/box, 10pcs/master box
Delivery Time: 7days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 20000pcs per month
Detailed Product Description
Material: Abs Color: Black
Max Fusion: 12core Plc Splitter: 1x8 Blockless Splitter
Adapter: 8pc SC Coupler Protection Level: IP65
Mounting Method: Pole Mount, Wall Mount Fiber Type: Single Mode, Multimode
High Light:

FDB0208E Fiber Optic Termination Box

,

FDB0208E

,

1X8 Splitter Termination Box

12core SC 1X8 Splitter FDB0208E Fiber Optic Termination Box

FDB0208E fiber optic termination distribution box SC 1:8 splitter Black ABS


This product integrates the optical fiber splicing, splitting and wiring. It can realize the cable direct or
branch connection and is suitable for client's terminal access. Connecting with the optical communication
equipment, through the adapter installed in the box, the drop cable leads the signal out and achieves
optical fiber distribution; also it applies to the protective connection of cables and pigtails; in addition,
optical cable can be spliced with home cable after splitting, to achieve signal transmission.

Specification


ModelFDB0208E
Dimension (A*B*C)192*132*52 mm
Max.Capacity8 cores (single fiber)
Cable ports2 express port, 8 drop cable ports
Cable diameterIn:Φ7-12mm, out:2*φ3mm
Splitter quantity1x16 or 2pc 1x8 steel tube
Adapter quantity9SC
Colorblack /white
Protection levelIP65



Features

  • Made of high quality and impact resistant plastics;
  • Accommodates 1:4 splitter ( 2 pcs) or 1:8 PLC splitter (1pc);
  • Anti-UV, anti-impact and waterproof;
  • Wall or pole mounted;
  • The toothed slots at the outlet can hold outgoing fibers, which avoids loosening or falling off by external force;
  • The box body has two opened-type inlets, which realizes operation without breaking the cable.;
  • The structural design of bottom box, reversible plate and inner cover make the cable inlet and outlet,
  • fiber splicing area and fiber storage area form a closed and independent partition, which is conducive
  • to manage and maintain.

Product details

12core SC 1X8 Splitter FDB0208E Fiber Optic Termination Box 012core SC 1X8 Splitter FDB0208E Fiber Optic Termination Box 1

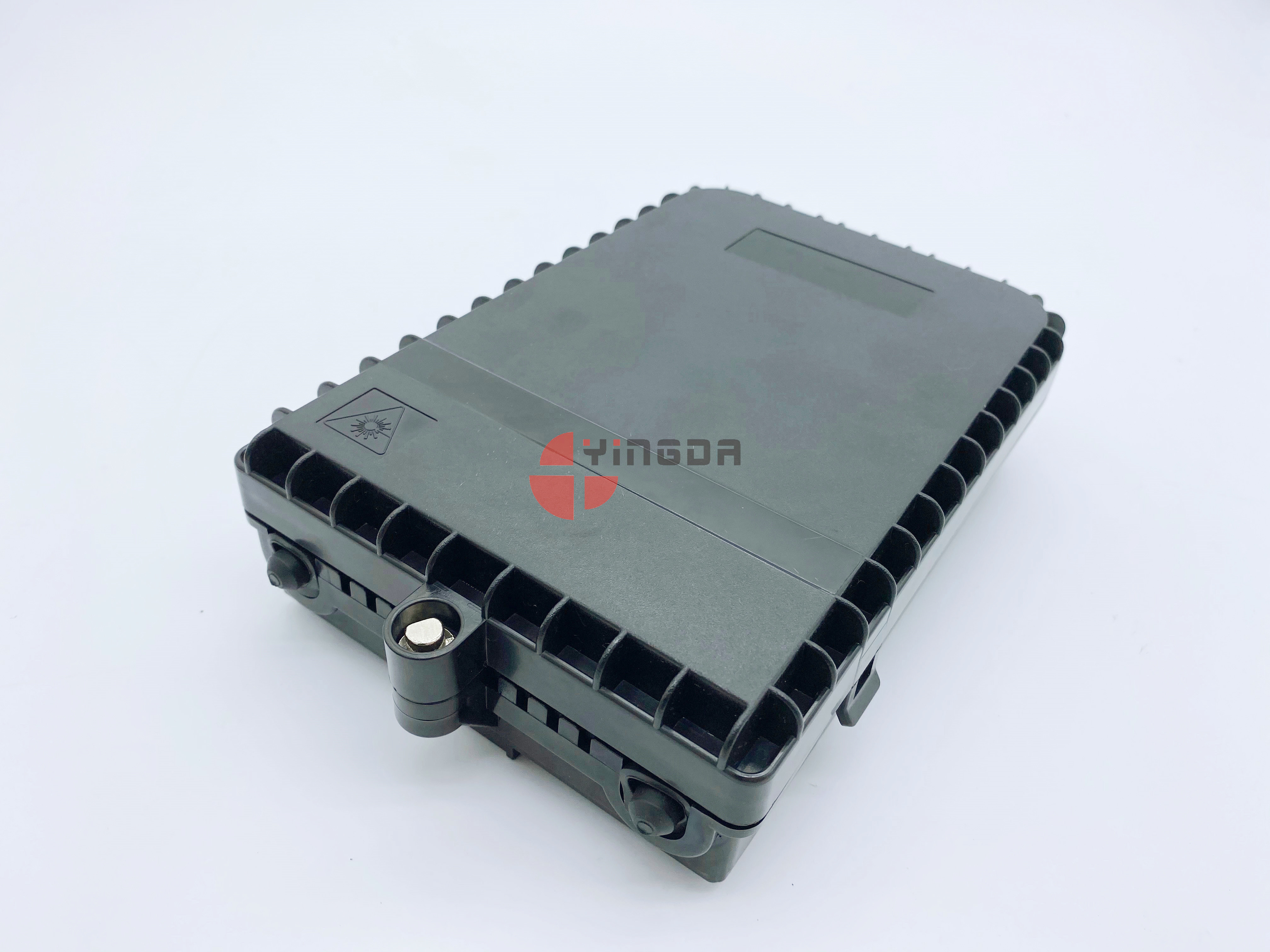

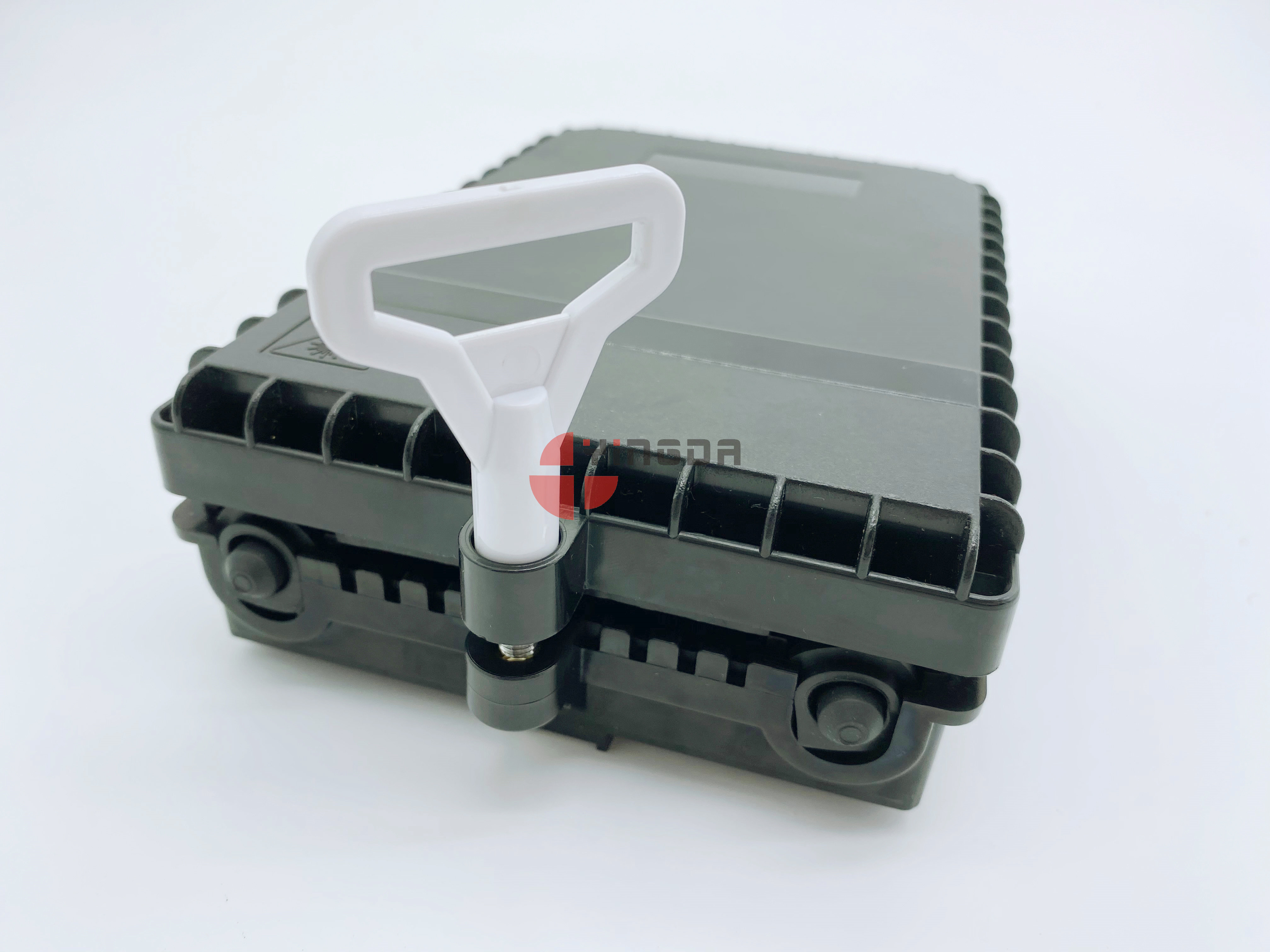

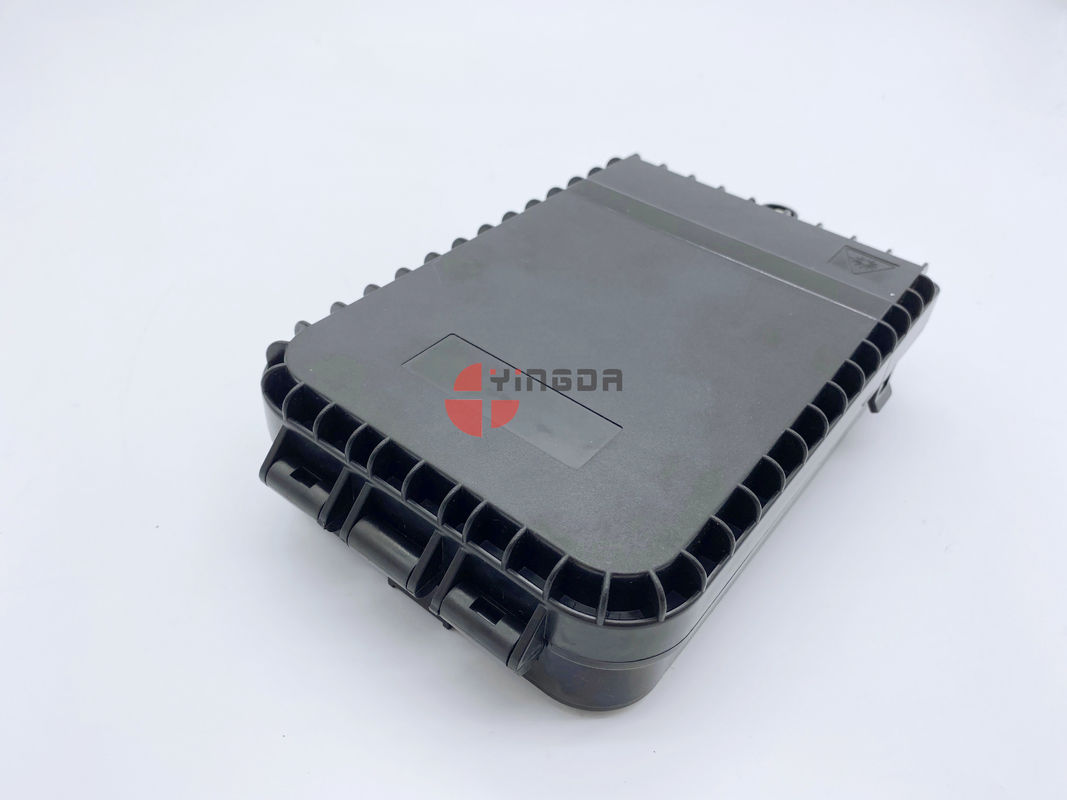

Top view of the box: with 1key to lock and 2brackets at both sides; top front is logo position, left bottom is laser mark;

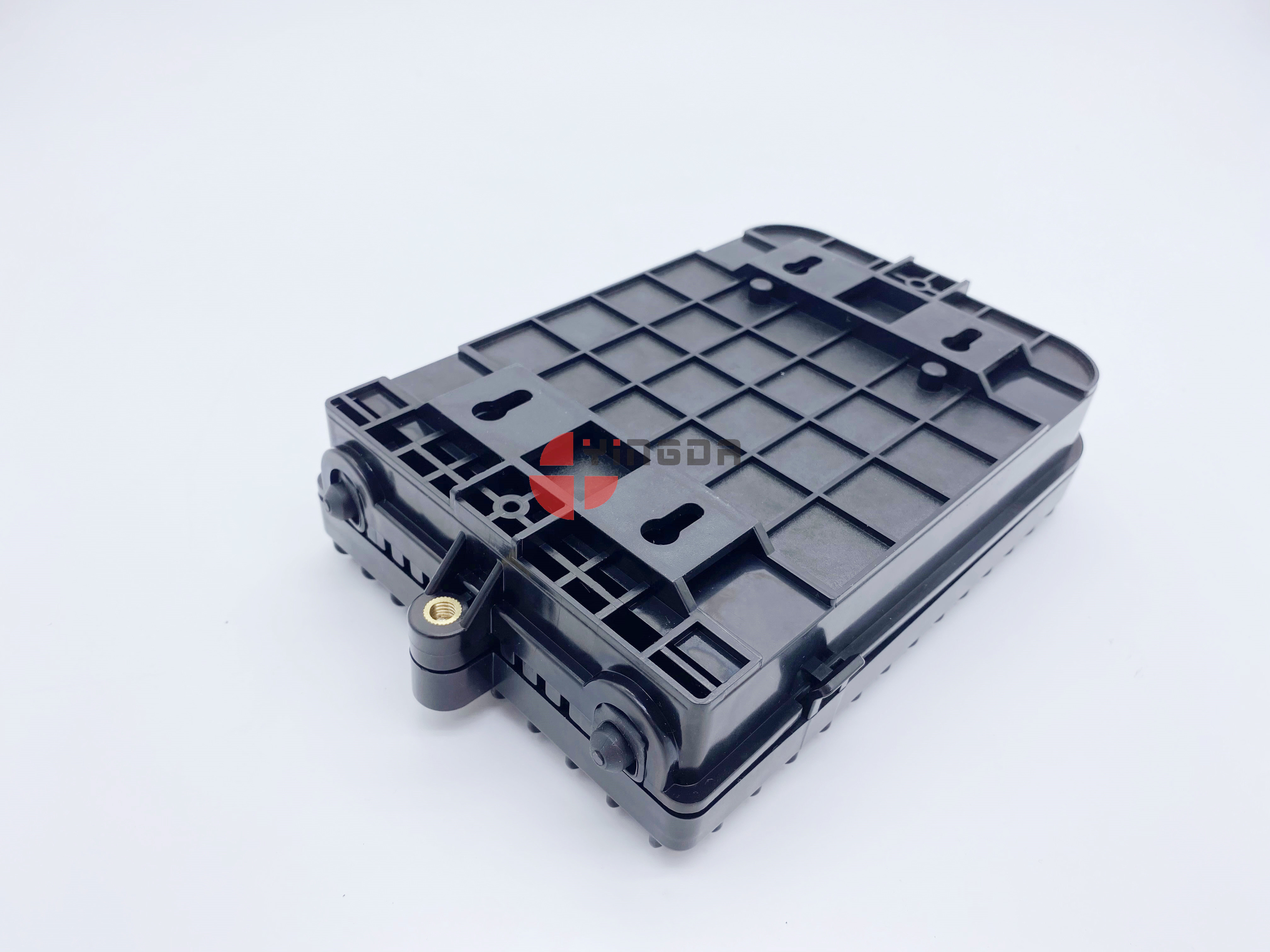

installation method: back wall mount with 4expansion screws, and 2xhoops for pole mount.

12core SC 1X8 Splitter FDB0208E Fiber Optic Termination Box 212core SC 1X8 Splitter FDB0208E Fiber Optic Termination Box 3
Cable entry at bot sides with 7-10mm diameter rubber seal, middle 8pcs ftth drop cable fixtion slots with rubber seal.
the whole box is waterproof with rubber seal circle, outdoor protection level:IP65.
The box support uncut cable go through the box witout cutting the cable.(express port)

12core SC 1X8 Splitter FDB0208E Fiber Optic Termination Box 412core SC 1X8 Splitter FDB0208E Fiber Optic Termination Box 5

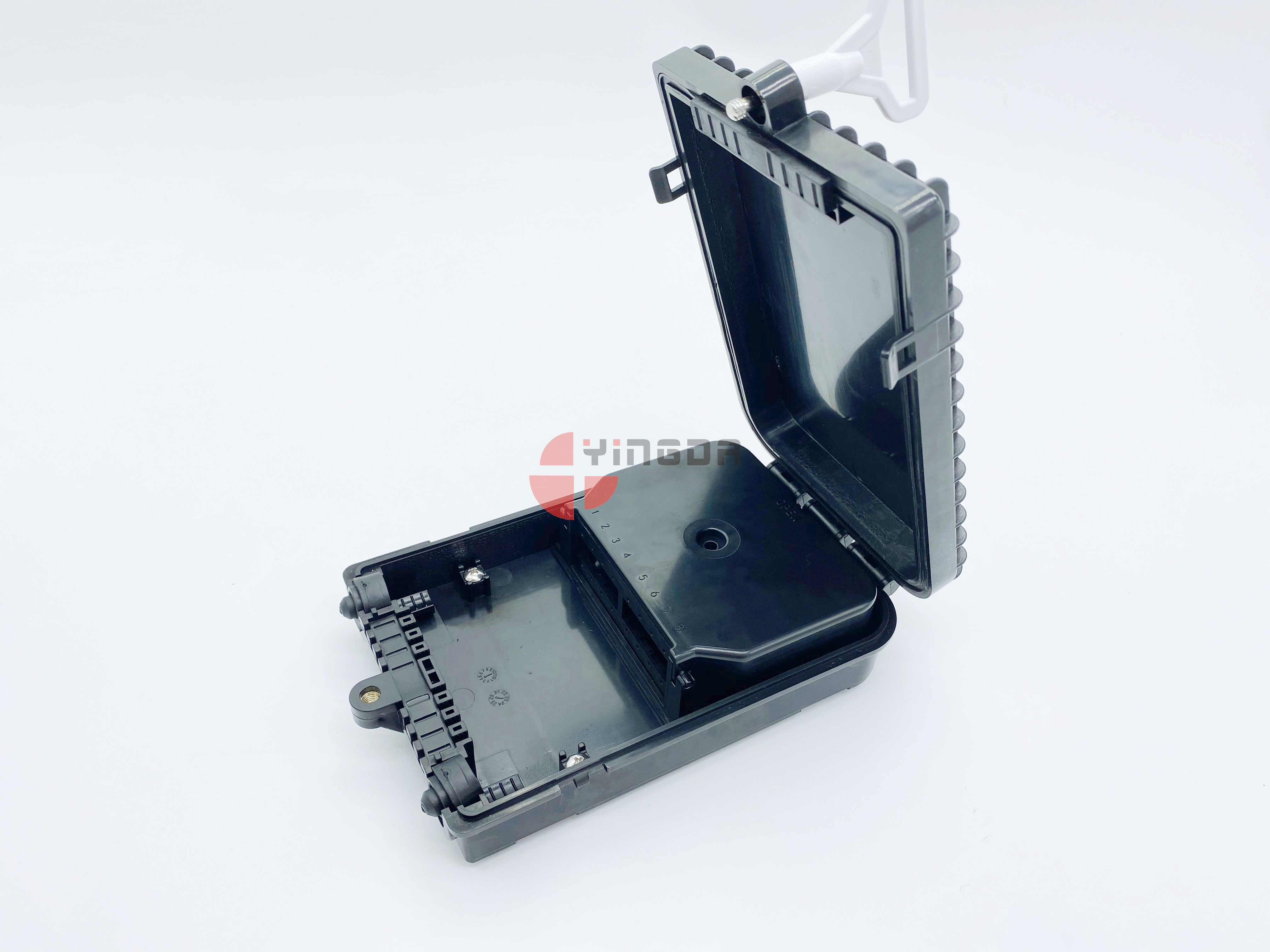

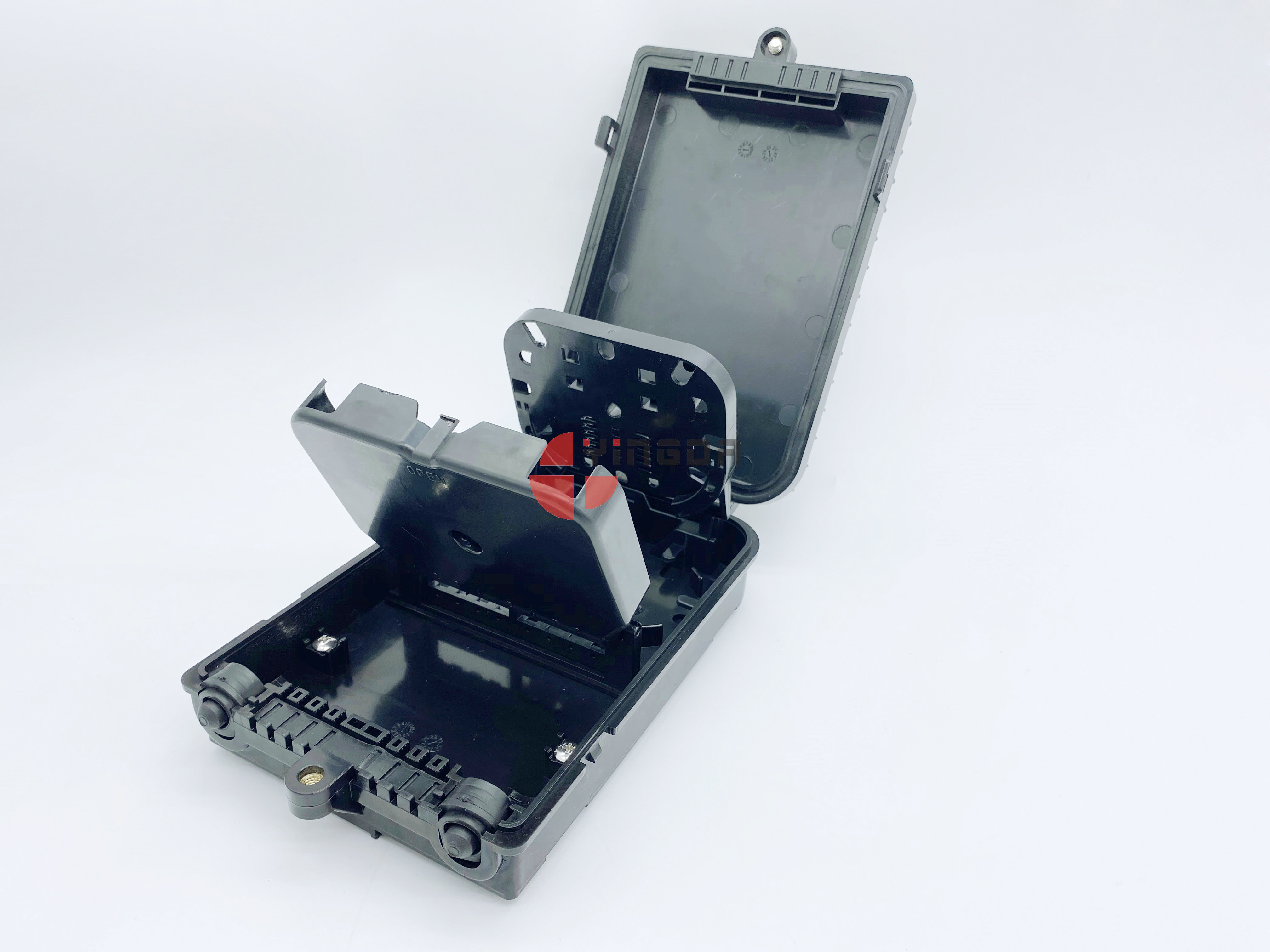

Open the inner cover, there is a tray max. for 12cores fusion, with enough fiber storage and coiling area;
below the tray is spiltter steel tube  and input SC connector fixting area.

12core SC 1X8 Splitter FDB0208E Fiber Optic Termination Box 612core SC 1X8 Splitter FDB0208E Fiber Optic Termination Box 7
the inner cover is fix on the adaptr plate with anti-thief screw, there is OPEN mark at back the cover, you can press the clip, then open it.
there are total 8 SC adapter fixtion, with 12345678 mark, good for on-site construction.

12core SC 1X8 Splitter FDB0208E Fiber Optic Termination Box 812core SC 1X8 Splitter FDB0208E Fiber Optic Termination Box 9
The whole box is total enlcosed design, all metal parts are stainelss steel;  the inner cover can be taken off for better cable termination.


Standard accessory:
plastic key, expansion screws,F10 ~ F16 hoop,sleeve 40mm
