Field Installable Connector
Created with Pixso. ESC250D APC Field Assembly Optical Connector Green Field Attachable Connector
ESC250D APC Field Assembly Optical Connector Green Field Attachable Connector
  • Name
  • Name
  • Name
  • Name
  • Name

ESC250D APC Field Assembly Optical Connector Green Field Attachable Connector

Brand Name: YINGDA
Model Number: ESC250D/APC
MOQ: 1000pcs
Price: 0.19USD-0.72USD
Delivery Time: 7 working days
Payment Terms: T/T, Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
china
Certification:
ISO
Material:
ABS/PBT
Color:
Green
Fiber Type:
Single Mode G657A1
Ferrule:
APC Angle 8
Insertion Loss:
<0.5dB, Average 0.3dB
Package:
10pcs/box
Product Name:
Apc Fiber Connector,apc Fiber Optic Connector,fiber Cable Connectors,field Installable Connector
Packaging Details:
10pcs in blister box, 1000pcs in a carton box
Supply Ability:
1000000pcs per month
Highlight:

APC Field Assembly Optical Connector

,

ESC250D Field Assembly Optical Connector

,

APC Field Attachable Connector

Product Description

ESC250D APC Field Assembly Optical Connector Green Field Attachable Connector



ESC250D/APC Field Assembly Connector FTTH for Drop Cable 2*3mm Green Optical Fiber Termination



The Fast Connector (Field Assembly Connector or Field terminated fiber connector, quickly assembly Fiber connector) is a revolutionary field installation optical fiber connector that requires no epoxy and no polishing. The unique design of the patented mechanical splice body incorporates a factory-mounted fiber stub and a pre-polished ceramic ferrule. Using this on-site assembly optical connector, it is possible to improve the flexibility of optical wiring design as well as reducing the time required for fiber termination. The Fast connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and FTTH.



Optical connector specification

Item Unit UPC APC
Model   ESC250D/UPC ESC250D/APC
Insertion loss dB ≤0.25 ≤0.3
Return loss dB ≥50 ≥55
Tensile strength N/2min ＞30
Work temperature 0C -40～+85
Repeatability dB ≤0.2
Repeated assembly times ≥10
Mate-demate times ≥500
Cable type mm 2.0×3.0 & 2.0×1.6 drop cable
Product dimension mm 52*9*8.1

ESC250D APC Field Assembly Optical Connector Green Field Attachable Connector 0



Fast connector features

  • Linkage structure design, and equipment, connector connection, reserved micro-bend to remain unchanged;
  • Double V groove structure design, high stability and reliability of fiber connection;
  • Core structure: adopt the normally closed flexible locking structure, excellent optical performance;
  • Easy to operate, fast to assemble, high success rate, long time of using, easy maintenance.
  • Widely used in FTTH network

ESC250D APC Field Assembly Optical Connector Green Field Attachable Connector 1

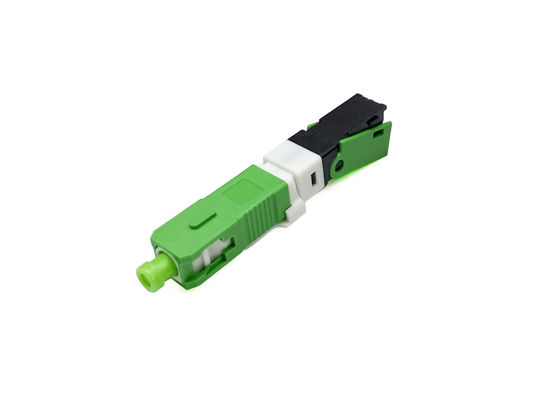

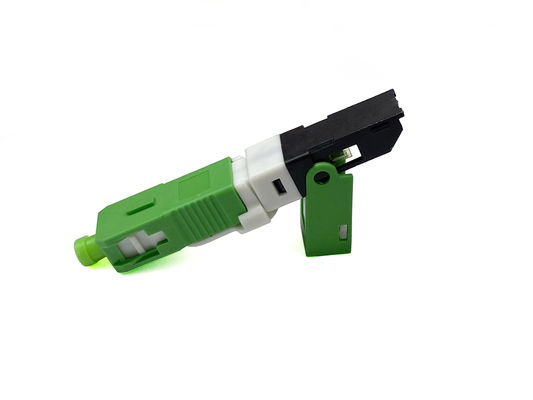

SC/APC fast connector, green color, white cilp to re-open and close the connector, square boot can be flip up and down.

ESC250D APC Field Assembly Optical Connector Green Field Attachable Connector 2

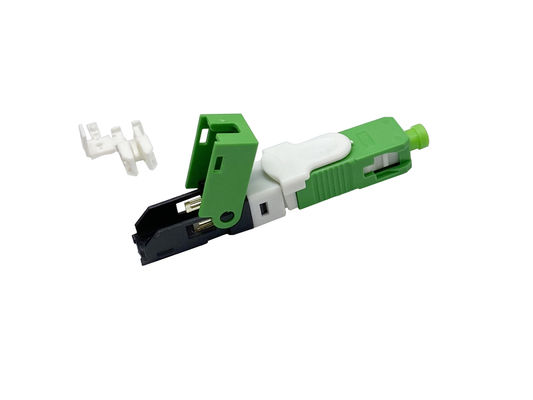

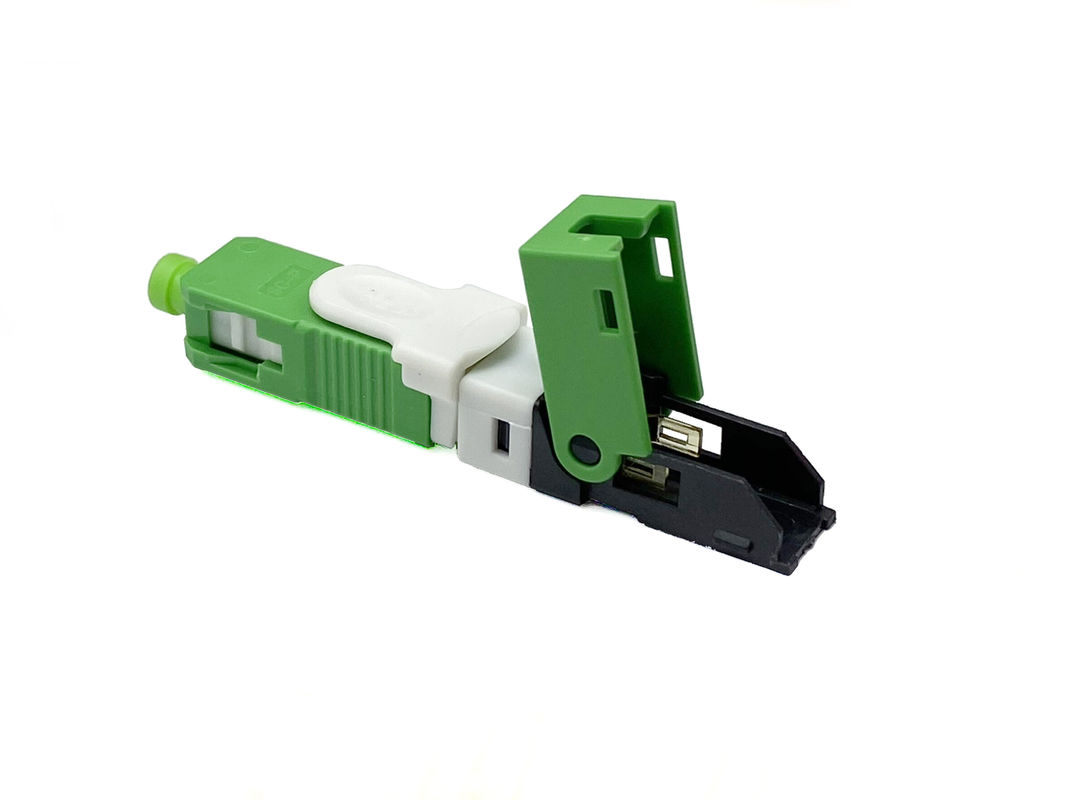

Linkage structure and 2 groove, square boot with white 2.0*3.0 mm/2.0*1.6mm drop cable holder;

ESC250D APC Field Assembly Optical Connector Green Field Attachable Connector 3

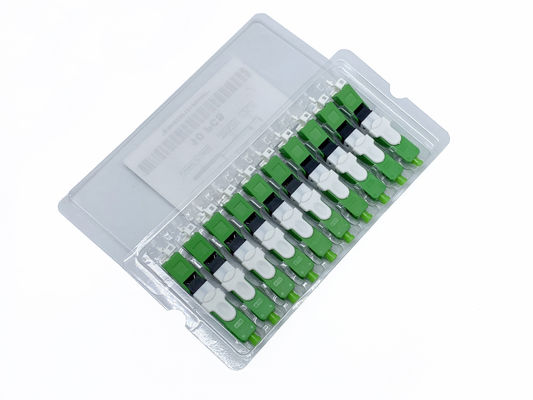

10pcs quick installation fast connector will pak in a blister box;

ESC250D APC Field Assembly Optical Connector Green Field Attachable Connector 4

10pcs in a blister box with 1 sticker of fiber cutting length mark;

ESC250D APC Field Assembly Optical Connector Green Field Attachable Connector 5

Each white box will with 1piece SC/APC Chinese and English user manual+1piece fiber cutting length;

10pcs blister box in a white cardboard box=100pcs/white box, then 10pcs white box=1000pcs/Carton box;



ESC250D APC Field Assembly Optical Connector Green Field Attachable Connector 6
