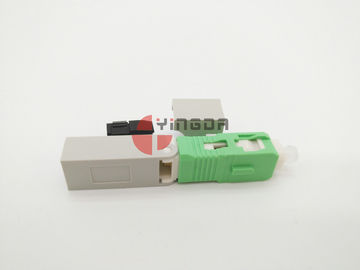

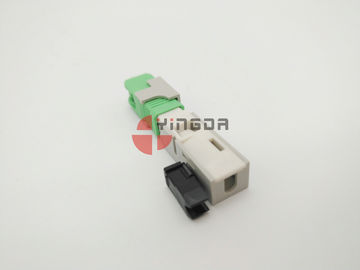

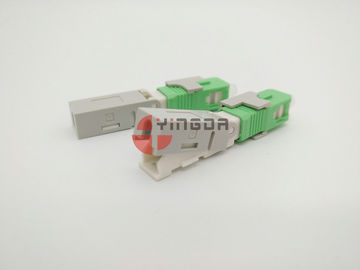

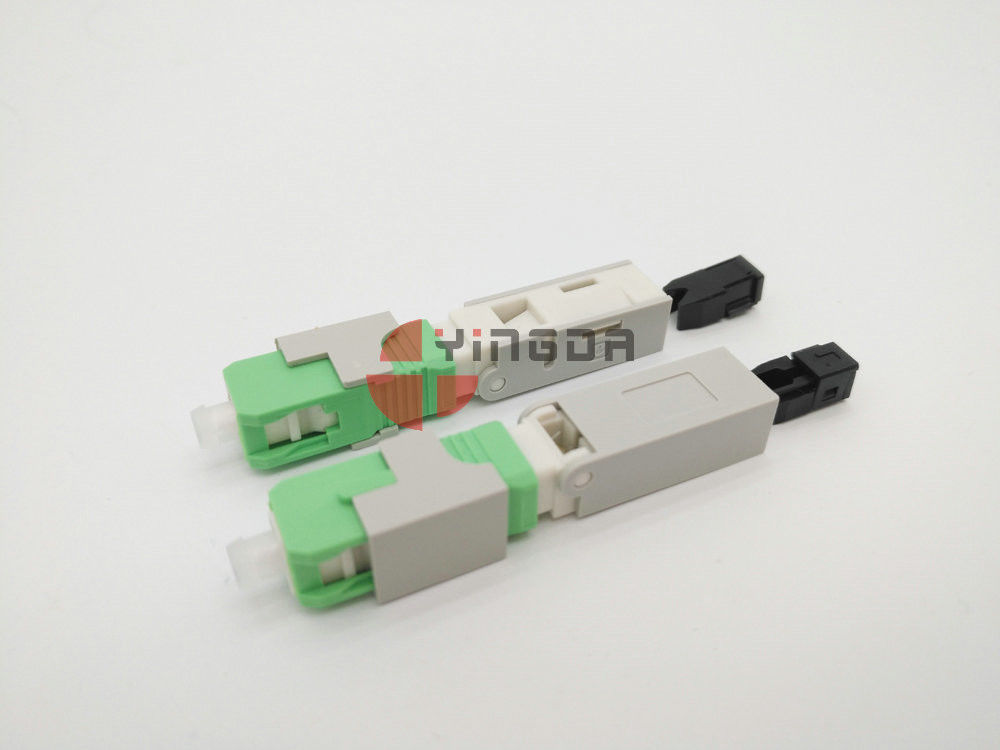

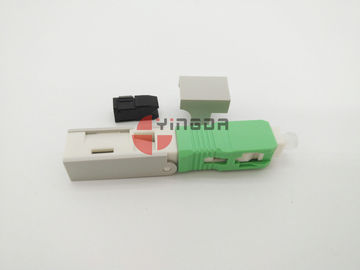

SC Mechanical Fast Fiber Optic Filed Installable Connector APC Green Pre Polished

Name: SC Mechanical Fast Fiber Optic Filed Installable Connector APC Green Pre Polished
Brand: YINGDA TECHNOLOGY LIMITED
SKU: YDFIC-SA-H
Price: 0.19 USD
Availability: InStock

Brand Name:	yingda
Model Number:	YDFIC-SA-H
MOQ:	1000pcs
Price:	0.19USD-0.72USD
Delivery Time:	3-5days
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

ISO

House Color:

Green

Boot Type:

Screw

Fiber Type:

0.9mm,250um,2mm,3mm

Fiber Mode:

APC / PC

Cable Type:

Single Mode 9/125um

Insertion Loss:

Max.0.5dB

Product Name:

Sc Fiber Connector,sc Fiber Optic Connector,fiber Cable Connectors,field Installable Connector

Packaging Details:

10pc/pack

Supply Ability:

1000k per month

Highlight:

quick assembly connector

FTTH connector

Product Description

SC Mechanical Fast Connector, Fiber Optic Filed Installable Connector APC Green Pre-Polished

Fast Connector is also called Field Assembly Connector, Field Installation connector, quickly assembly connector. It is designed for simple and fast field termination of single fibers, without polishing or epoxy. The unique design is a pre-polished ferrule and a mechanical splice inside the connector body. The assembly only requires normal fiber preparation tools: a fiber stripping tool, wipes and a fiber cleaver. No electrical power supply is needed.

Our Fast Connector series connectors are now available in FC, SC and LC variants, catering for 250um to 900um diameter single mode fiber and available with PC or APC ferrules.

Feature

pre-stubbed factory-polished ferrule that couples to the fiber being terminated.

Precision mechanical alignment insures low loss with a prosprietary gel.

Connector Type: SC

Fiber Application: Singlemode

Fiber Type: Simplex

Number of Fibers: 1

Maximum Cable Diameter (mm):2X3mm

Connector Ferrule: Ceramic

Specification

Item	Parameter
Item	Single-Mode
Insertion Loss	Max≤0.5dB , Average≤0.3dB
Return Loss	APC≥50dB;UPC≥45dB
Durability (1000 Mating)	0.2dB Max.
Operating Temperature	-40°C~+75°C
Storage Temperature	-40°C~+85°C

Remark: Ferrule Concentricity SM< 1um; MM< 1.4um Ferrule inner diameter tolerance +1/-0um Ferrule outer diameter tolerance±0.5 um.

Product details

Techanical requirements

ITEM	SC/UPC	SC/APC
Insertion loss	average≤0.25dB; test with standard connector and adapter≤0.5dB; test with any connector and adapter≤0.7dB
Return loss	≥45dB	≥55dB
Cable type	3.0*2.0mm drop cable,§3.0/§2.0 round single fiber cable or other type
Fiber diameter	0.125mm bare fiber; 0.25mm cladding fiber;0.9mm tight tube fiber
Fiber mode	Singlemode 1310/1550nm
