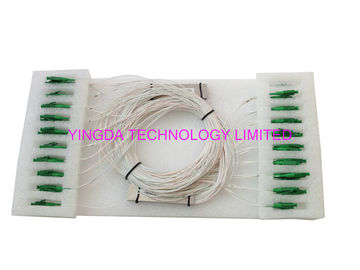

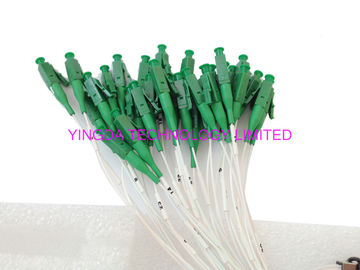

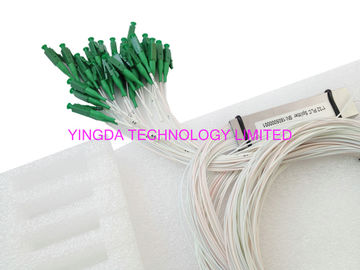

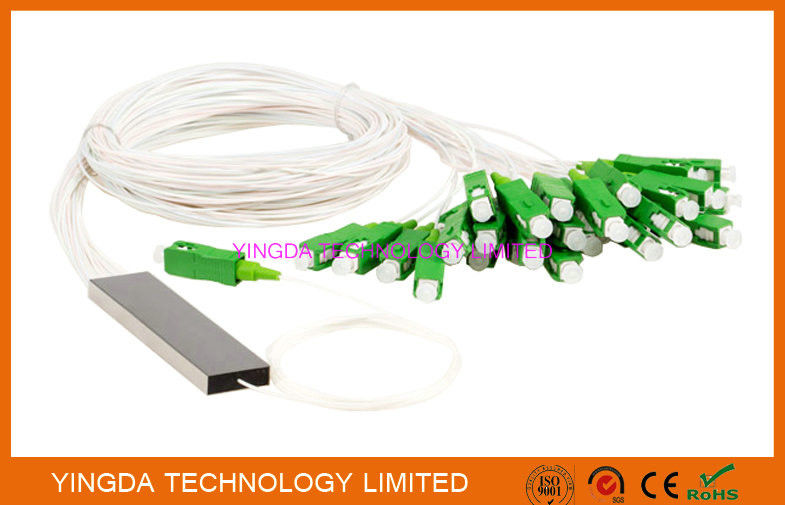

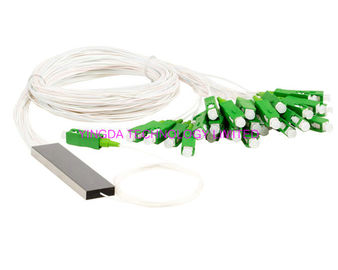

FTTH 1x32 Mini PLC Splitter Single mode Steel Tube LC APC Connectors
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xSplit Ratio | 1:32 | Connector | LC APC |
---|---|---|---|
Fiber Type | Single Mode G657A1 | Insertion Loss | 16.5dB |
Uniformity (Max.) | <1.3dB | Wavelength | 1260 - 1650 Nm |
PDL(Max.) | 0.3dB | Standard | Telcordia GR-1221 And GR-1209 |
Steel Tube | 80×20×6mm | ||
High Light | fiber optic splitter,fbt coupler |
FTTH 1x32 Mini PLC Splitter Singlemode Steel Tube LC APC Connectors PON CATV Network LSZH Corning Fiber
YINGDA Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. YINGDA provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.
Features
- Low Insertion loss
- Low PDL
- Compact Design
- Good channel-to-channel uniformity
- Wide Operating Wavelength: From 1260nm to 1650nm
- Wide Operating Temperature: From -40℃ to 85℃
- High Reliability and Stability
Applications
- FTTX Systems
- PON Networks
- CATV Links
- Optical Signal Distribution
Compliance
- Telcordia GR-1209-CORE
- Telcordia GR-1221-CORE
- RoHS
Steel Tube Size
Technical Specification
Without connectors
Type | 1*2 | 1*4 | 1*8 | 1*16 | 1*32 | 1*64 | 2*2 | 2*4 | 2*8 | 2*16 | 2*32 | 2*64 | |
Item | |||||||||||||
Insertion loss (dB) | Max | 3.7 | 7 | 10.2 | 13.5 | 16.5 | 20.5 | 4.2 | 7.2 | 10.7 | 14.2 | 16.8 | 20.5 |
Uniformity(dB) | Max | 0.5 | 0.6 | 0.8 | 1 | 1.3 | 1.8 | 0.6 | 0.8 | 1 | 1.5 | 1.8 | 2 |
PDL(dB) | Max | 0.2 | 0.3 | 0.4 | 0.2 | 0.3 | 0.4 | ||||||
Operating Wavelength (nm) | / | 1260~1650 | |||||||||||
Return loss(dB) | Min | 55 | |||||||||||
Directivity (dB) | Min | 55 | |||||||||||
Operating Temperature (°C) | / | -40°C~85 °C | |||||||||||
Storage Temperature (°C) | / | -40°C~85 °C |
With connectors
Type | 1*2 | 1*4 | 1*8 | 1*16 | 1*32 | 1*64 | 2*2 | 2*4 | 2*8 | 2*16 | 2*32 | 2*64 | |
Item | |||||||||||||
Insertion loss (dB) | MAX | 3.9 | 7.2 | 10.5 | 13.8 | 16.8 | 20.8 | 4.4 | 7.4 | 11 | 14.5 | 17.5 | 20.8 |
Uniformity (dB) | MAX | 0.5 | 0.6 | 0.8 | 1 | 1.3 | 1.8 | 0.6 | 0.8 | 1 | 1.5 | 1.8 | 2 |
PDL (dB) | MAX | 0.2 | 0.3 | 0.4 | 0.2 | 0.3 | 0.4 | ||||||
Operating Wavelength (nm) | / | 1260~1650 | |||||||||||
Return loss (dB) | MIN | 50(UPC),55(APC) | |||||||||||
Directivity (dB) | MIN | 55 | |||||||||||
Operating Temperature (°C) | / | -40°C~85 °C | |||||||||||
Storage Temperature (°C) | / | -40°C~85 °C |
Notes:
1. Specified without connectors.
2. IL will be 0.15dB higher with connectors.
3. For more information about 2xN PLC splitter, please refer to our PDF datasheet.
Product details
steel tube: product name, seral number or logo each product with 1test report, 2pc/box
plc splitter with figure ring on each output for easier recognaize. and fix on the box tightly with ties for better protection during transportation.
For more details, pls send mail to us at: sales@ydpcable.com contact: sophie wang
