| Brand Name: | YINGDA |
| Model Number: | 1X4 1:4 1*4 splitter |
| MOQ: | 100 pcs |
| Price: | negotiable |
| Delivery Time: | 5-8days after payment |
| Payment Terms: | T/T, Western Union, MoneyGram |

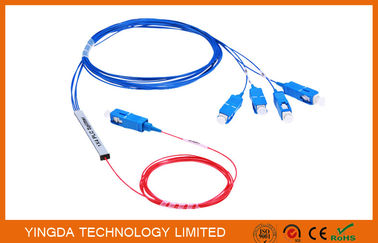

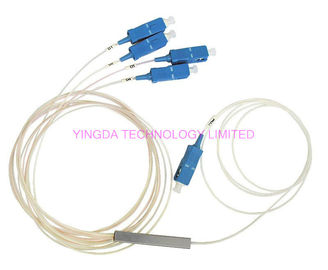

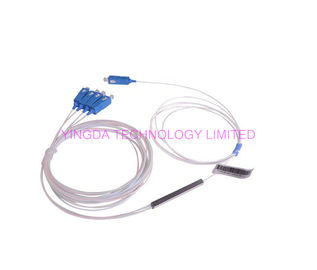

Fiber Optic Splitter Tube PLC SC/UPC 1x4 Singlemode Splitter LSZH G657A,1:4 PLC Splitter SC Connectors
The splitter (optical path splitter) is also called PLC splitter, fiber splitter, fiber splitter, optical splitter. According to the above package, it is also called half-shell PLC splitter or metal shell PLC splitter, which is widely used in FTTX, EPOM, GPON fields.
Our company has unique advantages in the PLC product platform, has expertise in PLC circuits, V-grooves and fiber arrays, and provides one-stop solutions and services. Our splitters are tested to industry standards, and we guarantee quality, turnaround time and competitive prices. The PLC splitters we provide are: 1x2, 1x4, 1x8, 1x16, 1x32, 1x64, 2x4, 2x8, 2x16, 2x32, 2x64 PLC splitters, as well as bare half modules, PLC splitters and modules.
SC/UPC fiber cable splitter features
Fiber optic sound cable splitter applications
Technical Specs for PLC Splitter with Fiber Optic Connectors
1xN splitter
| Item | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 1x128 |
| Fiber Type | G.657A | ||||||
| Working Wavelength | 1260nm~1650nm | ||||||
| Standard Insertion Loss(dB) | ≤4.2 | ≤7.6 | ≤10.7 | ≤14.0 | ≤17.2 | ≤20.8 | ≤24.0 |
| P-Grade Insertion Loss(dB) | ≤4.0 | ≤7.4 | ≤10.5 | ≤13.8 | ≤17.0 | ≤20.4 | ≤23.7 |
| Uniformity(dB) | ≤0.6 | ≤0.8 | ≤0.8 | ≤1.0 | ≤1.5 | ≤2.0 | ≤2.0 |
| PDL(dB) | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.5 |
| Wavelength Dependent Loss(dB) | ≤0.6 | ≤0.8 | ≤0.8 | ≤1.0 | ≤1.5 | ≤2.0 | ≤2.0 |
| Return Loss(dB) | ≥50 | ||||||
| Directivity(dB) | ≥55 | ||||||
| Operating Temp.Gange | -40℃~+85℃ | ||||||
| Note:The above parameter is for Splitter with connector.If w/o connector,insertion loss will reduce by 0.2dB. | |||||||
2xN splitter
| Item | 2x2 | 2x4 | 2x8 | 2x16 | 2x32 | 2x64 | 2x128 |
| Fiber Type | G.657A | ||||||
| Working Wavelength | 1260nm~1650nm | ||||||
| Standard Insertion Loss(dB) | ≤4.4 | ≤8.0 | ≤11.0 | ≤14.6 | ≤17.8 | ≤21.0 | ≤24.4 |
| P-Grade Insertion Loss(dB) | ≤4.2 | ≤7.7 | ≤10.8 | ≤14.1 | ≤17.4 | ≤20.7 | ≤24.0 |
| Uniformity(dB) | ≤0.8 | ≤1.0 | ≤1.2 | ≤1.5 | ≤1.8 | ≤2.0 | ≤3.0 |
| PDL(dB) | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.5 |
| Wavelength Dependent Loss(dB) | ≤0.8 | ≤1.0 | ≤1.2 | ≤1.5 | ≤1.8 | ≤2.0 | ≤3.0 |
| Return Loss(dB) | ≥50 | ||||||
| Directivity(dB) | ≥55 | ||||||
| Operating Temp.Gange | -40℃~+85℃ | ||||||
| Note:The above parameter is for Splitter with connector.If w/o connector,insertion loss will reduce by 0.2dB. | |||||||
Encapsulation size
| Item | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
| Length*Width*Height(mm) | 60×7×4 | 60×7×4 | 60×7×4 | 60×12×4 | 80×20×6 | 100×40×6 |
| Item | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 |
| Length*Width*Height(mm) | 60×7×4 | 60×7×4 | 60×7×4 | 80×12×4 | 100×20×6 | 100×40×6 |
Order information
Port |
Fiber | Input Pigtail | Input Connector | Input Pigtail Length |
Output Pigtail | Output Connector |
OutputPigtail Length |
|
| PLC | 102=1x2 104=1x4 108=1x8 116=1x16 132=1x32 164=1x64 128=1x128 204=2x4 208=2x8 216=2x16 232=2x32 264=2x64 |
1=G657A 2=G652D SP=Special |
1=250um Bare Fiber 2=900um tight uffer 3=900um loose tube 4=2.0mm cable 5=3.0mm cable SP=Special |
NE=None SU=SC/UPC SA=SC/APC LU=LC/UPC LA=LC/APC FU=FC/UPC FA=FC/APC SP=Special |
0=0.5m 1=1m 2=1.5m 3=2m 4=3m SP=Special |
1=250um Bare Fiber 2=900um tight uffer 3=900um loose tube 4=2.0mm cable 5=3.0mm cable SP=Special |
NE=None SU=SC/UPC SA=SC/APC LU=LC/UPC LA=LC/APC FU=FC/UPC FA=FC/APC SP=Special |
0=0.5m 1=1m 2=1.5m 3=2m 4=3m SP=Special |
PLC workshop:
video
|
|
