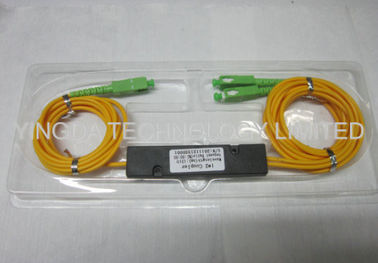

Fiber Optic PLC Splitter Single Mode

Name: Fiber Optic PLC Splitter Single Mode
Brand: YINGDA TECHNOLOGY LIMITED
SKU: dual window 1x2 cassette
Price: 2.10 USD
Availability: InStock

Brand Name:	YINGDA
Model Number:	dual window 1x2 cassette
MOQ:	50 pcs
Price:	1.1USD-4.58USD
Delivery Time:	5-8days after payment

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

ISO SGS ROHS

Coupling Ratio:

1-50 (%)

Pacakge:

Plastic Blister Box

Wavelength:

1310nm/1550nm Dual Window

Fiber Type:

SMF-28e Corning Fiber,G652D

Port Configuration :

1x2 Or 2x2,1x3,1x4,1x6,etc

Cable Type:

0.9mm,2mm,3mm

Packaging Details:

1pc/blister box,100pcs/box

Supply Ability:

10,000 pcs per month

Highlight:

fiber optic splitter

fbt coupler

Product Description

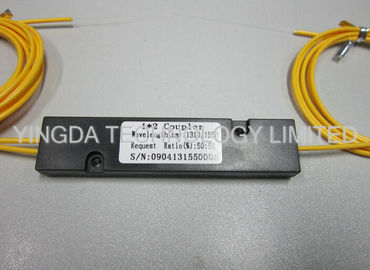

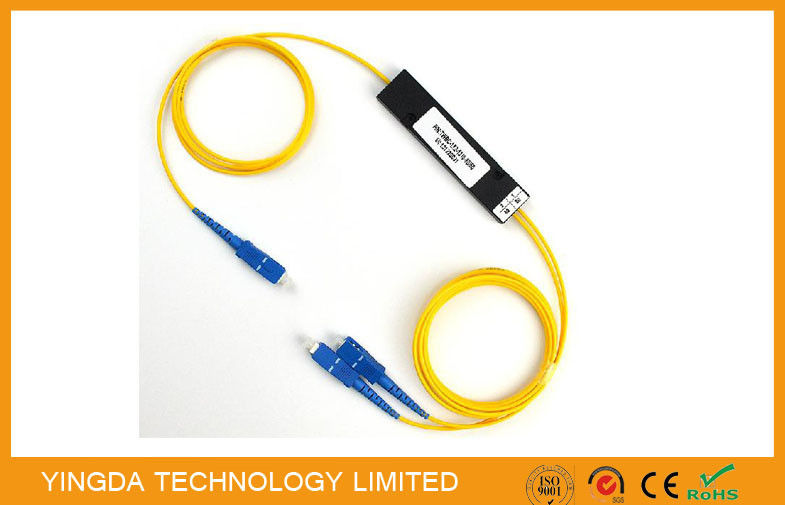

Fiber Optic PLC Splitter 1X2 Single Mode Dual Window FBT Coupler

Features

Long-haul telecommunications
CATV systems & Fiber sensors
Local area network

Performance Specifications

Coupling Ratio(%)	1-50
Directivity (dB)	>55 dB
Operating Temperature	-20 ° C - 85 ° C
Storage Temperature	-40 ° C - 85 ° C
Fiber Type	Corning Single mode SMF-28 , DS Fiber, or Flexcore
Fiber Pigtail Length (m)	1meter or on customer request
Port Configuration	1x2 or 2x2
Package Dimension	Package A, B, C

Coupling Ratio/Insertion Loss Conversion Chart

Coupling Ratio	Insertion Loss
Coupling Ratio	Premium	A Grade
40/60	4.7/2.7	5.0/2.9
30/70	6.0/1.9	6.4/2.1
20/80	7.9/1.2	8.4/1.4
10/90	11.3/0.5	12.7/0.8
5/95	15.2/0.4	18.5/0.5
1/99	22.5/0.3	23.0/0.4

FTB Fiber Optic Application

Low excess loss
Various coupling ratio
Compact size

Single mode Dual Window Broadband Couplers

Grade	P	A
Excess Loss (Typical )(dB)	0.10	0.15
Maximum Insertion loss (dB)	3.6	3.8
Uniformity (Max.) (dB)	0.7	1.0
Polarization Sensitivity (dB)	0.10	0.15
Operating Wavelength (nm)	1310 /1550 + 40

Order Information

Type

Grade

Wave-

length

Coupling

Ratio (dB)

Port

Package

Pigtail Style

Fiber Type

In/Out

Connector

S
W

P
A

35=1310/

1550nm
36=1310/

1585nm

50=50/50
30=30/70
10=10/90
05=5/95
01=1/99

0102=1x2
0202=2x2

A=Package A
B=Package B
C=Package C

0=Bare Fiber
1=900µm Jacket
2=2mm Cable

3=3mm Cable

0=SMF-28
D=DS Fiber

0=None
1=FC/APC
2=FC/PC
3=SC/APC
4=SC/PC
5=ST
6=LC

* Type:

S -- Single mode Standard Coupler
W -- Single mode Broadband Coupler

Fiber Optic PLC Splitter Single Mode 0
