Vertical Dome Fiber Optic Closure Splice 48 Core Joint Box Fiber Optic Closures

MOQ: 100 PCS
Price: Negotiable
Standard Packaging: 1pc / box, 10pcs/ carton box
Delivery Period: 5days after pay
Payment Method: T/T or western Union
Supply Capacity: 50,000pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO, SGS
Model Number
GJS-D015B
Shape:
Dome Vertical
Max Capacity:
48cores
Cable Port:
1 Oval + 4 Round Port
Cable Diameter:
Φ8mm～Φ18 Mm
Material:
PC+ABS
Splice Tray Qty:
Max. 4pcs
Closure Dimension:
310*140 Mm
Weight:
2.0 Kgs
Sealing Method:
Heat Srhinkable Tube
Waterproof Class:
IP68
Environment:
Aerial, Direct Buried, Pipelined, Wall, Underground, Manhole
Tension Force:
50N
Highlight:

Vertical Dome Fiber Optic Splice Closure

,

48 core Fiber Optic Splice Closure

,

Joint Box Fiber Optic Splice Closure

Product Description

48 core Vertical Dome Fiber Optic Closure Splice Box Fiber Optic Closures



This Installation Manual suits for the Fiber Optic Splice Closure (Hereafter abbreviated as FOSC), as the guidance of proper installation.





FTTH Mini Closure Features



Product Name: 48 core fiber optic splice closure
Material: ABS+PC
Dimension (mm): 310(l)*200(w)*140mm(h)
Weight: 2KG
Ambient temperature: - 40 °C ~ + 60 °C
Atmospheric pressure: 70kPa~106kPa
Tensile strength: >1000N
Product performance: good sealing, easy to open repeatedly, reliable grounding protection, high strength, direct buried or overhead installation, full protection of optical cable





Fiber Optic Joint Box Specification



Model GJS-D015
Environment Aerial, direct buried, pipelined, wall, underground, manhole
Splice Capacity 12 Cores
Splice Trays 4 Pcs
Cable entry ports 5 Ports (Max Φ18mm, 2 Ports For Uncut Access)
Protection Level IP68
Color Black
Body Material PP
Dimension H × D = 310 × Φ140 mm
Operating tempertaure -10~+70℃
Incoming Cable Port 4x(Φ10~14mm), 1x Mid-span 10~14mm
Tension force 50N
Electric Screw grounding system
Seal Mechanical, brooches optional 2 screws

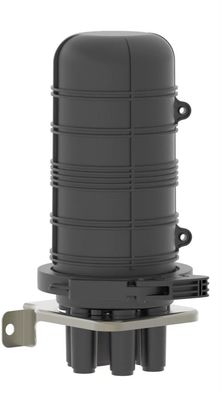

Vertical Dome Fiber Optic Closure Splice 48 Core Joint Box Fiber Optic Closures 0

The splice closure is total closed with self-lock clamp, and IP68 waterproof ring, each cable port internal with metal screws and fixtures.



-------------------------------------------------------------------------------------------------------------------------------------------------------

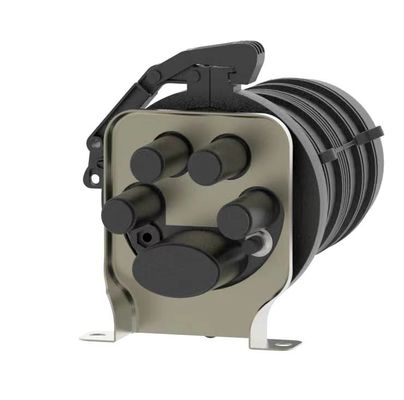

Vertical Dome Fiber Optic Closure Splice 48 Core Joint Box Fiber Optic Closures 1

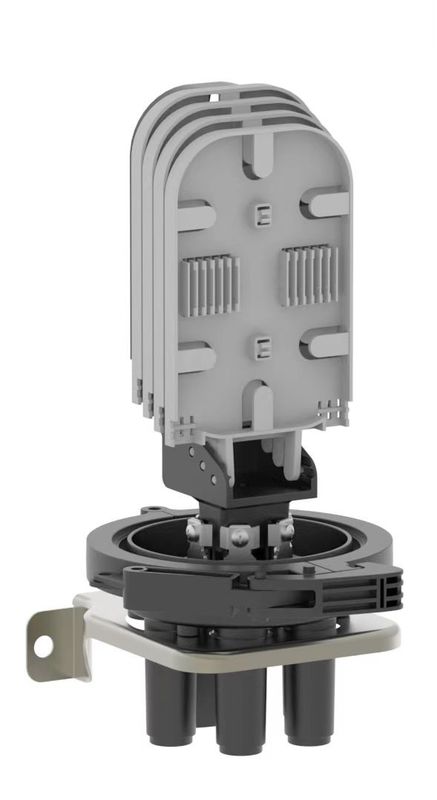

Max. hold 4pieces splice trays, each tray hold 6fibers/layer, dual fiber 12cores,  maximum 48cores in total; The back fiber holding tray is fix on bottom with screws and large management area.

--------------------------------------------------------------------------------------------------------------------------------------------------------

Vertical Dome Fiber Optic Closure Splice 48 Core Joint Box Fiber Optic Closures 2

--------------------------------------------------------------------------------------------------------------------------------------------------------



Fiber Optical Junction Box Application: aerial, underground, pipeline,hand hole, wall mount, pole mount.









Vertical Dome Fiber Optic Closure Splice 48 Core Joint Box Fiber Optic Closures 3

-------------------------------------------------------------------------------------------------------------------------------------------------



Operation conditions:

  1. Temperatures: -40℃~+65℃
  2. Humidity: ≤95% (at 40℃)
  3. Air Pressure: 70kPa ~106kPa





Fiber Enclosure Box Detail pictures:

Vertical Dome Fiber Optic Closure Splice 48 Core Joint Box Fiber Optic Closures 4

Vertical Dome Fiber Optic Closure Splice 48 Core Joint Box Fiber Optic Closures 5
