Fiber Optic Splice Closure
Created with Pixso. FRB-6A Fiber Optic Splicing Box 12 Cores 1in 1out Splice Closure Black IP65 Wall Mounted
FRB-6A Fiber Optic Splicing Box 12 Cores 1in 1out Splice Closure Black IP65 Wall Mounted
  • Name
  • Name
  • Name

FRB-6A Fiber Optic Splicing Box 12 Cores 1in 1out Splice Closure Black IP65 Wall Mounted

Brand Name: YINGDA
Model Number: FRB-6A
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
ISO
Material:
PC ABS
Color:
Black
Max Capacity:
12 Cores
Product Type:
Fiber Optic Splice Closure
Protection Grade:
IP65
Application:
Outdoor Wall Mounting
Highlight:

12 Cores Fiber Optic Splicing Box

,

IP65 Fiber Optic Splicing Box

,

1in 1out Optic Splicing Box

Product Description

FRB-6A Fiber Optic Splicing Box 12 Cores 1in 1out Splice Closure Black IP65 Wall Mounted





FRB-6A Fiber spling Box is used for optic fiber connection. Maximum 12pcs splicing sleeves can be accommodated in the box and meanwhile it provides solid protection and management for the splicing point.



FRB-6A Splice Closure Features

  • Water-proof design with IP65 Protection level.
  • Integrated with splice cassette and cable management system.
  • Manage fibers in a reasonable fiber radius condition.
  • cable go in and out without cutting off, humanity design
  • light weight, compact size
  • outdoor wall mounted with expansion blots
  • made of high strength engineering plastic, high impact resistance, long lasting



FRB-6A Splice Closure Specification

Model FRB-6A
Dimension (L×W×D) 190*98*21 mm
Material PC+ABS (anti UV)
Cable ports 1in 1out
Cable diameter Round cable max. diameter 8.0mm
Color Black
Splicing capacity 12 cores (double fiber)
Installation method Wall mounting

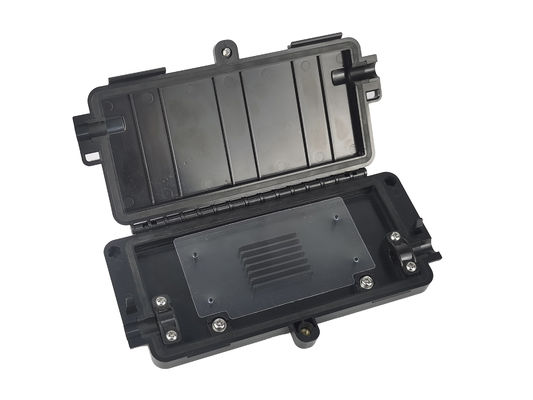

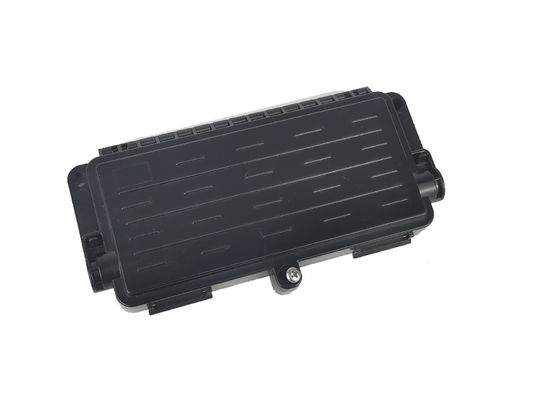

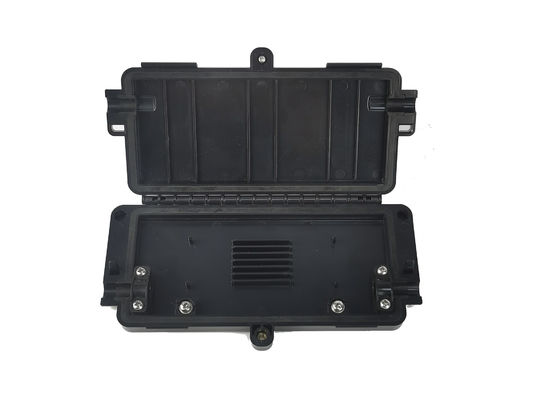

FRB-6A Splice EnClosure



FRB-6A dimension

FRB-6A SPLICE TRAYFRB-6A PRODUCT DETAILS



















Tags:

fiber optic splice enclosure

fiber optic joint closure

outdoor splice box
