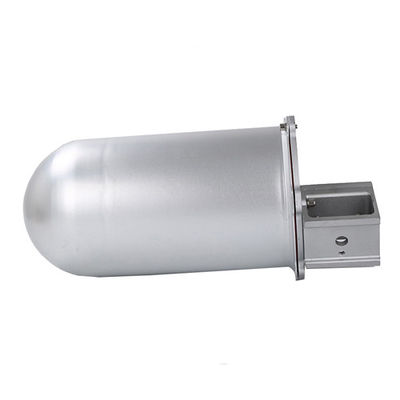

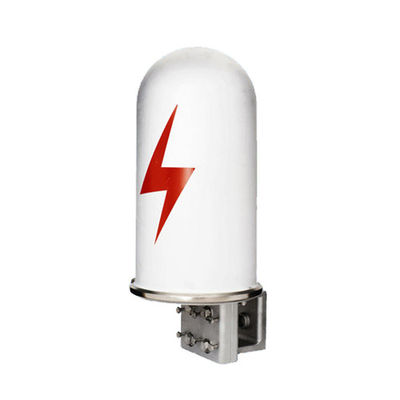

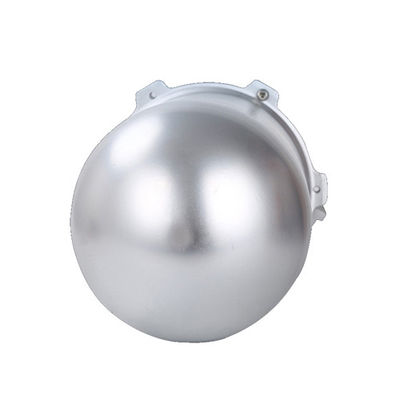

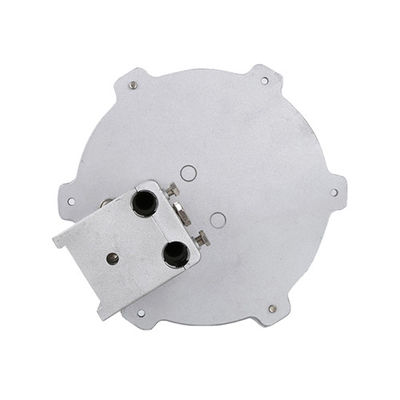

192 Cores Aluminum Alloy Joint Box 4 Ports Fiber Dome Enclosure for OPGW ADSS Cable
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Alluminum Alloy | Warranty | 1 Year |
|---|---|---|---|
| Max Capacity | 192 Cores | Cable Ports | 2in 2 Out, 4 Ports |
| Cable Diameter | 20 Mm | Splice Tray | 4pcs 48core Single Fiber Trays |
| Dimension | 480*200mm | ||
| High Light | Aluminum Alloy Fiber Dome Enclosure,OPGW ADSS Cable Fiber Dome Enclosure,4 Ports Aluminum Alloy Joint Box |
||
Product Description
192 Cores Aluminum Alloy Joint Box for OPGW ADSS Cable Dome Enclosure 4 Ports
This fiber optic joint box is is commonly used in power delivery and communication transmission applications within fiber optic communication infrastructure, especially suitable for the connection protection of power special optical cables OPGW (Optical Ground Wire) and ADSS (all dielectric self-supporting overhead cable) in outdoor environments. The product has the functions of direct connection and branch connection, and is suitable for overhead poles and towers. Life span is 25 years.
Features
- The fiber optic cable joint and excess length adopt a feeding type fiber storage joint, and the protection form is heat shrink tube reinforcement;
- The joint box adopts sealing rings and silicone seals, easy to operate, repeatedly opened, expanded, repaired, reconnected, etc.
- Max. load 4pcs splice trays, the capacity of a single splice tray can reach 48 cores;
- The joint box will equipped with a dedicated installation brackets for tower or pole;
- The fiber optic splice tray adopts an aluminum bracket, which is lighter to use and avoids accidents caused by plastic bracket breakage;
- The inlet nozzle is processed by a precision lathe, which greatly improves the sealing performance and avoids damage to the optical fiber;
- The alloy shell adopts electrochemical treatment, with a glossy appearance, smooth and not harmful to hands, corrosion resistance, and excellent performance
- High mechanical strength, good sealing performance, alloy shell with electrochemical treatment, corrosion resistance, and excellent performance;
- The optical cable is fixed with adjustable diameter adjustable washers for clamping to prevent damage to the cable;
- Can be installed in different parts of the iron tower, firmly installed;
- The installation of the pole is fixed with stainless steel straps, which is easy to operate and suitable for installation in different pole diameters and positions
Specification
| Model | OPGW-D001 |
| Dimension(H*D) | 440±20mm*Φ200mm |
| Max capacity | 192cores (single fiber) |
| Max splice tray | 4 pcs |
| Splice tray capacity | 48 cores (dual layer) |
| Cable ports | 2port, 4ports, 6ports |
| Cable diameter | Φ8-18.5mm |
| Fiber winding length | ≥1.5meter |
| Fiber winding additional loss | ≤0.01dB |
| The fiber radius of curvature | ≥47mm |
| Application | Electric power and communication industries |
| Material | Aluminium alloy |
| Color | Silver |
| Working temperature | -40~+80℃ |
| Tightness | 100Kpa |
| Resistance to lateral pressure | ≥2000N |
| Crush resistance | 2000N/10cm |
| Net weight | 4-5.8kg |
Product Details
Applications
Installation Methods
Metal joint box for pole Metal joint box for tower
