Good price online

products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Fiber Optic Splice Closure
Created with Pixso. Small type 2in 2out Inline Fiber Optic Splice Closure 12 24 Cores IP68
Small type 2in 2out Inline Fiber Optic Splice Closure 12 24 Cores IP68
  • Name
  • Name
  • Name
  • Name

Small type 2in 2out Inline Fiber Optic Splice Closure 12 24 Cores IP68

Brand Name: YINGDA
Model Number: GJS-H12
MOQ: 100 units
Price: Negotiable
Delivery Time: 7days after get payment
Payment Terms: T/T, Money Gram, Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
china
Certification:
ISO, CE
Dimension:
300*120*55MM
Cable Ports:
2in 2out
Max Capacity:
24 Cores Fiber Optic Enclosure
Tray Quantity:
2
Tray Capacity:
12 Cores Single Fiber
Color:
Black
Type:
Horizontal
Material:
ABS/PP
Packaging Details:
1pc / box, 10 pcs / carton box
Highlight:

Fiber Optic Splice Closure IP68

,

24 Cores Fiber Optic Closure

Product Description

12 24Cores Inline Horizontal Fiber Optic Joint Enclosure 2in 2out Aerial Mount



The product can be applied in the straight line and branch line(one into two, one into three)connections of optical cables(single fiber and ribbon fiber) within the diameter of 16mm(φ), all types and structures, when laid overhead ,in the pipeline, underground or in the well. Meanwhile, it is also applied to the connection of all-plastic city phone cables.





12 Core Fiber Optic Closure Specification

Model GJS-H12
Dimension 300*120*55mm
Cable ports 2in 2out
Tray capacity 12 cores (single fiber)
Tray quantity 2pcs
Max capacity 24cores(single fiber)
Optical fiber winding radius ≥40mm
Extra loss of fiber tray ≤0.01dB
Working temperature - 200C ~ + 600C
Lateral pressure-resistance ≥2000N / 10cm
Shock-resistance ≥20N.m



12Core Fiber Splice Closure Application

  • Aerial, underground, pipeline, handhole, etc

Small type 2in 2out Inline Fiber Optic Splice Closure 12 24 Cores IP68 0

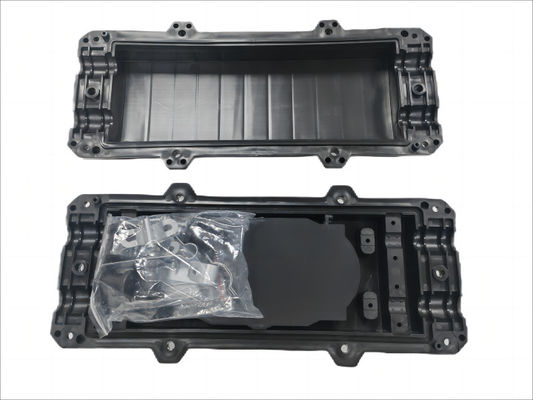

Standard mounting kits at back, hinge design to ensure the box and cover in a unibody, no need to remove

-----------------------------------------------------------------------------------------------------------------------------------------------------

Small type 2in 2out Inline Fiber Optic Splice Closure 12 24 Cores IP68 1

There are 2*cable glands each side, cable diameter φ16mm with grommets and fixtures inside of the box, better protection and waterproof.

-----------------------------------------------------------------------------------------------------------------------------------------------------

Small type 2in 2out Inline Fiber Optic Splice Closure 12 24 Cores IP68 2

This fiber optic splice closure is inline type, total 8pcs 12core splice tray overlapped into 96cores. The trays all fix on bottom integrated plate with screws.

-----------------------------------------------------------------------------------------------------------------------------------------------------

 Small type 2in 2out Inline Fiber Optic Splice Closure 12 24 Cores IP68 3

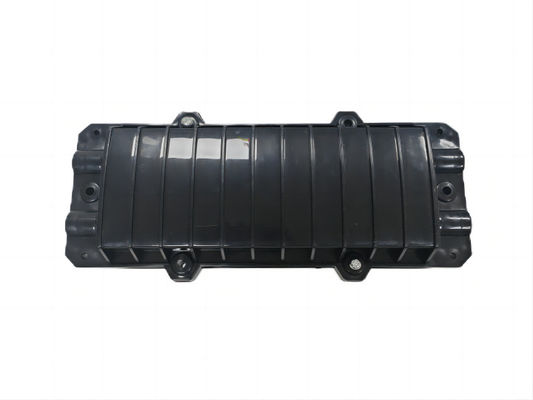

This horizontal splice closure is locked with screw rods all around, which ensure underground application good waterproof function. It can be opened easily with an Allen key.

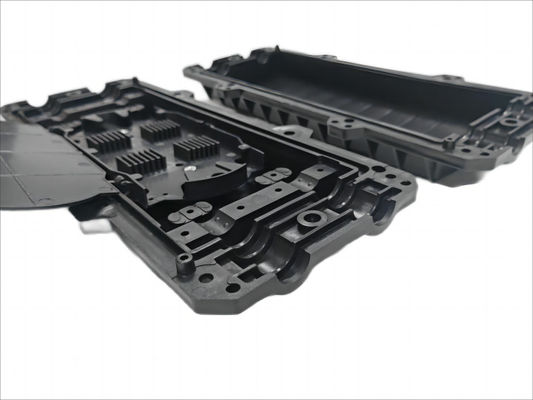

Internal plastic part is a complete set, whole set can be take out by hand, no need special tool.

Small type 2in 2out Inline Fiber Optic Splice Closure 12 24 Cores IP68 4

Main body 1set
PVC tape 1roll(optional)
Label 1-2pcs (configuration on request)
Heat shrink protection sleeve 1-24pcs (configuration on request)
Handing tool 1set
Rubber seal 0-2pcs(optional)
English instruction 1pc
Cable ties 1-32pcs(optional)





Tags:

fiber optic splice enclosure

fiber optic joint closure

outdoor splice box
