24-144 Cores Heat Shrink Dome Fiber Optic Splice Closure 1 Oval 8ports IP68 For Pole Duct

  • 24-144 Cores Heat Shrink Dome Fiber Optic Splice Closure 1 Oval 8ports IP68 For Pole Duct
  • 24-144 Cores Heat Shrink Dome Fiber Optic Splice Closure 1 Oval 8ports IP68 For Pole Duct
  • 24-144 Cores Heat Shrink Dome Fiber Optic Splice Closure 1 Oval 8ports IP68 For Pole Duct
  • 24-144 Cores Heat Shrink Dome Fiber Optic Splice Closure 1 Oval 8ports IP68 For Pole Duct
  • 24-144 Cores Heat Shrink Dome Fiber Optic Splice Closure 1 Oval 8ports IP68 For Pole Duct
Place of Origin china
Brand Name YINGDA
Certification ISO, SGS, CE
Model Number GJS-9501-B8
Minimum Order Quantity 1PC
Price Negotiable
Packaging Details 1pc / box, 4 pcs/ carton box
Delivery Time 12-15 days after pay
Payment Terms T/T or western Union
Supply Ability 50,000pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Shape Dome Heat Shrinkable Splice Closure Max Capacity 144 Fibers Optic Splice Box
Cable Port 1 Oval 8 Round Ports Cable Diameter Φ11mm～Φ25 Mm
Material PP Or PP+GF Body, ABS Splice Tray Splice Tray Qty Max. 6 Pcs 24 Fiber Splice Tray
Closure Dimension 460*φ225mm Sealing Method Heat Shrink Tube
Waterproof Class IP68
High Light

Dome Fiber Optic Splice Closure IP68

,

144 Cores Dome Splice Closure

,

Dome Splice Closure For Pole Duct
Leave a Message
Product Description

24-144 cores Heat Shrink Dome Fiber Optic Splice Closure 1 oval 8ports IP68 for Pole Duct



GJS-9501-B Fiber Optic Splice Closure (FOSC) is a dome type optical fiber cable splice closure. The cables and the
closure are sealed in a mechanical or heat shrink way with the help of compacting pressure from the plastic screws
(nuts) and the circular plastic hoop. This model is suitable for different methods of branch connection, including
branching and splicing of uncut cables, it can also be used for splitting function with adapters internal.



Dome Fiber Optic Enclosure Specification

Model GJS-9501-B
Dimension 460*φ225mm
Max capacity 144cores (single fiber), 432/576cores (ribbon)
Cable ports 1oval+8round ports
Cable diameter Oval: φ8-25mm; round:φ8-18mm
Material Body: PP+GF, Tray: ABS
Seal material Vualcanized silicone rubber
Tray capacity 24cores single fiber
Tray qty 6pcs
IP grade IP68
Net weight 3.5-4.5kg





144 Cores Fiber Optic Splice Closure Features

Different cable ports can be available, such 1oval+4round, 1oval+6round ,1 oval+8round in heat shrink or mechanical sealing,
good in practicality.
It applies to various ways of bifurcations including bifurcation of uncut cable.
It applies to the installation of Φ8~18 cable.
Ribbon cable is available, which can be installed with 6C or 12 C ribbon cable, corresponding max capacity is 432
core, 576 core.

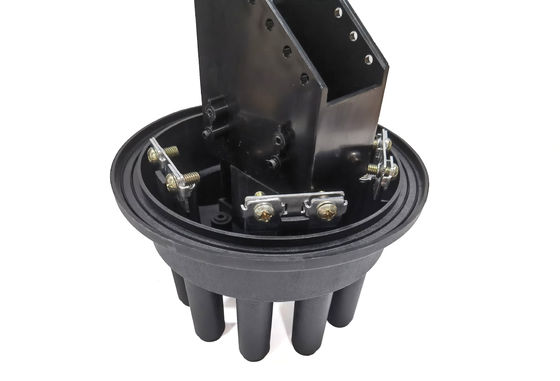

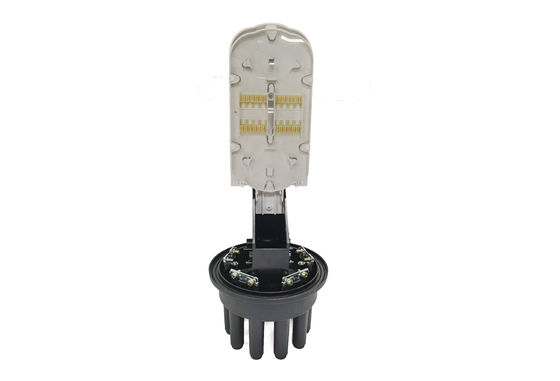

24-144 Cores Heat Shrink Dome Fiber Optic Splice Closure 1 Oval 8ports IP68 For Pole Duct 024-144 Cores Heat Shrink Dome Fiber Optic Splice Closure 1 Oval 8ports IP68 For Pole Duct 1



Optional accessories

Hanging hook, Wall mounting (Duct mounting) kits, Pole Mounting kit, Grounding device, Air valve

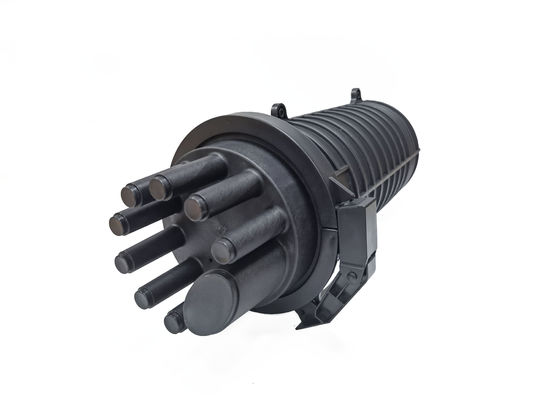

24-144 Cores Heat Shrink Dome Fiber Optic Splice Closure 1 Oval 8ports IP68 For Pole Duct 2

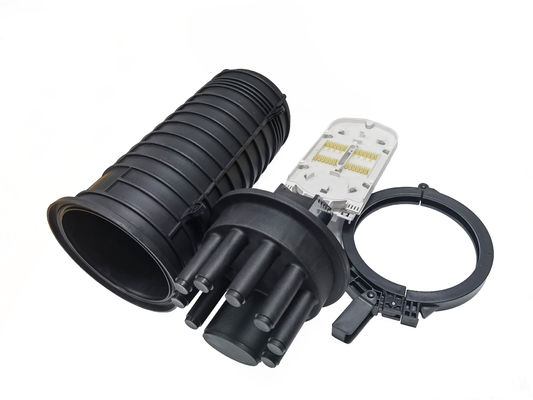

24-144 Cores Heat Shrink Dome Fiber Optic Splice Closure 1 Oval 8ports IP68 For Pole Duct 3

24-144 Cores Heat Shrink Dome Fiber Optic Splice Closure 1 Oval 8ports IP68 For Pole Duct 424-144 Cores Heat Shrink Dome Fiber Optic Splice Closure 1 Oval 8ports IP68 For Pole Duct 5

  • Wide application like Underground, Aerial mount, Vault, Pole Mount,Wall Mount, etc ,will configurate as customer request.

FOSC Fiber enclosure Order Information:

GJS-9501-XX-XX-X

GJS-9501-Capacity(12,24,36,48,72fiber...)-splice tray(01-=1pc,02=2pcs...)-accessories(S=standard;O=optional,on customer request)--cable port(1+4,1+6,1+8), Seal type(heat shrink or mechanical sealing



Product pictures:

24-144 Cores Heat Shrink Dome Fiber Optic Splice Closure 1 Oval 8ports IP68 For Pole Duct 624-144 Cores Heat Shrink Dome Fiber Optic Splice Closure 1 Oval 8ports IP68 For Pole Duct 7

24-144 Cores Heat Shrink Dome Fiber Optic Splice Closure 1 Oval 8ports IP68 For Pole Duct 824-144 Cores Heat Shrink Dome Fiber Optic Splice Closure 1 Oval 8ports IP68 For Pole Duct 9
