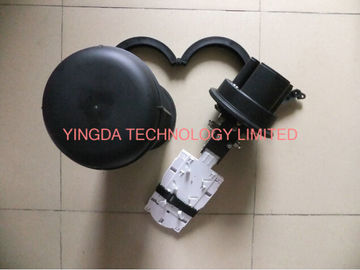

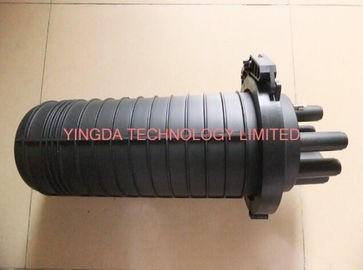

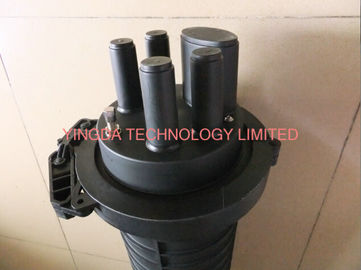

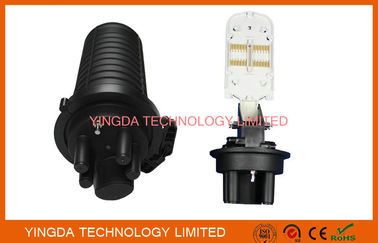

144Cores Fiber Optic Splice Closure , PP Aerial Fiber Optic Splice Box 6 Pcs
  • name
  • name
  • name
  • name

144Cores Fiber Optic Splice Closure , PP Aerial Fiber Optic Splice Box 6 Pcs

MOQ: 100 PCS
Price: Negotiable
Standard Packaging: 1pc / bag, 6pcs / carton box
Delivery Period: 5days after pay
Payment Method: T/T or western Union
Supply Capacity: 50,000pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO,SGS
Model Number
204A/B
Capacity:
144Cores / Fibers
Material:
PP
Cable Port:
1 Oval + 4 Round Ports
Color:
Black
Sealing:
Heat Shrink Tube Seal
Splice Tray:
6 Pcs
Dimension:
450x230 Mm
Cable Diameter:
8-24mm
Highlight:

fiber optic splice enclosure

,

fiber optic joint closure

Product Description

Aerial PP Dome Vertical Fiber Optic Splice Closure FOSC 204 144 Cores Fibers





Features

  1. May be used for cut, uncut and taut sheath applications.
  2. May be used for all fiber optic cable.
  3. Sheath retention & central strength member termination system included.
  4. Ribbed closure construction-lightweight plastic offers strength and
  5. resistance to chemical and U.V attack
  6. Installation and reentry with a minimum of tools
  7. All hardware are captivated
  8. Closure can be flash tested
  9. Protection class: IP68
  10. ROHS compliance



Application

  • Underground, Aerial, Vault, Pole Mounting and Wall Mounting



Specification



Model No

Max capacity

(single fusion)

Splice tray

Size

(Hx D)

Cable ports

Max cable diameter

FOSC-204A

144 fiber

(6x24)

Tray 204A

Capacity:24 fiber

450x230

mm

1 oval port +

4 round ports

1 oval port for

1 looped cable

with max:24mm.

4round ports ,

each port for 1cable

with max:17.5mm

FOSC-204B

144 fiber

(6x24)

Tray 204B

Capacity:24 fiber



Standard accessories



Dome,Base,clamp,O-ring,metal storage basket,Splice Tray,,Heat shrink protective sleeve,

buffer tube,Cable ties,Grounding wire,Labeling paper,Installation Manual,



1 set of Oval port closing kits:

Including 1 heat shrink fixing tube+ 2pcs of Aluminum paper(10cm x 10 cm)+sand paper(2.5 x30mm)

+ 2 bags cleaning tissue+ branching clip etc



4 sets of Round port closing kits:

Including 1 heat shrink fixing tube+1 pc of Aluminum paper(10cm x 10 cm)+sand paper etc



Optional accessories



  • Pole Mounting kit,Aerial mounting kit Grounding device,Air valve



Order information:



FOSC-204X-XX-XX-X

FOSC-204(A,B,C)-Capacity(12,24,36,48,72fiber...)-splice tray(01-=1pc,02=2pcs...)-accessories(S=standard;O=optional,on customer request)
