96 Cores Horizontal Fiber Optic Joint Closure Pole Mount , Fiber Optic Junction Box

96 Cores Horizontal Fiber Optic Joint Closure Pole Mount , Fiber Optic Junction Box

  • High Light

    fiber optic splice enclosure

    ,

    fiber optic joint closure

  • Capacity
    96cores
  • Material
    PC
  • Cable Port
    2pcs
  • Color
    Black
  • Sealing
    Rubber Seal
  • Splice Tray
    4pcs
  • Dimension
    280x200x90 (mm)
  • Cable Diameter
    Φ8—Φ14 (mm)
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO,SGS
  • Model Number
    H003
  • Minimum Order Quantity
    100 PCS
  • Price
    Negotiable
  • Packaging Details
    1pc / bag, 10pcs / carton box
  • Delivery Time
    5days after pay
  • Payment Terms
    T/T or western Union
  • Supply Ability
    50,000pcs per month

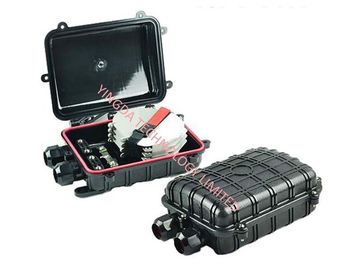

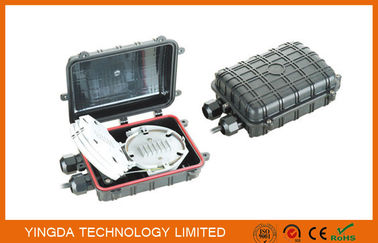

96 Cores Horizontal Fiber Optic Joint Closure Pole Mount , Fiber Optic Junction Box

Horizontal Fiber Optic Joint Closure, Pole Mount Closure 96 Cores,

Fiber Optic Junction Box H003





Features

  1. Compact size, large capacity to 96 Fibers
  2. Easy to re-enter and repair
  3. 2pc cable exit and entry ports
  4. Pressure testing valve and earth deriving device available on requests
  5. Intergrated seal, air tight and water proof
  6. RoHS compliant
  7. Can be used in through, branch or mid span splice locations
  8. Suitable for aerial, underground duct or direct burial applications



Specification



Outside dimension (LxWxH)

280x200x90 (mm)

Weight (excluding outside box)

1200g-1500g

Number of inlet/outlet ports

max. 4 pieces

Diameter of fiber cable

Φ8—Φ14 (mm)

Capacity of FOSC

Bunchy: 6—96 (Cores)

Material

PC

Working / Storage temperature

-40 to 65℃.

Splice tray capacity

Bunchy:6,12,24(cores)



Application: aerial and wall-mounting



Main Accessory List:



Name of accessories

Usage

Heat shrinkable protective sleeve

Protecting fiber splices

Nylon tie

Fixing fiber with protective coat

Seal tape

Enlarging diameter of fiber  cable which

fits in with seal fitting

Hanging hook

For aerial use

Fixing device



Earthing wire

Putting through between earthing devices

Abrasive cloth

Scratching fiber cable

Labeling paper

Labeling fiber

Special wrench

Fixing octagonal nut (plastic)

Buffer tube



Hitched to fibers and fixed with FOST, managing buffer

Desiccant

Put into FOSC before sealing for desiccant air.
