MPO / MTP - LC Fan Out Fiber Optic Cable 0.9mm SM Simplex Fiber Cable
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xConnector | Simplex MPO MTP Male | Fiber Type | OS1 9/125UM |
---|---|---|---|
Cable Type | Bundle Cable | Fiber Count | 12 Fibers LC Simplex |
Insertion Loss | <0.3dB | Interchangeability | ≤0.2dB |
High Light | MPO LC Fan out cable,MTP LC Fan out cable,0.9mm fan out fiber optic cable |

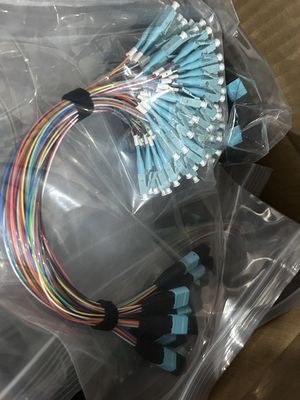

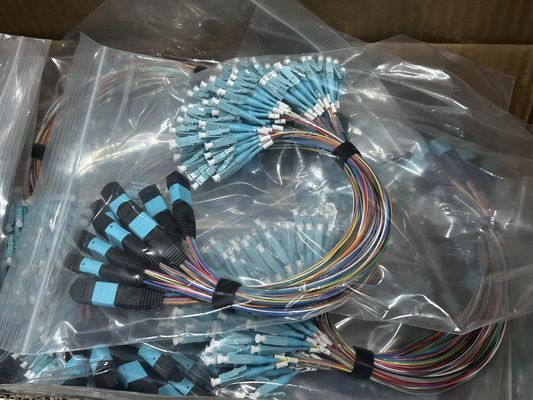

12 Fibers Breakout MPO / MTP -LC Harness Patch Cord Cable 0.9mm SM
Description
YINGDA MPO / MTP Fan-out patch cords are simplex multi-fiber Cable using the MPO / MTP connector in fiber counts of 4, 8, 12, 24 or 48. There is Male or Female MPO / MTP connectors
on each end, the other end is standard connectors like FC, SC, ST, LC,etc, connect both is break-out kits, which can be round or square type, all on customer request.
MPO Available in 4~48 fibers versions as well as multi-mode (62.5/125, 10G OM2 / OM3 / OM4, Bend-insensitive fiber, etc.) and single-mode (G652D, G657A1 etc.) fiber types.
YINGDA products are 100% tested at our factory to deliver optimal performance and reliability.
Features
- MPO / MTP connector interface patchcord.
- Choices of different cable structure to cater for different installation needs.
- Available in 4/8/12/24/48 cable fibers from round or ribbon optical cable.
- Improves and simplifies fiber routing, decreases fiber management space.
- Comply with IEC 61754-7, Telcordia GR-1435-CORE, RoHS.
Specification
|
Single mode |
Multimode |
Insertion Loss |
≤0.3dB |
≤0.3dB |
Return Loss |
≥50dB (PC) |
≥20dB |
Repeatability |
≤0.1 |
≤0.1 |
Durability |
≤0.2 dB typical change, 1000 matings |
≤0.2 dB typical change, 1000 matings |
Interchangeability |
≤0.2dB |
≤0.2dB |
Tensile strength |
≥10kg |
≥10kg |
Operating Temperature |
-40 to + 80°C |
-40 to + 80°C |
Storage Temperature |
-40 to + 80°C |
-40 to + 80°C |
Application
- Telecommunication networks
- Data centers
- Supports SFP, QSFP, CFP applications
- 40G to 10G transition
- CATV;
- Active device termination;
- Telecommunication networks;
- Metro;
- Local Area Networks;
- Data processing networks
- Test equipment;
- Premise installation;
- Wide Area Networks
Order information
P/N |
Description |
MPOmA-12LC-S62 |
MPO Fan-out patch cord, OS2 (G652D), MPO/APC Male-12xLC UPC 1m Yellow |
MPOmA-62LC-S62 |
MPO Fan-out patch cord, OS2 (G652D), MPO/APC Male-6xDuplex LC UPC 1m Yellow |
MPOmA-12LC-S67 |
MPO Fan-out patch cord, SM (G655A), MPO/APC Male-12xLC UPC 1m Yellow |
MPOmA-62LC-S67 |
MPO Fan-out patch cord, SM (G655A), MPO/APC Male-6xDuplex LC UPC 1m Yellow |
MPOm-62LC-S62-U |
MPO Fan-out patch cord, OS2 (G652D), MPO/APC Male-6xDuplex LC UPC 1m Yellow uni-boot |
MPOm-62LC-S67U |
MPO Fan-out patch cord, SM (G655A), MPO/APC Male-6xDuplex LC UPC 1m Yellow uni-boot |
Assembly cable structure
