MTP MPO Cable 12 Fiber Cassette with MPO Male Female LC Connector For Patch Panel

MOQ: 100 pcs
Price: 0.2USD-100USD
Standard Packaging: 1 pc/ box, 5 pcs / carton box
Delivery Period: 7days after payment
Payment Method: Western Union,T/T
Supply Capacity: 10,000 pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO SGS ROHS
Model Number
MPO Cassette MPO to LC
Industry Type:
FTTX Data Center Solution
Product Name:
MPO To LC Cassette
Connector:
MPO MTP - LC SC FC ST
Max Capacityy:
12 Fibers SC, 24 Fibers LC
Application:
Data Center, High Density
Cable Length:
1meter/ 1.5meter
Cable Diameter:
0.9mm
Fiber Type:
SM OM1 OM2 OM3 OM4
Highlight:

12 Fiber MTP MPO Cable

,

MTP MPO Cable Cassette

,

LC Connector MTP MPO Cable

Product Description





The MPO module Cassettes are mainly used to divide the 12 or 24 fibers MPO connector of the- pre assembled terminal end to the simplex or duplex standard connector. By using the simplex or duplex patch cords, the output of the modules can be directly connected with the equipment, frame or the client end.



MPO Connector Specification



Insertion loss (dB) SM standard SM Elite MM standard MM Elite
Return loss (dB) ≤0.7 ≤0.35 ≤0.7 ≤0.35
Durability (dB) ≥60 ≥60
Tensile strength (kgf) 10
Working temperature (°C) -20~+70
Measurement wavelength (nm) 1310 850
Geometry Parameters
Item X-axis Y-axis
Min Max Min Max
Radius of curvature (mm) 500 - 50 -
Polishing angle 0-0.2 0+0.2 8-0.2 8+0.2
Item Min Max
Fiber height (nm) 1000 3000
Max fiber height error (nm) 600
Adjancent fiber height error (nm) -300 +300
Avg. Fiber height error(nm) -300 +300
Central concave (nm) 300








12 MPO Cassette Features

  • Adopts high quality engineering plastics and Aluminum alloy material, with electrostatic plating
  • surface, outstanding in appearance and users friendly.
  • MPO face plate can be upgraded easily.
  • All the front ports are with mark no. , easy to identify.
  • Quick and easy installed, flexible in configuration and easy to management





 MPO LC Cassette Application

  • Data Centre Infrastructure
  • Storage Area Network-Fiber Channel
  • Emerging 40 100Gps Protocols
  • Parallel optics

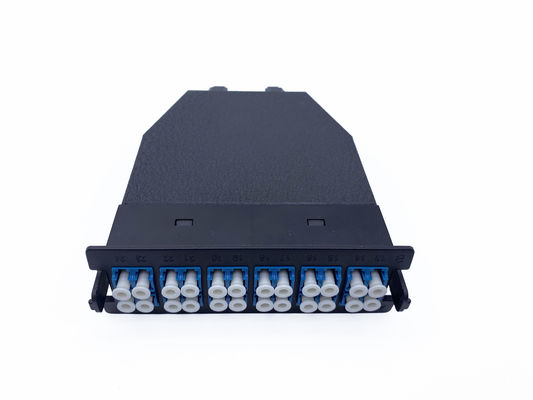

MTP MPO Cable 12 Fiber Cassette with MPO Male Female LC Connector For Patch Panel 0


MPO Cassette Dimension:



MTP MPO Cable 12 Fiber Cassette with MPO Male Female LC Connector For Patch Panel 1







MTP MPO Cable 12 Fiber Cassette with MPO Male Female LC Connector For Patch Panel 2

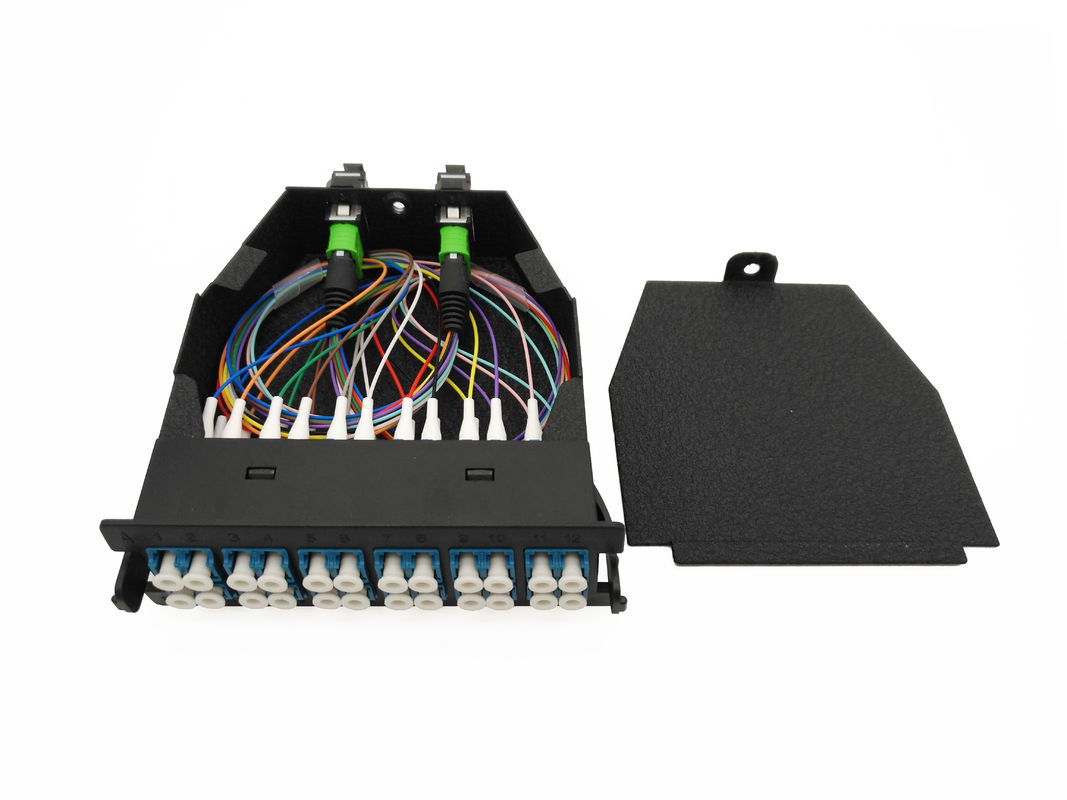

Max capacity 24 cores, 2pcs MPO 12cores adapter and 12pcs LC Duplex adapter, Connector can be SM,OM3,OM4,OM5 fiber





MTP MPO Cable 12 Fiber Cassette with MPO Male Female LC Connector For Patch Panel 3

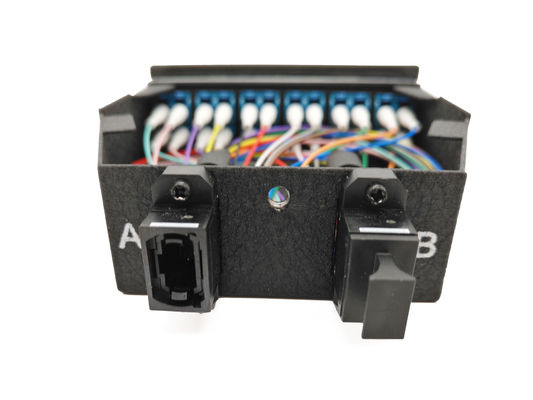

Fully loaded with MPO adapter, MPO to LC harness patch cable 12fibers and LC duplex adapter



MTP MPO Cable 12 Fiber Cassette with MPO Male Female LC Connector For Patch Panel 4

How to insert the cassette to patch panel?

Press down both sides, and insert in patch panel. Max capacity 96fibers 4pcs mpo cassette module.





More Actual Picture



MTP MPO Cable 12 Fiber Cassette with MPO Male Female LC Connector For Patch Panel 5MTP MPO Cable 12 Fiber Cassette with MPO Male Female LC Connector For Patch Panel 6MTP MPO Cable 12 Fiber Cassette with MPO Male Female LC Connector For Patch Panel 7





Packing & Shipping



MTP MPO Cable 12 Fiber Cassette with MPO Male Female LC Connector For Patch Panel 8MTP MPO Cable 12 Fiber Cassette with MPO Male Female LC Connector For Patch Panel 9
