Low Loss 0.35dB 12 Cores MPO Connector To ST MPO Jumper Type B For Fiber Optic Communication System

MOQ: 100
Price: 0.2USD-100USD
Standard Packaging: Carton box
Delivery Period: 5-8 working days
Payment Method: T/T,AliPay,PayPal
Supply Capacity: 1000 pcs/day
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
China
Brand Name
YINGDA
Certification
CE, ISO9001
Model Number
MPO
Product Name:
MTP MPO Cable
Cable Jacket:
PVC LSZH
Insertion Loss:
≤0.2dB
Storage Temperature:
-40℃~+85℃
Connector Type:
MTP/MPO
Cable Color:
Aqua
Fiber Count:
8, 12,24
Fiber Grade:
OM3,OM4,OM5
Highlight:

12 Cores MPO Jumper

,

Low Loss MPO Jumper

,

Fiber Optic Communication System MPO Jumper

Product Description

MPO Cable Description


MPO fiber optic patch cords are used in dense wiring systems between buildings fiber optic communication systems, LAN cabling active equipment in the optical link interconnection, fiber optic cabling within the communication base station, campus server room commercial building server room, commercial building server room, cable television network, telecommunications network local area network (LAN), wide area network (WAN), fiber to the desktop (FTTX) optical signal connection.


Feature


【High Speed and High Density】This mpo fiber optic cable features premium quality multimode fiber,mpo om5 cables provides a secure and reliable connection,low insertion loss(IL≤0.35dB) and high return loss(RL≥60dB),support 10G/40G/100gigabit


【 MPO Breakout Cable Application】Residential area,industrial park room,commercial building optical signal connection,large data centers,building dense cabling system,fiber optic communication system,cable television network,telecommunication network LAN,GPON/EPON applications,wide area network,fttx


【Safety LSZH Jacket Multimode Fiber 】Our fiber patch cable featuring an lszh low smoke zero halogen jacket material(coefficient of frictionμ<0.2),offers fire resistance and minimal smoke and toxic fume production in case of a fire,and reliably operates within a temperature range of -20ºc to +70ºc


【Fast Delivery】Our MPO patch cable is one of thousands of fiber optic cable assemblies available in-stock and ready to ship. Lead time around 2-3 working days.



MPO Connectors Optical Parameters

Insertion loss(dB)
SM Standard
SM Elite
MM Standard
MM Elite
≤0.7
≤0.35
≤0.7
≤0.35
Return loss(dB)
≥60
≥20
Durability (dB)
≤0.2, 500 times mating
Tensile strength(kgf)
10
Working temperature(℃)
-20 ~+70
Measurement wavelength(nm)
1310
850
Standards
IEC61754-7, IEC61755, Telcordia GR-1435-CORE, JIS C5982, TIA-604-5(FOCIS5), structured cabling per TIA-568-C, 10G fiber channel, 40G and 100G IEEE 802.3, etc
Housing color
Green connectors+black boot
Yellow connector+black boot
OM1&OM2: beige connector+black boot

OM3&OM4:aqua connector+black boot
OM3&OM4: violet connector+black boot


Geometry parameters

Item X-axis Y-axis
Min Max Min Max
Radius of curvature(mm) 500 – 50 –
Polishing angle 0-0.2 0+0.2 8-0.2 8+0.2
Item Min max
Fiber height (nm) 1000 3000
Max fiber height error (nm) 600
Adjacent fiber height error (nm) -300 +300
Avg. fiber height error (nm) -300 +300
Central concave (nm) 300


LC/SC/FC Fiber Connectors

Fiber mode Single Mode Multimode
Connector polishing PC APC PC
Insertion loss (dB) ≤0.3

Return loss (dB) ≥50 ≥60 ≥35
Repeatability(dB) ≤0.2, 1000 times mating
Working temperature(℃) -40 ~+85
Measurement wavelength (nm) 1310 850


12 Cores Fiber Optic Cable 3.0mm Round LSZH

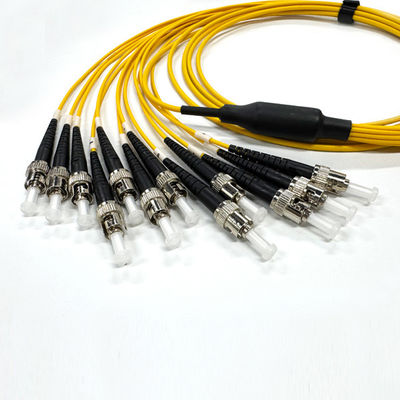

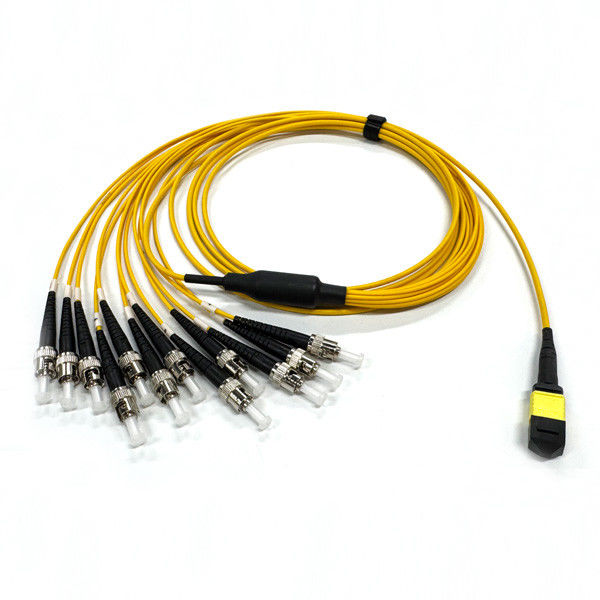

Low Loss 0.35dB 12 Cores MPO Connector To ST MPO Jumper Type B For Fiber Optic Communication System 0



More pictures

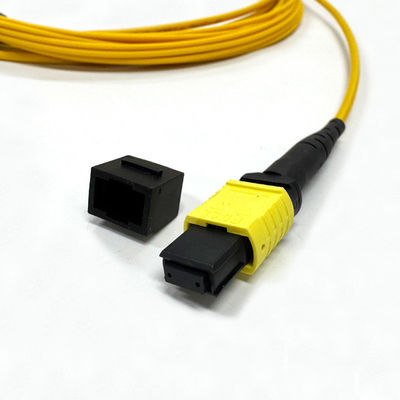

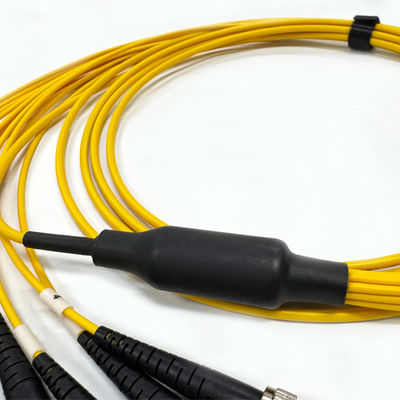

   Low Loss 0.35dB 12 Cores MPO Connector To ST MPO Jumper Type B For Fiber Optic Communication System 1                                                                                  Low Loss 0.35dB 12 Cores MPO Connector To ST MPO Jumper Type B For Fiber Optic Communication System 2



YINGDA'S MPO Patch Cord Workshop

Low Loss 0.35dB 12 Cores MPO Connector To ST MPO Jumper Type B For Fiber Optic Communication System 3


Low Loss 0.35dB 12 Cores MPO Connector To ST MPO Jumper Type B For Fiber Optic Communication System 4

Low Loss 0.35dB 12 Cores MPO Connector To ST MPO Jumper Type B For Fiber Optic Communication System 5

YINGDA MPO cable production teams is adopt multiple tests to strictly control quality for clients. 100% End-Face inspection and polarity test.
