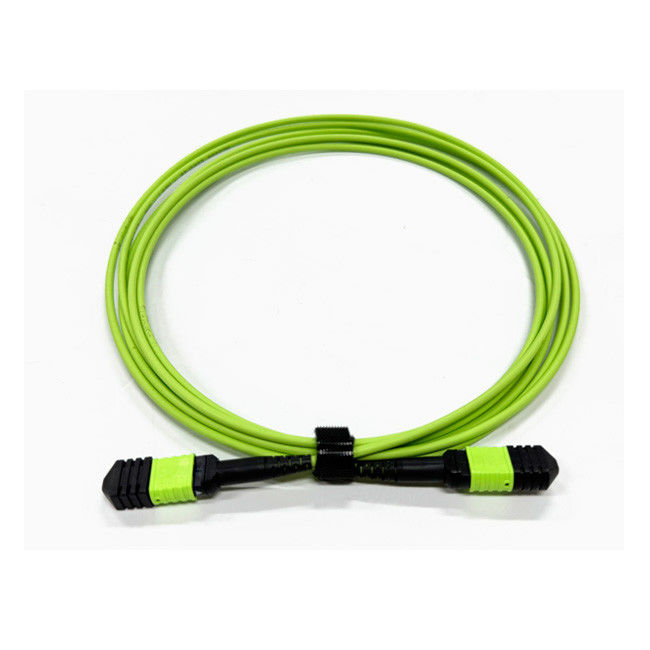

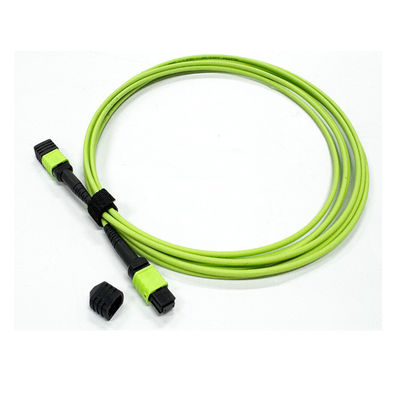

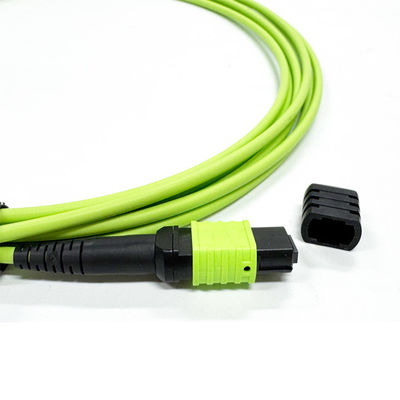

High Density 12 Cores Multimode OM5 100G Fiber Optic MPO To MPO Cable Type B For Fiber Optic Communication System

MOQ: 100
Price: 0.2USD-100USD
Standard Packaging: Carton box
Delivery Period: 5-8 working days
Payment Method: T/T,AliPay,PayPal
Supply Capacity: 1000 pcs/day
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
China
Brand Name
YINGDA
Certification
CE, ISO9001
Model Number
MPO
Product Name:
MTP MPO Cable
Cable Jacket:
PVC LSZH
Insertion Loss:
≤0.2dB
Storage Temperature:
-40℃~+85℃
Connector Type:
MTP/MPO
Cable Color:
Aqua
Fiber Count:
8, 12,24
Fiber Grade:
OM3,OM4,OM5
Highlight:

Fiber Optic MPO To MPO Cable

,

High Density MPO To MPO Cable

,

100G MPO To MPO Cable

Product Description

 MPO Fiber Optic Product Description:



It features MPO Male to MPO Female connectors and utilizes Multimode 50/125 100GB OM5 fiber. The model is a 12 fiber MPO cable with Type B (Key up, Key Up) polarity and an LSZH jacket. Our MPO patch cable is one of thousands of fiber optic cable assemblies available in-stock and ready to ship.

The cable itself can have 4~144 core, which can be either single mode or multi-mode. The single-mode fiber has three types, G652D / G657A1 / G657A2. While the multi-mode fiber has 62.5/125, 10G OM2 / OM3 / OM4, or bending insensitive 10G multi-mode cable.

Yingda has a strong product design and manufacturing capability for MPO/MTP products. We can provide products specifically tailored to meet customer requirements. We guarantee that all products we deliver have excellent performance and reliability.


 MPO to MPO Cable OM5 Features:


【High Speed and High Density】This mpo fiber optic cable features premium quality multimode fiber,mpo om5 cables provides a secure and reliable connection,low insertion loss(IL≤0.35dB) and high return loss(RL≥60dB),support 10G/40G/100gigabit

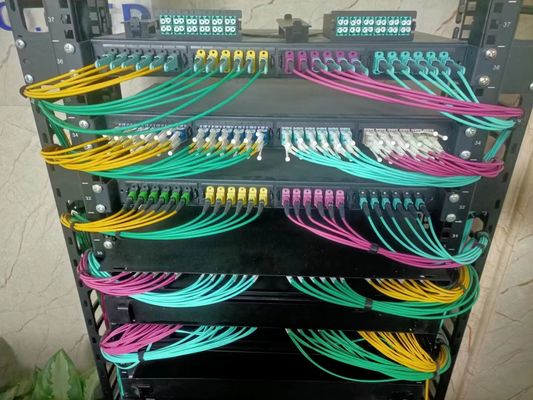

【 MPO Trunk Cable Application】Residential area,industrial park room,commercial building optical signal connection,large data centers,building dense cabling system,fiber optic communication system,cable television network,telecommunication network LAN,GPON/EPON applications,wide area network,fttx


【Safety LSZH Jacket Multimode Fiber 】Our om5 fiber patch cable featuring an lszh low smoke zero halogen jacket material(coefficient of frictionμ<0.2),offers fire resistance and minimal smoke and toxic fume production in case of a fire,and reliably operates within a temperature range of -20ºc to +70ºc


【Fast Delivery】Our MPO patch cable is one of thousands of fiber optic cable assemblies available in-stock and ready to ship. Lead time around 2-3 working days.



MPO Connectors Optical Parameters

Insertion loss(dB) SM Standard SM Elite MM Standard MM Elite
≤0.7 ≤0.35 ≤0.7 ≤0.35
Return loss(dB) ≥60 ≥20
Durability (dB) ≤0.2, 500 times mating
Tensile strength(kgf) 10
Working temperature(℃) -20 ~+70
Measurement wavelength(nm) 1310 850
Standards IEC61754-7, IEC61755, Telcordia GR-1435-CORE, JIS C5982, TIA-604-5(FOCIS5), structured cabling per TIA-568-C, 10G fiber channel, 40G and 100G IEEE 802.3, etc
Housing color Green connectors+black boot Yellow connector+black boot OM1&OM2: beige connector+black boot


OM3&OM4:aqua connector+black boot

OM3&OM4: violet connector+black boot


Geometry parameters

Item X-axis Y-axis
Min Max Min Max
Radius of curvature(mm) 500 – 50 –
Polishing angle 0-0.2 0+0.2 8-0.2 8+0.2
Item Min max
Fiber height (nm) 1000 3000
Max fiber height error (nm) 600
Adjacent fiber height error (nm) -300 +300
Avg. fiber height error (nm) -300 +300
Central concave (nm) 300


LC/SC/FC Fiber Connectors

Fiber mode Single Mode Multimode
Connector polishing PC APC PC
Insertion loss (dB) ≤0.3

Return loss (dB) ≥50 ≥60 ≥35
Repeatability(dB) ≤0.2, 1000 times mating
Working temperature(℃) -40 ~+85
Measurement wavelength (nm) 1310 850


MPO MTP Truck Cable Polarity 3 Types

High Density 12 Cores Multimode OM5 100G Fiber Optic MPO To MPO Cable Type B For Fiber Optic Communication System 0

High Density 12 Cores Multimode OM5 100G Fiber Optic MPO To MPO Cable Type B For Fiber Optic Communication System 1High Density 12 Cores Multimode OM5 100G Fiber Optic MPO To MPO Cable Type B For Fiber Optic Communication System 2

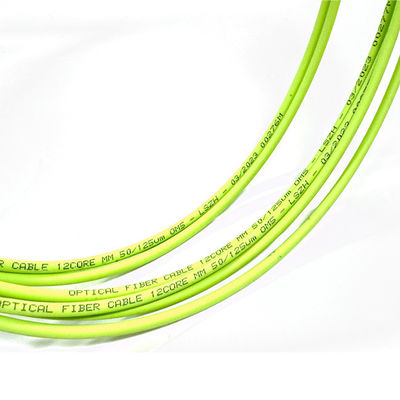

12 Cores Fiber Optic Cable 3.0mm Round LSZH

High Density 12 Cores Multimode OM5 100G Fiber Optic MPO To MPO Cable Type B For Fiber Optic Communication System 3




YINGDA'S MPO Patch Cord Workshop

High Density 12 Cores Multimode OM5 100G Fiber Optic MPO To MPO Cable Type B For Fiber Optic Communication System 4


High Density 12 Cores Multimode OM5 100G Fiber Optic MPO To MPO Cable Type B For Fiber Optic Communication System 5

High Density 12 Cores Multimode OM5 100G Fiber Optic MPO To MPO Cable Type B For Fiber Optic Communication System 6

YINGDA MPO cable production teams is adopt multiple tests to strictly control quality for clients. 100% End-Face inspection and polarity test.
