Inline Horizontal Fiber Optic Joint Enclosure 24 48 72 96 Cores ABS

Inline Horizontal Fiber Optic Joint Enclosure 24 48 72 96 Cores ABS

  • High Light

    Horizontal Fiber Optic Joint Enclosure

    ,

    96 cores Fiber Optic Joint Enclosure

    ,

    ABS fiber optic joint enclosure box

  • Dimension
    420*190*120mm
  • Cable Ports
    2in 2out
  • Max Capacity
    96 Cores Fiber Optic Enclosure
  • Cable Diameter
    16mm
  • Tray Quantity
    8 Pcs
  • Tray Capacity
    12 Cores Single Fiber
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO, CE
  • Model Number
    GJS(08)-KS
  • Minimum Order Quantity
    100 units
  • Price
    Negotiable
  • Packaging Details
    1pc / box, 10 pcs / carton box
  • Delivery Time
    7days after get payment
  • Payment Terms
    T/T, Money Gram, Western Union

Inline Horizontal Fiber Optic Joint Enclosure 24 48 72 96 Cores ABS

24 48 72 96 Cores Inline Horizontal Fiber Optic Joint Enclosure ABS 2in 2out Aerial Mount



The product can be applied in the straight line and branch line(one into two, one into three)connections of optical cables(single fiber and ribbon fiber) within the diameter of 16mm(φ), all types and structures, when laid overhead ,in the pipeline, underground or in the well. Meanwhile, it is also applied to the connection of all-plastic city phone cables.



24 Core Fiber Optic Splice Closure Features

  • All property indexes are in accordance with National YD814.1-2004 Standard.
  • The case body is made from imported high-intensity engineering plastics(ABS) ,added anti-aging agent and formed the shape with mould plastics under high pressure. It is in the shape of HALF rectangle, with the advantages of less weight, high mechanical intensity, corrosive-resistance, anti-thunderstruck and long service life.
  • The box body adopts the buckle connection mode, which makes the installation and maintenance more convenient.
  • The case body and cable entrance are sealed with silicon gum material.It has reliable sealing capability. It can be re-opened and easy to maintain without loss.
  • unique configuration of the plug, so users can be selected flexibly according to the number of fiber optic cable out of actual use.
  • Overlapping fiber-melting tray and separate insulation earth unit make the disposition of the cores, expanding the capacity and cable-earthen flexible, convenient and safe.
  • Outer metal component and fixing unit are made of stainless steel, so can be repeatedly used in different environments.



48 Core Fiber Optic Closure Specification

Model GJS(08)-KS
Dimension 420*190*120mm
Cable ports 2in 2out
Tray capacity 12 cores (single fiber)
Tray quantity 8pcs
Max capacity 96 cores(single fiber)
Optical fiber winding radius ≥40mm
Extra loss of fiber tray ≤0.01dB
Working temperature - 200C ~ + 600C
Lateral pressure-resistance ≥2000N / 10cm
Shock-resistance ≥20N.m



96Core Fiber Splice Closure Application

  • Aerial, underground, pipeline, handhole, etc

Inline Horizontal Fiber Optic Joint Enclosure 24 48 72 96 Cores ABS 0

Standard mounting kits at back, hinge design to ensure the box and cover in a unibody, no need to remove

-----------------------------------------------------------------------------------------------------------------------------------------------------

Inline Horizontal Fiber Optic Joint Enclosure 24 48 72 96 Cores ABS 1

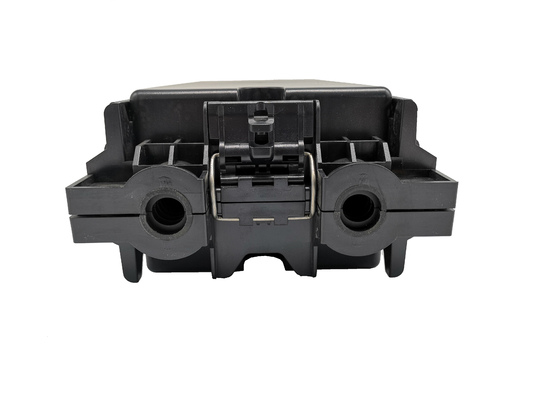

There are 2*cable glands each side, cable diameter φ16mm with grommets and fixtures inside of the box, better protection and waterproof.

-----------------------------------------------------------------------------------------------------------------------------------------------------

Inline Horizontal Fiber Optic Joint Enclosure 24 48 72 96 Cores ABS 2

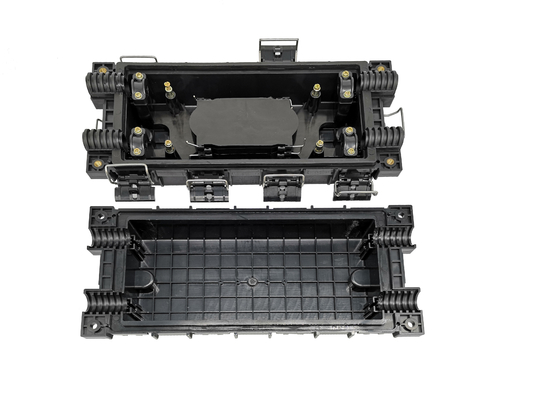

This fiber optic splice closure is inline type, total 8pcs 12core splice tray overlapped into 96cores. The trays all fix on bottom integrated plate with screws.

-----------------------------------------------------------------------------------------------------------------------------------------------------

 Inline Horizontal Fiber Optic Joint Enclosure 24 48 72 96 Cores ABS 3

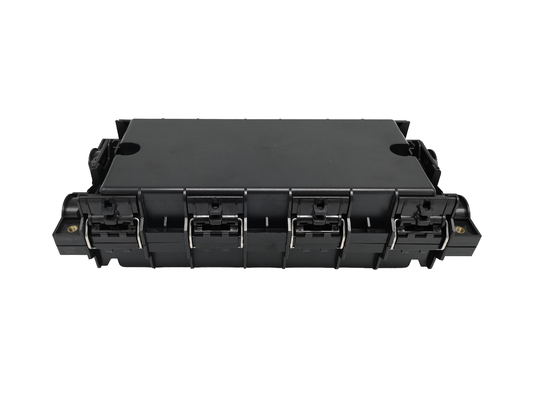

This horizontal splice closure is locked with10 buckles and 4screw rods all around, which ensure underground application good waterproof function. It can be opened easily with an Allen key.




Inline Horizontal Fiber Optic Joint Enclosure 24 48 72 96 Cores ABS 4

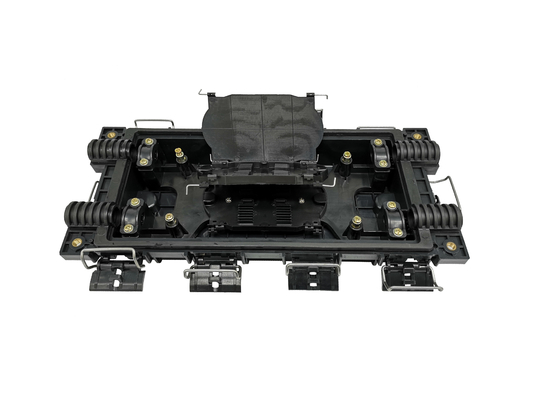

Internal plastic part is a complete set, whole set can be take out by hand, no need special tool.


Inline Horizontal Fiber Optic Joint Enclosure 24 48 72 96 Cores ABS 5

Main body 1set
PVC tape 1roll(optional)
Label 1-8pcs (configuration on request)
Heat shrink protection sleeve 1-96pcs (configuration on request)
Handing tool 1set
Rubber seal 0-2pcs(optional)
English instruction 1pc
Cable ties 1-32pcs(optional)
