PP Heat Shrink Dome Fiber Optic Splice Enclosure 9 Ports 96 Cores Arial Pole Wall Mount

PP IP68 Heat Shrink Dome Fiber Optic Splice Enclosure 9 Ports 96 Cores Arial Pole Wall Mount

FOSC400A8 fiber optic splice closures are specially designed to protect joints of optic cable. Excessive fibers can be stored in storage baskets behind the splice trays. The optical fibers are fusion on sides of the tray. One tray can splice 24 fibers single core; Available for 4 trays to splice total 96 fibers. Adopt modified PP  glass fiber material, with anti-UV, anti-aging and corrosion resistance material. Good quality and long service life. It is reusable.

Dome Fiber Optic Enclosure Specification

96 Cores Fiber Optic Splice Closure Features

• May be used for cut, uncut and taut sheath applications.
• May be used for all fiber optic cable.
• Sheath retention & central strength member termination system included.
• Ribbed closure construction-lightweight plastic offers strength and resistance
• to chemical and U.V attack
• Installation and reentry with a minimum of tools
• All hardware are captivated

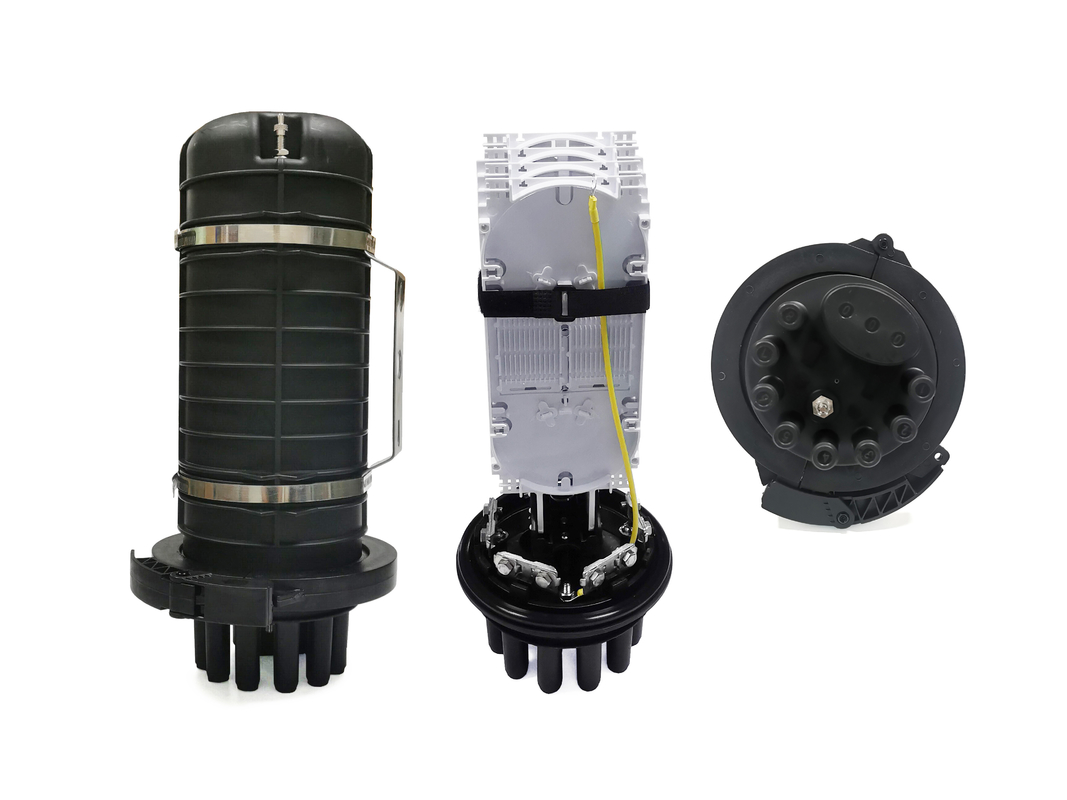

FOSC400A8 splice enclosure is heat shrink seal, IP68 waterproof outdoor use, total 1 oval port and 8 round ports, cable diameter is oval port:25mm, round port:11mm.  Cable ports can be 4 round ports = FOSC400A4. The same body and size, only change the dome.

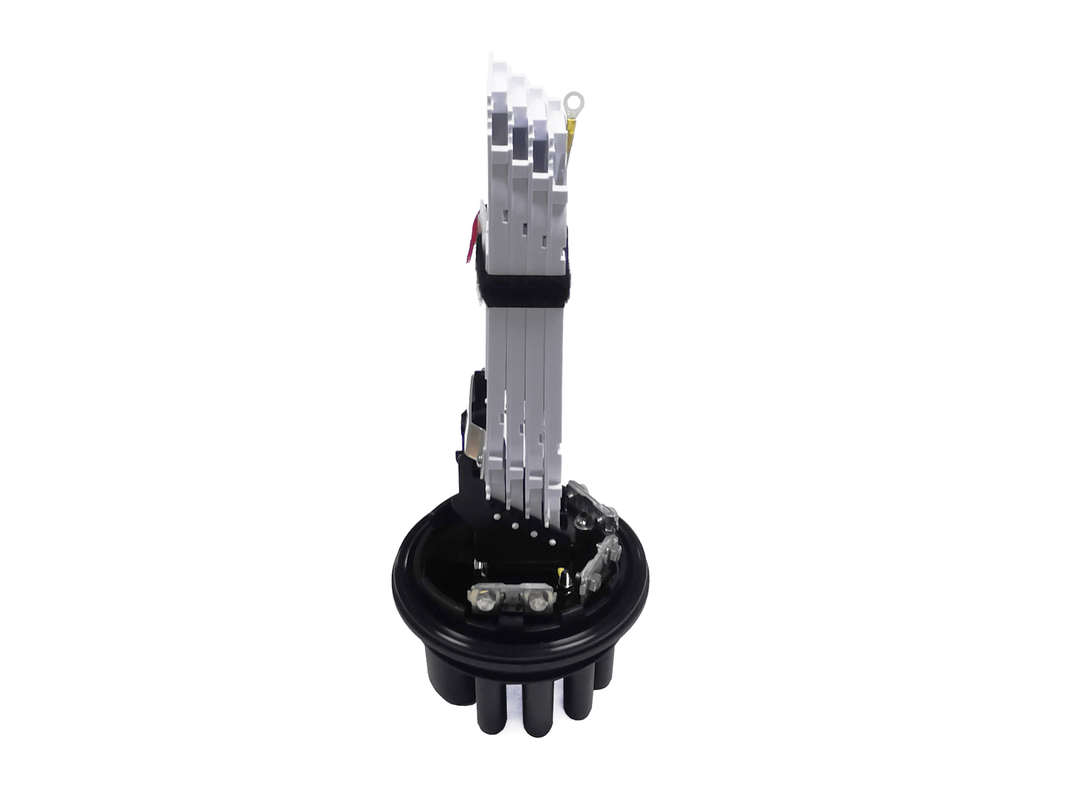

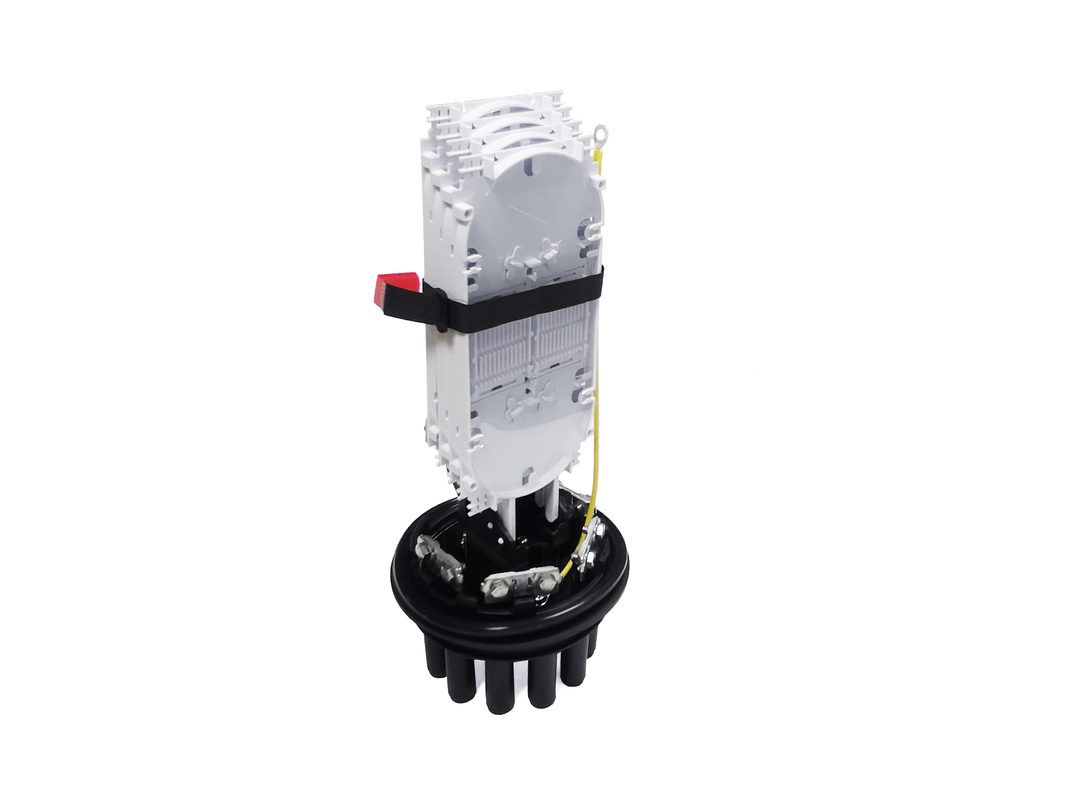

96fiber  splice closure max, hold 4pcs trays, every splice tray is ABS material, white color can fusion splice 24cores single fiber, no need dual fiber. And the trays will be fix together by velcro tape.

96 Cores Optical Fiber Closure Standard accessories

Dome, Base, clamp, O-ring, metal storage basket, Splice Tray, Heat shrink protective sleeve, buffer tube, Cable ties,Grounding wire, Labeling paper, Installation Manual

1 set of Oval port closing kits:

Including 1 heat shrink fixing tube+ 2pcs of Aluminum paper(10cm x 10 cm)+sand paper (2.5 x30mm)+ branching clip etc

8 sets of Round port closing kits:

Including 1 heat shrink fixing tube+1 pc of Aluminum paper(10cm x 10 cm), etc

Optional accessories

Hanging hook, Wall mounting (Duct mounting) kits, Pole Mounting kit, Grounding device, Air valve

• Wide application like Underground, Aerial mount, Vault, Pole Mount,Wall Mount, etc ,will configurate as customer request.

FOSC Fiber enclosure Order Information:

FOSC400A8-XX-XX-X

FOSC400A8-Capacity(12,24,36,48,72fiber...)-splice tray(01-=1pc,02=2pcs...)-accessories(S=standard;O=optional,on customer request)
