Fiber Optic Splice Closure
Created with Pixso. 4 Ports PC 96 Fiber Optic Cable Splice Closure Pole Wall Mount Dome Mechanical

4 Ports PC 96 Fiber Optic Cable Splice Closure Pole Wall Mount Dome Mechanical

Brand Name: YINGDA
Model Number: GJSM3-JF
MOQ: 100 PCS
Price: Negotiable
Delivery Time: 5days after pay
Payment Terms: T/T or western Union
Detail Information
Place of Origin:
china
Certification:
ISO, SGS
Shape:
Dome Mechanical Splice Closure
Max Capacity:
96 Fibers Single Core Splice Box
Cable Port:
1 Oval + 4 Round Port Or 6 Round Ports
Cable Diameter:
Φ7mm~Φ22mm
Material:
MPP Optical Splice Enclosure
Splice Tray Qty:
Max. 4pcs
Closure Dimension:
Φ190×410 Mm
Weight:
2.3 Kgs
Sealing Part:
Thread Plastic Device
Waterproof Class:
IP68 Dome Closure
Packaging Details:
1pc / box, 6 pcs/ carton box
Supply Ability:
50,000pcs per month
Highlight:

96 Fiber Optic Cable Splice Closure

,

Dome Mechanical Fiber Optic Cable Splice Closure

,

IP68 dome Optic Cable Splice Closure

Product Description

4 Ports PC 96 Fiber Optic Cable Splice Closure Pole Wall Mount Dome Mechanical​

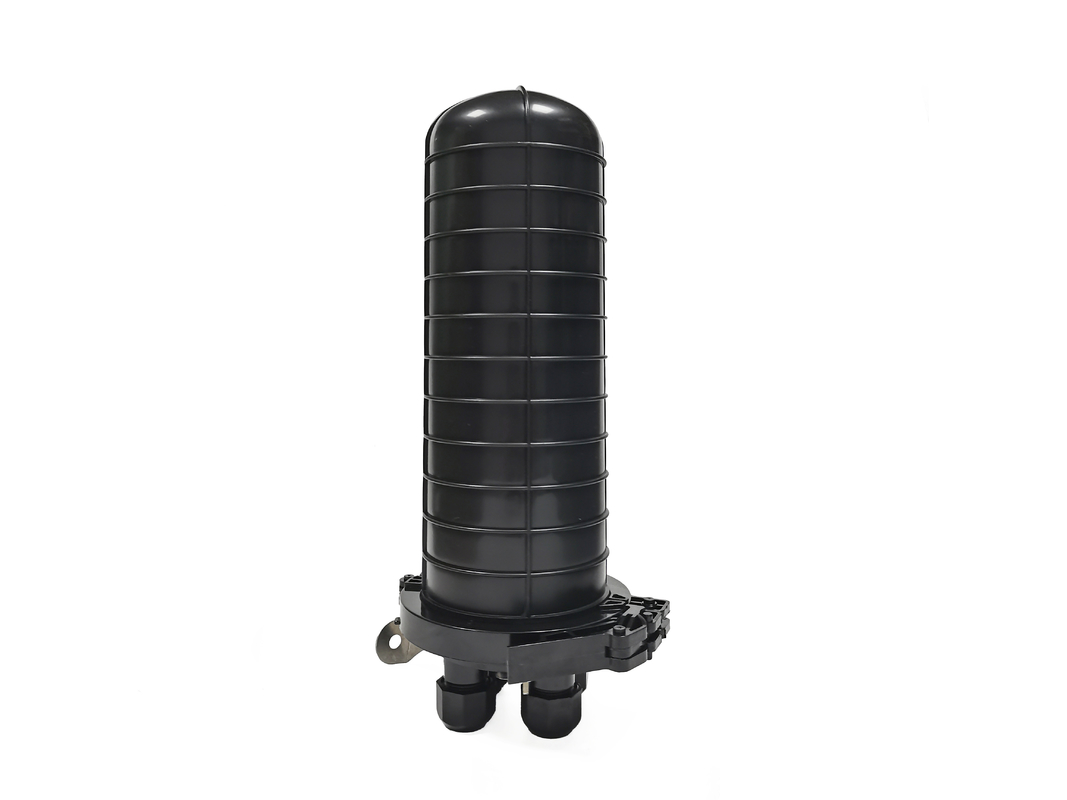

The GJSM3-JF Dome Fiber Optic Splice Closure is used in aerial, wall-mounting applications, for the straight-through and branching splice of the fiber cable. The closure has four round entrance ports. The shell of the product is made from MPP. The shell and the base are sealed by pressing the silicone rubber with clamp allocated. The entry ports are sealed by thread plastic device. The closures can be opened again after be sealed, reused again without changing the sealing material.



96 Fiber Splice Closure Specification

Item GJSM3-JF
Dimension (D*H) mm Φ190×410
Weight(Kg) 2.3
Diameter of Cable(mm) Φ7~Φ22
No. of Cable Inlet/Outlet four
Number of Fibers per Tray 24(single core)
Max. Number of Trays 4
Max. Number of Fibers 96(single core)
Sealing of Inlet/Outlet ports Thread plastic device
Sealing of Shells Silicon rubber

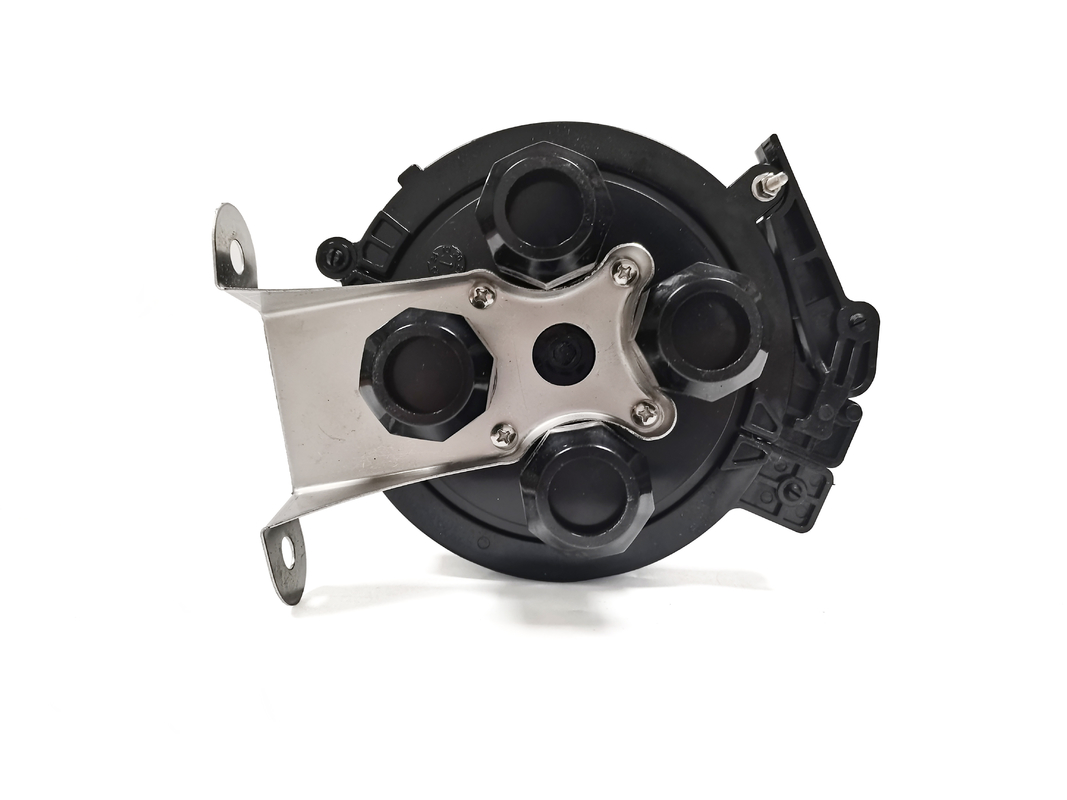

4 Ports PC 96 Fiber Optic Cable Splice Closure Pole Wall Mount Dome Mechanical 0

----------------------------------------------------------------------------------------------------------------------------------------------------

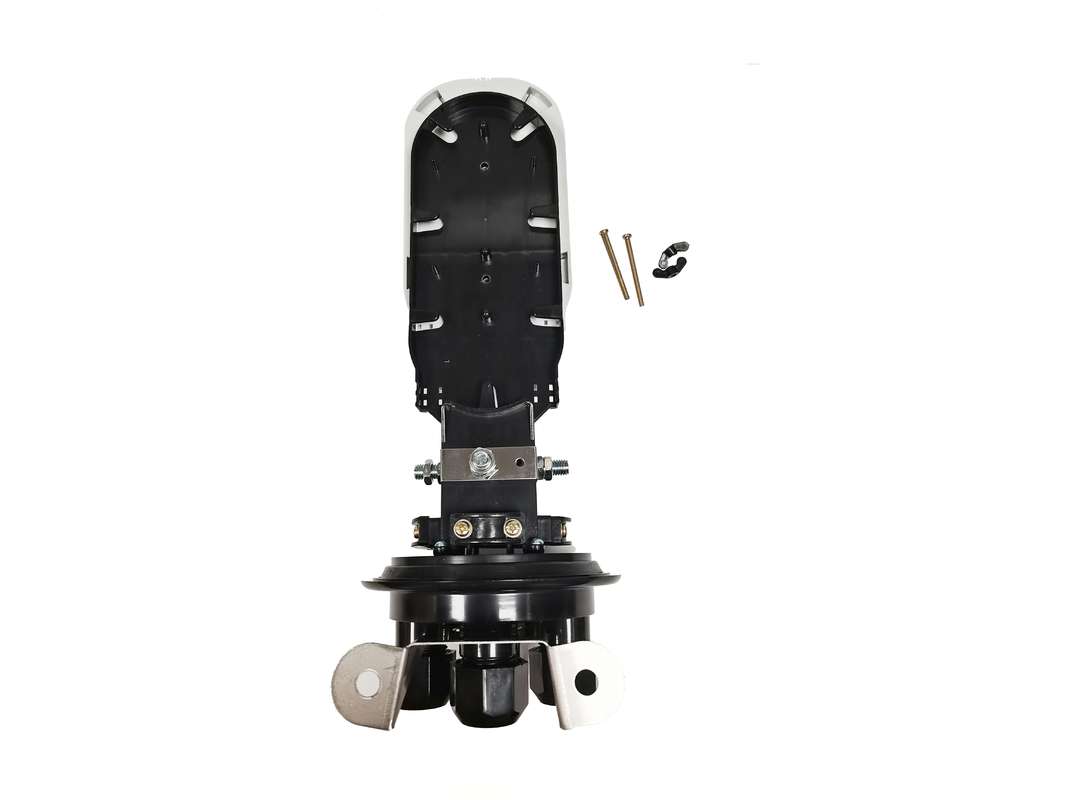

4 Ports PC 96 Fiber Optic Cable Splice Closure Pole Wall Mount Dome Mechanical 1

-------------------------------------------------------------------------------------------------------------------------------------------------

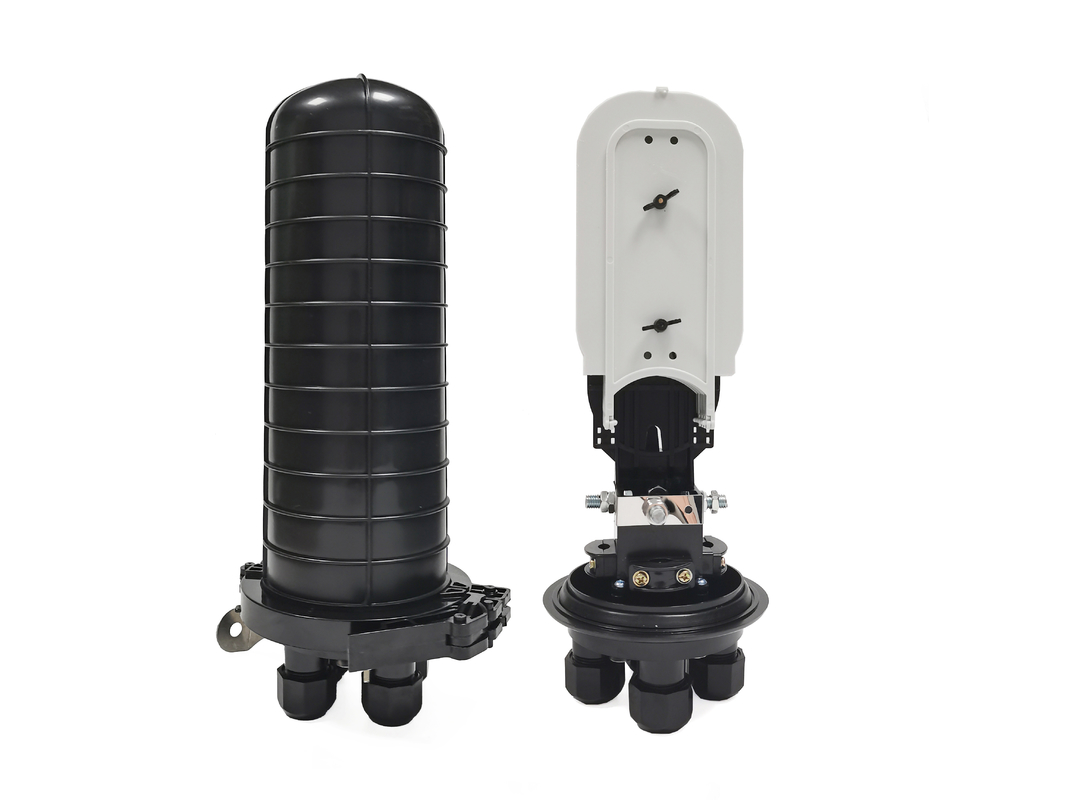

4 Ports PC 96 Fiber Optic Cable Splice Closure Pole Wall Mount Dome Mechanical 2




----------------------------------------------------------------------------------------------------------------------------------------------------

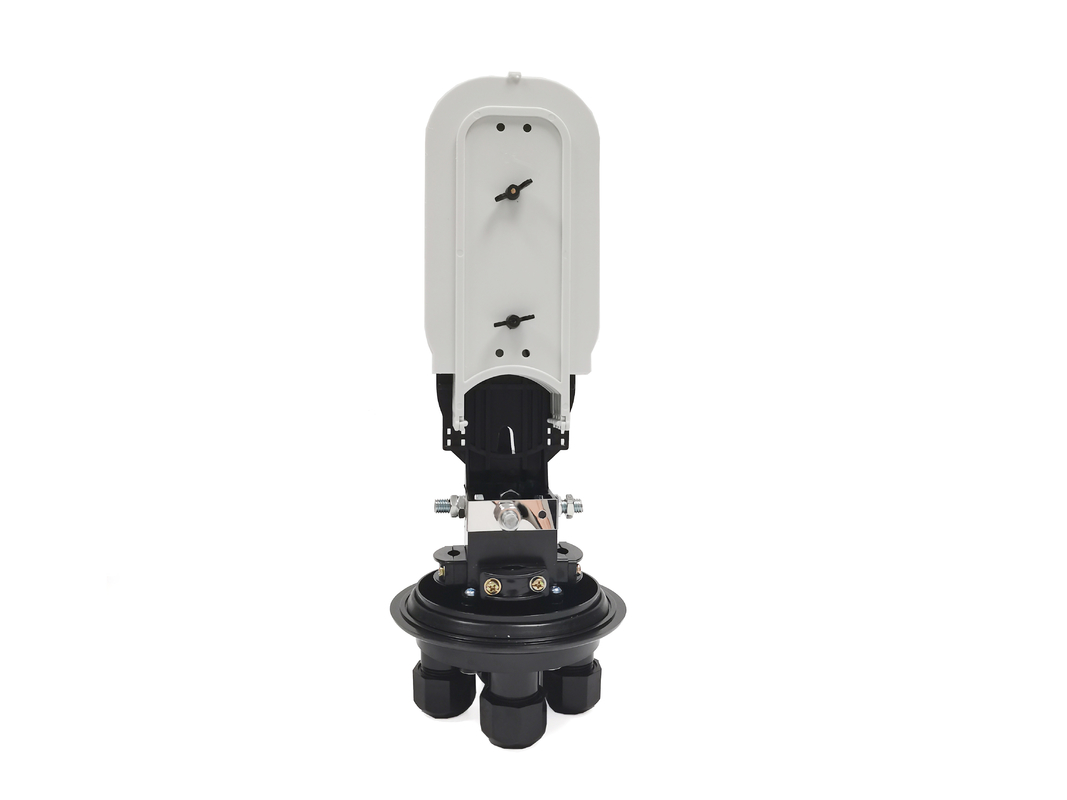

4 Ports PC 96 Fiber Optic Cable Splice Closure Pole Wall Mount Dome Mechanical 3

Fiber optical 96 Cores Splice Closure Kit Contents

Item Type Quantity
Fiber Optic Splice Sleeve   Allocated by the number of fibers

Buffer Tube

PVC Allocated by the trays(According to clients need)
Nylon Ties   4×trays
Marking Note   4×cores of fiber cable
Hanging Tools   1 pair
Plastic hoop   1 piece
Plastic wrench   2 small and 1 big
Seal ring   1 piece
Sand paper   1 piece
aluminum paper   1 piece



Fiber closure box standard accessory:

wall mount kits, user manual, wrench *2 sets, heat shrink protection tubes, number mark, insolation tape, cable gronments seals, etc.





optical fiber joint box tools Required

  •  Blast Burner or Welding Gun
  •  Saw
  •  Minus Screwdriver
  •  Cross-shaped Screwdriver
  •  Pliers
  •  Scrubber



Transportation and Storage

(1) The package of this product adapts to any transportation ways. Avoid collision, drop, direct shower of rain & snow and insolation.

(2) Keep the product in a draughty and dry store, without corrosive gas in.

(3) Storage Temperature Range:-40℃ ~ +60℃
