48 Cores FTTH Drop Cable IP68 Mechanical Fiber Optic Joint Enclosure Dome Splitter 1x32

48 Cores FTTH Drop Cable IP68 Mechanical Fiber Optic Joint Enclosure Dome Splitter 1x32
48 Cores FTTH Drop Cable IP68 Mechanical Fiber Optic Joint Enclosure Dome Splitter 1x32
48 Cores FTTH Drop Cable IP68 Mechanical Fiber Optic Joint Enclosure Dome Splitter 1x32 48 Cores FTTH Drop Cable IP68 Mechanical Fiber Optic Joint Enclosure Dome Splitter 1x32 48 Cores FTTH Drop Cable IP68 Mechanical Fiber Optic Joint Enclosure Dome Splitter 1x32 48 Cores FTTH Drop Cable IP68 Mechanical Fiber Optic Joint Enclosure Dome Splitter 1x32 48 Cores FTTH Drop Cable IP68 Mechanical Fiber Optic Joint Enclosure Dome Splitter 1x32 48 Cores FTTH Drop Cable IP68 Mechanical Fiber Optic Joint Enclosure Dome Splitter 1x32

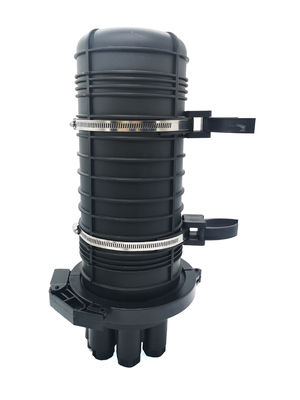

Large Image :  48 Cores FTTH Drop Cable IP68 Mechanical Fiber Optic Joint Enclosure Dome Splitter 1x32

Product Details:
Place of Origin: china
Brand Name: YINGDA
Certification: ISO,SGS
Model Number: GJS-M5-JFT
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Price: Negotiable
Packaging Details: 1pc / box, 4 pcs/ carton box
Delivery Time: 5-15days after pay
Payment Terms: T/T or western Union, L/C
Supply Ability: 50,000pcs per month

48 Cores FTTH Drop Cable IP68 Mechanical Fiber Optic Joint Enclosure Dome Splitter 1x32

Description
Shape: Dome / Vertical Max Capacity: 48 Cores Single Fibers
Cable Port: 1 Mid Sapn (uncut Port) + 4 Round Ports Cable Diameter: Φ7mm~Φ18 Mm
Material: PP Body + ABS Tray Splice Tray Qty: Max.6 Pcs
Dimension: φ230*445 Mm Weight: 3.5 Kgs
Sealing Method: Mechanical Seal Waterproof Class: IP65
Application: Aerial, Pole Mount, Wall Mount, Duct, Buried,etc Splitter Qty: 1x32, 1x16, 1x8, 1x4, 1x2 Mini Splitter Or 2xN Series
High Light:

IP65 Fiber Optic Joint Enclosure

,

IP65 fiber optic dome closure

,

Mechanical seal Fiber Optic Joint Enclosure

48 Cores FTTH Drop Cable IP68 Mechanical Fiber Optic Joint Enclosure Dome Splitter 1x32​ 1x16 1x8

Uncut 1x16 PLC Splitter 48 Cores Fusion Joint Closure Fiber Optic Dome Mechanical Seal FOSC





GJS-M5-JFT optical fiber splice closure is a dome type enclosure, which is used for the direct connection during optical fiber transmission, and provides joint connection protection, with 4 round cable inlet holes and 1 elliptical cable inlet hole; it adopts mechanical seal; it can be used for overhead, pole mounting, wall mounting and buried installation; good sealing performance, simple installation and wide application range.



Specification

Model GJS-M5-JFT
Dimension Φ230*445mm
Cable entry&exit 1oval (or mid span) + 4 round
Cable diameter Φ7-18 mm
Splice tray capacity 24 single core
Max. Tray qty 6pcs
Max. Splice qty 144cores (single fiber)
Max. Split ratio 1:16(2pcs), 1:32(1pc),
Sealing method Threaded mechanical seal, silicone rubber
Optical fiber curvature radius ≥ 40mm
Additional loss of optical disk ≤ 0.01dB
Temperature range - 20 ° C ~ + 60 ° C
Lateral pressure resistance ≥ 2000N / 10cm
Impact resistance ≥ 20n. M
Protection grade IP65



Features

  • All performance indexes of the product meet the requirements of national YD / T 814.1 connector box standard.
  • 5pcs cable ports: 4round and 1 oval ports, which can access the optical cable of φ 7 - φ 18, uncut function is available
  • The outer box body is made of high strength engineering plastics and high pressure injection molding with anti-aging agent. It has the characteristics of light weight, high mechanical strength, strong corrosion resistance, lightning resistance and long service life.

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------48 Cores FTTH Drop Cable IP68 Mechanical Fiber Optic Joint Enclosure Dome Splitter 1x32 0

  • The superposed structure fiber fusion tray and independent insulation grounding device in the box make the fiber core number configuration, expansion and cable grounding flexible, convenient and safe.​
  • The metal components and fasteners inside and outside the box are made of stainless steel, which can be used in various environments.

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------48 Cores FTTH Drop Cable IP68 Mechanical Fiber Optic Joint Enclosure Dome Splitter 1x32 1

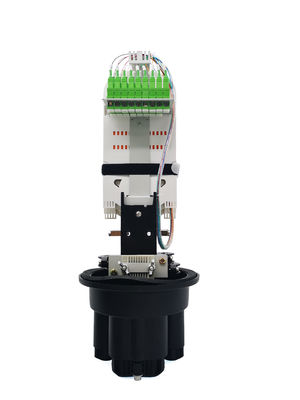

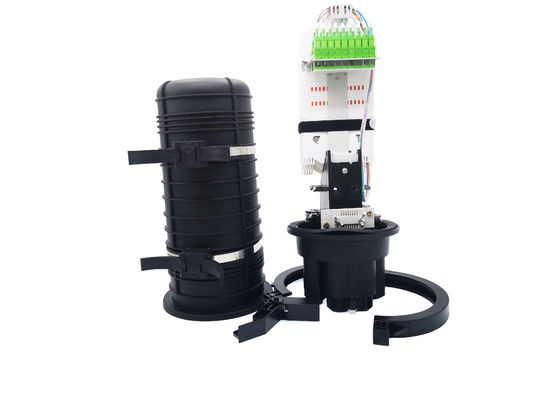

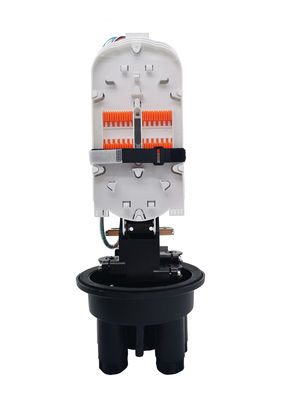

  • 48cores will load 3pcs trays, 1 for splitter ,and 2 for fusion. Each tray can fusion splice 24cores single fiber. Every tray with a transparent cover, large routing area and reasonable bend radius, trays fix on the metal adapter bracket with screws.The splitter tube can fix in the tray.

48 Cores FTTH Drop Cable IP68 Mechanical Fiber Optic Joint Enclosure Dome Splitter 1x32 2

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

48 Cores FTTH Drop Cable IP68 Mechanical Fiber Optic Joint Enclosure Dome Splitter 1x32 3

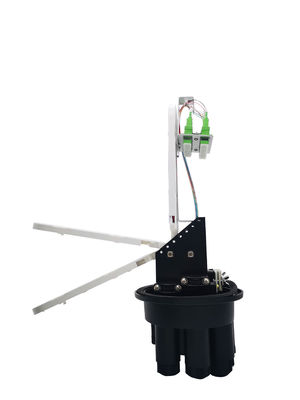

  • The adapter plates for 1x16 can be like below pictures, it can hold maximum 18SC adapters, for 1x16 or 2x16 with spiral tube or ny ton tie to fix in place.

----------------------------------------------------------------------------------------------------------------------------------------------------------------------

48 Cores FTTH Drop Cable IP68 Mechanical Fiber Optic Joint Enclosure Dome Splitter 1x32 4

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------



Standard accessory:

pole mount kits, plastic wrench, inner hexagon wrench, rubber sealing and kits for cable ports, heat shrink protection sleeve, number marks, nylon tie, etc.

48 Cores FTTH Drop Cable IP68 Mechanical Fiber Optic Joint Enclosure Dome Splitter 1x32 5

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Fiber Optic Joint Enclosure Installation process



The optical cable enters from the optical cable financial control on the base.

The cable holder is used to lock the cable, and the steel core is penetrated into the reinforced core column and pressed tightly.



1. Installation of optical cable with oval hole:

Take out the rubber pad, plastic block and plastic plug in the elliptical hole, the optical cable passes through the rubber pad, and then buckle on the plastic block, finally add the plastic plug, use the wrench to tighten the bolt and lock the base to complete the sealing of the optical cable inlet.



2. Installation of 4round optical cable:

Screw off the plastic nut of the small cable inlet hole, take out the φ 27 sealant plug, install the accessories according to the sequence shown in the figure below, and finally use the wrench to tighten the plastic nut to seal the cable inlet in pairs.



3. Optical splitting: bring the stripped optical cable into the fusion tray for reserved winding, fusion the pigtail end and the cable end the end in the fusion slot,insert the pigtail connector into the inlet of adapter, insert the input of the PLC splitter to the outlet of the adapter, the output of the splitter is inserted into the input end of the adapter, and the optical cable is led out at the outlet of the adapter finally.



4. Direct fusion: introduce the butt cable into the fusion tray for reserved winding, then fusion two ends in the fusion slots.



--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Application: diret buried, duct, aerial, telecommunication, mobile, CATV, highway, broadband company, etc.48 Cores FTTH Drop Cable IP68 Mechanical Fiber Optic Joint Enclosure Dome Splitter 1x32 6
