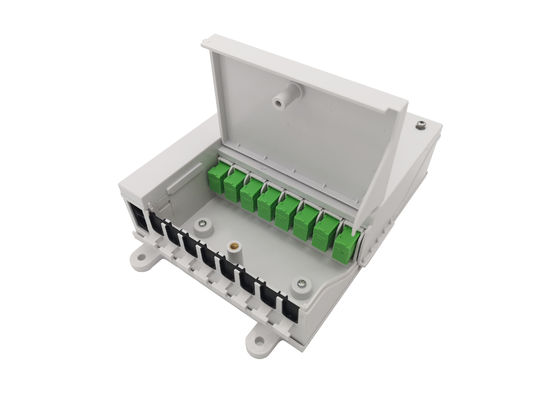

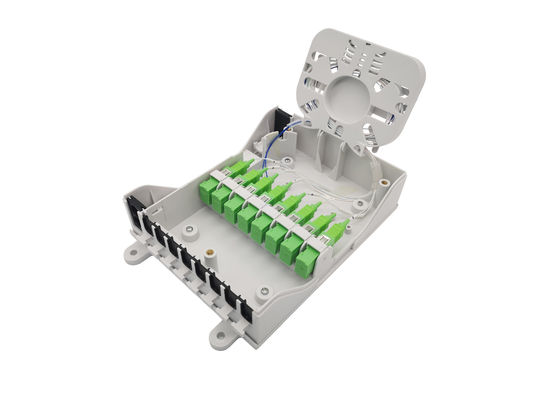

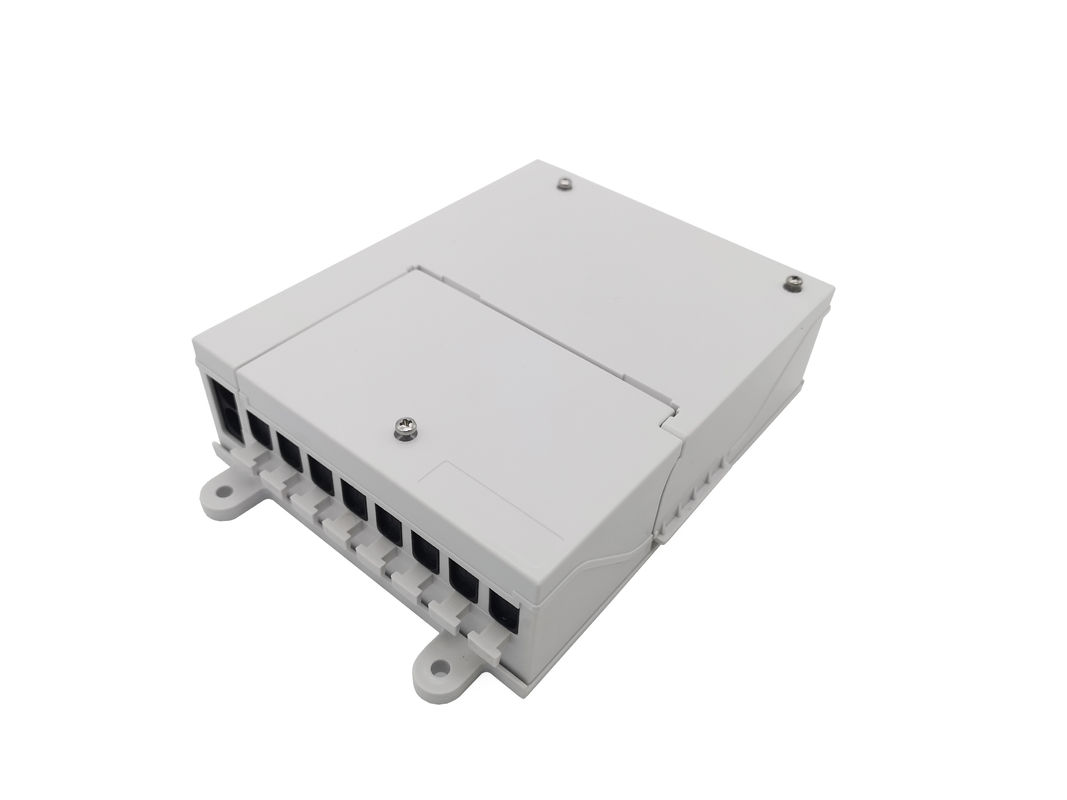

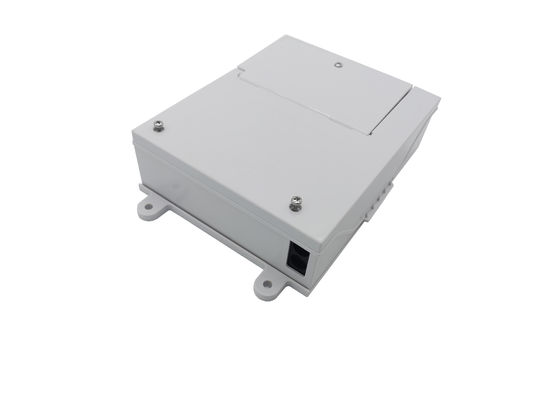

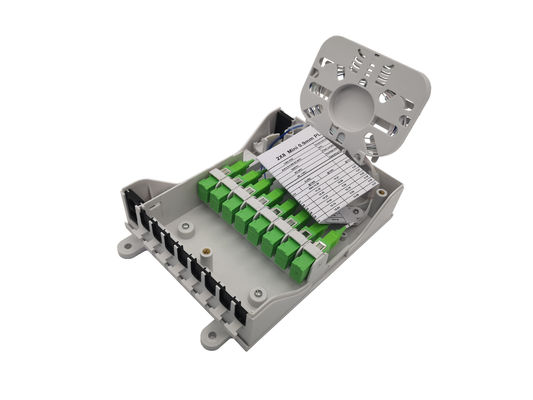

IP54 Fiber Optic Splitter Termination Box 1X8 PLC Coupler SC Auto Shutter Adaptor ABS White

This plastic terminal box is indoor use only, mainly for distribution vertical cable from patch cord to end customer. It is placed on the wall or bottom of the floor cabinet niche by screws. The entry 2ports can use multi-fiber cable maximum diameter 12mm, it can also use un-cut cable goo through the box without cutting, more convenient and fast to installation.The output ports 8pcs can do 2*3mm diameter cable, especially for FTTH drop cable figure-8 type. There are cable tie wraps or cable fixtures for inputs or outputs.

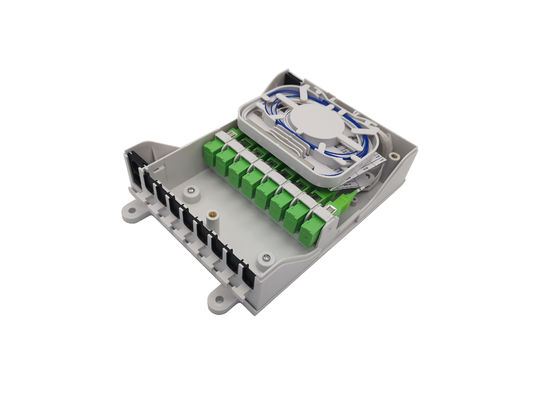

There are 1 splice tray for max. 8 fibers fusion splice, enough space for 8fiber buffer cable or single fiber 1.5meter storage, also it can split 1x2,1x4,1x8,2x2,2x4 mini splitter, mixing fusion, splittering, distribution and storage in a box. The fiber bending radius minimum is 20mm.

Meanwhile, unique design of separate covers for the adapter and cable entry/exit ports makes it more safe, nice and humanity,

Specification:

Features:

• The lid of the box have edges rounded and can be taken by hand with clip, and closed by a screw. Opening of the lid will not affect the movement of the other parts of the box.
• All the metal parts is steel stainless AISI-303 and resistant to the corrosion in normal temperature, can be test ok in different facilities.
• The both cover is removable.
• Plastic material is flame retardant.
• All the materials used is non toxic and dermatologically safe.
• The materials used for manufacturing these boxes can use for a minimum period of 20 years.

Standard package:

The box is provide closed and will come equipped with all the elements, material consumable and tools necessary for the mounting and connection.

• Cable nylon ties
• Heat shrinkable tube
• Wall mount expansion screws
• Sealing of inputs or outputs
• User manual
• Adapters or plc splitter
