Good price online

products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Fiber Optic Splitter Box
Created with Pixso. IP65 Outdoor Waterproof Optical Fiber Splitter Distribution Box Pole Mounted
Name
  • Name
  • Name
  • Name
  • Name
  • Name

IP65 Outdoor Waterproof Optical Fiber Splitter Distribution Box Pole Mounted

Brand Name: YINGDA
Model Number: FDB0216G
MOQ: 100PCS
Price: 1.0USD-18.6USD
Delivery Time: 6days
Payment Terms: Western Union, MoneyGram, T/T
Detail Information
Product Description
Detail Information
Place of Origin:
china
Certification:
ISO,SGS
Material:
ABS+PC
Color:
White. Black
Ftth Drop Cable:
16 Pcs
Cable Ports:
2in 16out
Plc Splitter:
1x2,1x4,1x8,1x16
Adapter:
SC, LC Duplex
Max Splicing:
16cores
Application:
Wall Mount Or Pole Mount
Customer Logo:
Silk Print
Cable Entry:
Cable Gland
Packaging Details:
1pc in a box, 10 pcs per carton box
Supply Ability:
5000pcs/month
Highlight:

optical distribution box

,

splitter distribution box

Product Description

IP65 Outdoor Waterproof Optical Fiber Splitter Distribution Box Pole Mounted For 1X16 PLC Splitter



Model:FDB0216G





General Description

This box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. It integrates fiber splicing, splitting, distribution, storage and cable conection in one unit. Meanwhile, it provides solid protection and management for the FTTx network building.



Features

  • Total encloused structure, be in a nice shape
  • Protects and manages cable effectively
  • Secured with anti-theft locking mechanism
  • Standard size, light weight
  • High quality PC + ABS material
  • Good properties of dust, and moisture proofing, IP65/68
  • Clamping for feeder cable and drop cable, fiber spliding, fixation, storage, distribution, etc in one unit
  • Suitable for SC and LC duplex adaptor and pigtail
  • Easy to operate
  • Wall and pole mountable
  • Suitable for both outdoor and indoor use



Application

  • Telecommunication subscriber loop
  • Fiber to the home (FTTH)
  • LAN/WAN



Technical data



Work temperature -40°C~+85°C
Reliable humidity ≤85% (+30°C)
Atmospheric pressure 70kPa~106kPa
Insertion loss ≤0.2dB
Return loss upc ≥50dB
Return loss apc ≥60dB
Insert and pull out life ≥1000times
insulation The grounding device is insulated with teh termination box, IR≥1000m Ω/500V (direct current)
Withstand voltage Between the grounding device and the box body, the withstand voltage is over 3000V/Min, no breakdown and flashover,U≥3000V(direct current)



                          Dimensions                                            installation dimensions

                     A*B*C=292*218*83mm                                        D*E=154*82mm

IP65 Outdoor Waterproof Optical Fiber Splitter Distribution Box Pole Mounted 0

                      Installation method



IP65 Outdoor Waterproof Optical Fiber Splitter Distribution Box Pole Mounted 1



Optical characteristics



Model FDB0216G
Dimension 292*218*83mm
Max capacity 16cores
Cable port 2in, 16out
Adapter qty 16pcs SC
Cable diameter In:7-10mm, out: 2*3.0mm or indoor cable
Color White, black, gray
Material ABS+PC
Installation Outdoor Pole mounting, wall mounting
Waterproof grade IP65 / 68





More pictures



IP65 Outdoor Waterproof Optical Fiber Splitter Distribution Box Pole Mounted 2IP65 Outdoor Waterproof Optical Fiber Splitter Distribution Box Pole Mounted 3

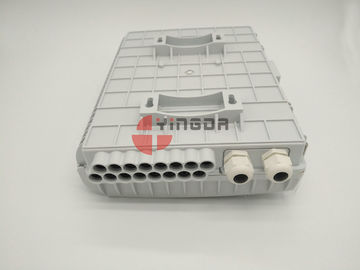

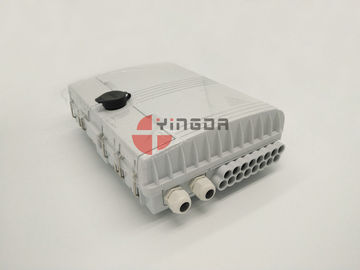

  • Front and back show



IP65 Outdoor Waterproof Optical Fiber Splitter Distribution Box Pole Mounted 4IP65 Outdoor Waterproof Optical Fiber Splitter Distribution Box Pole Mounted 5

  • Cable port and all box cover with rubber seal for better waterproof, and sutiable for outdoor use.



IP65 Outdoor Waterproof Optical Fiber Splitter Distribution Box Pole Mounted 6IP65 Outdoor Waterproof Optical Fiber Splitter Distribution Box Pole Mounted 7

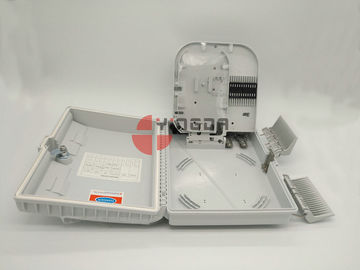

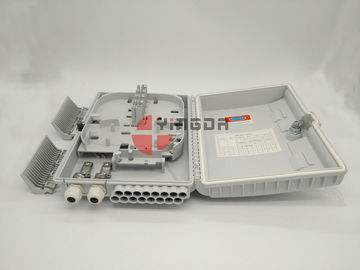

  • The one side of panel is for max.16pcs SC simplex adapter and fiber storage, the other side is for splitter and fusion distribution.



IP65 Outdoor Waterproof Optical Fiber Splitter Distribution Box Pole Mounted 8IP65 Outdoor Waterproof Optical Fiber Splitter Distribution Box Pole Mounted 9

  • Accessories and packaging carton box.





Order information



Model PLC SPLTITER Spitter qty Adapter Adapter qty Cable entry
FDB0216G 102=1X2 01=1pcs SA=SC/APC 01=1pcs A=cable gland
104=1X4 02=2pcs SU=SC/UPC 02=2pcs B=uncut cable
108=1X8 N=not include LU=LC/UPC 03=3pcs
116=1X16   LA=LC/APC ...
N=not include   N=not include 16=16pcs





Tags:

splitter distribution box

optical distribution box

fiber optic closure
