12 Cores Fiber Optic Splitter Box With SC/APC Adapters , Plastic Access Termination Box

12 Cores Fiber Optic Splitter Box With SC/APC Adapters , Plastic Access Termination Box

  • High Light

    fiber optic closure

    ,

    optical distribution box

  • Material
    PC/ABS
  • Capacity
    12 Fibers
  • Adapter
    12pcs SC Couplers
  • Split Ratio
    1x2,1x4,1x8 Micro Splitter
  • Color
    Gray
  • Dimension
    220*210*50mm
  • Cable Port
    3 Cable Gland
  • Cable Diameter
    16mm
  • Sample
    OK
  • OEM
    OK
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO
  • Model Number
    FDB0212B
  • Minimum Order Quantity
    100PCS
  • Price
    Negotiable
  • Packaging Details
    1pc/box, 40pcs/box
  • Delivery Time
    5-8 working days
  • Payment Terms
    T/T, Western Union, L/C
  • Supply Ability
    5000pcs per month

12 Cores Fiber Optic Splitter Box With SC/APC Adapters , Plastic Access Termination Box

12 Cores Fiber Optic Splitter Box With SC/APC Adapters, Plastic Access Termination Box



FDB0212B fiber access termination box is able to hold up to 12 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.



Features

  • 3 cable ports
  • Industrial standard user interface max.12pcs SC/LC duplex
  • Made of high impact engineering plastic
  • Can accommodate 1x4, 1x8,1x12 PLC blockless splitter
  • Anti-UV, Ultra violet resistant and rainfall resistant
  • Outdoor wall mount or pole mount
  • Up to 12 FTTH drops
  • IP65 protection class



Specifications

Model FDB0212B
Material PC+ABS
Dimension (W*D*H)mm 220*210*50
Max.Capacity PLC1x4 (2pc);1x8 or 1x12 (1pc) Steel tube or LGX module
Cable ports 3round cable ports
Cable diameter(mm) Φ16
Adapter Max. 12pcs SC
Color Gray
Application Wall mount, pole mount



Product Introduction

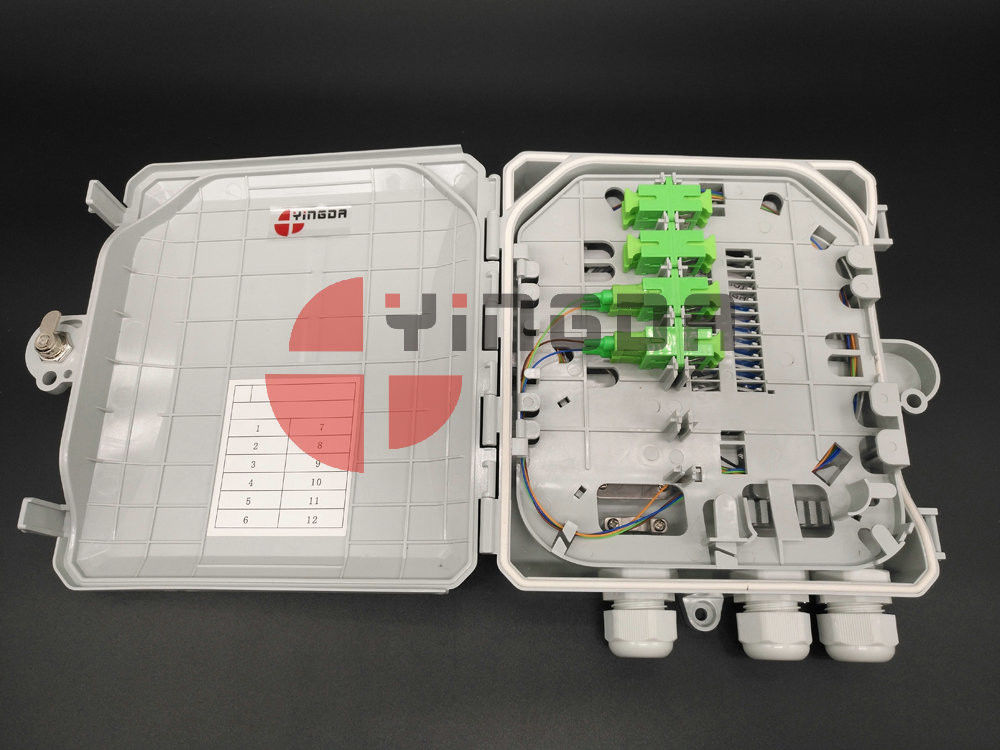

12 Cores Fiber Optic Splitter Box With SC/APC Adapters , Plastic Access Termination Box 012 Cores Fiber Optic Splitter Box With SC/APC Adapters , Plastic Access Termination Box 1

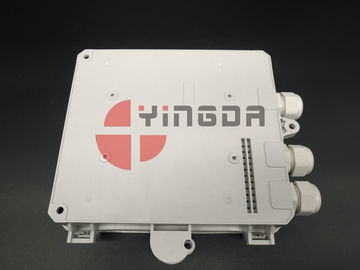

                                       Hinge                                                   3 Cable gland ports



12 Cores Fiber Optic Splitter Box With SC/APC Adapters , Plastic Access Termination Box 212 Cores Fiber Optic Splitter Box With SC/APC Adapters , Plastic Access Termination Box 3

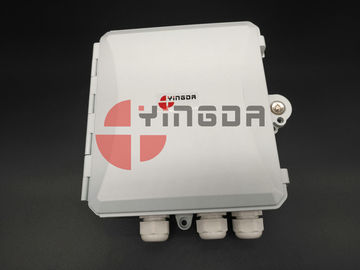

  • Box size is 220*210*50mm.



12 Cores Fiber Optic Splitter Box With SC/APC Adapters , Plastic Access Termination Box 412 Cores Fiber Optic Splitter Box With SC/APC Adapters , Plastic Access Termination Box 5

                                  Cover                                                               Bottom

  • This box is locked by key and two buckle.



12 Cores Fiber Optic Splitter Box With SC/APC Adapters , Plastic Access Termination Box 612 Cores Fiber Optic Splitter Box With SC/APC Adapters , Plastic Access Termination Box 7

  • Adapter panel is able to install 12pcs SC simplex adapter. It can connect max. 1x8 PLC splitter.
  • At the back of the adapter panel, it is the place to splice fibers.



12 Cores Fiber Optic Splitter Box With SC/APC Adapters , Plastic Access Termination Box 812 Cores Fiber Optic Splitter Box With SC/APC Adapters , Plastic Access Termination Box 9

  • The three cable glands are divided into one input and two outputs.
  • For the two outputs, there is a plastic part to fix FTTH drop cables that will go through outputs.
  • The metal part that located at the input is used to fixed the main fiber cable that go into the box.



The optional pole mount kits.

12 Cores Fiber Optic Splitter Box With SC/APC Adapters , Plastic Access Termination Box 1012 Cores Fiber Optic Splitter Box With SC/APC Adapters , Plastic Access Termination Box 11



Standard accessories

12 Cores Fiber Optic Splitter Box With SC/APC Adapters , Plastic Access Termination Box 12





Packing informations

Model N.W./KGS Qty/CTN CTN Size/cm G.W./KGS
FDB0212B 0.5 40 44*49*56 24.4
FDB0212B with pole mount kits 0.65 20 77*46*26 14.3
