Brand Name: | yingda |
Model Number: | FDB0216W-10802SA-LGX |
MOQ: | 10pcs |
Price: | negotiable |
Payment Terms: | T/T, Western Union |

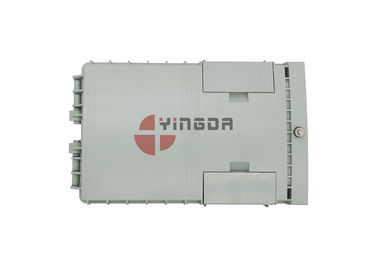

IP65 PC ABS Gray Pole Mount Fiber Optical Splitter Distribution Box with 16 SC Connectors
ODP FDB0216W type Fiber Optic Splitter Distribution Box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Specification
Model | FDB0216W |
Dimension(L*W*D) | 274*175*82 mm |
Max capacity | 1x8 micro mini plc splitter 2 pieces |
SC simplex adapter 16 pieces | |
Fusion splice 16fibers | |
Environmental requirement |
Working temperature:-40℃~+60℃ Relative humidity:≤85%(+30℃) Atmospheric pressure:70KP~106Kpa |
Main technical |
Insertion loss:≤0.2dB Return loss:≥50dB(upc); ≥60dB(APC) Life of insertion and extraction:>1000 times |
Thunder-proof technical |
The grounding device is isolated with the cabinet, isolation resistance is less than 2MΩ/500V(DC); IR≥2MΩ/500V The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture,no flashover; U≥3000V |
Product Details

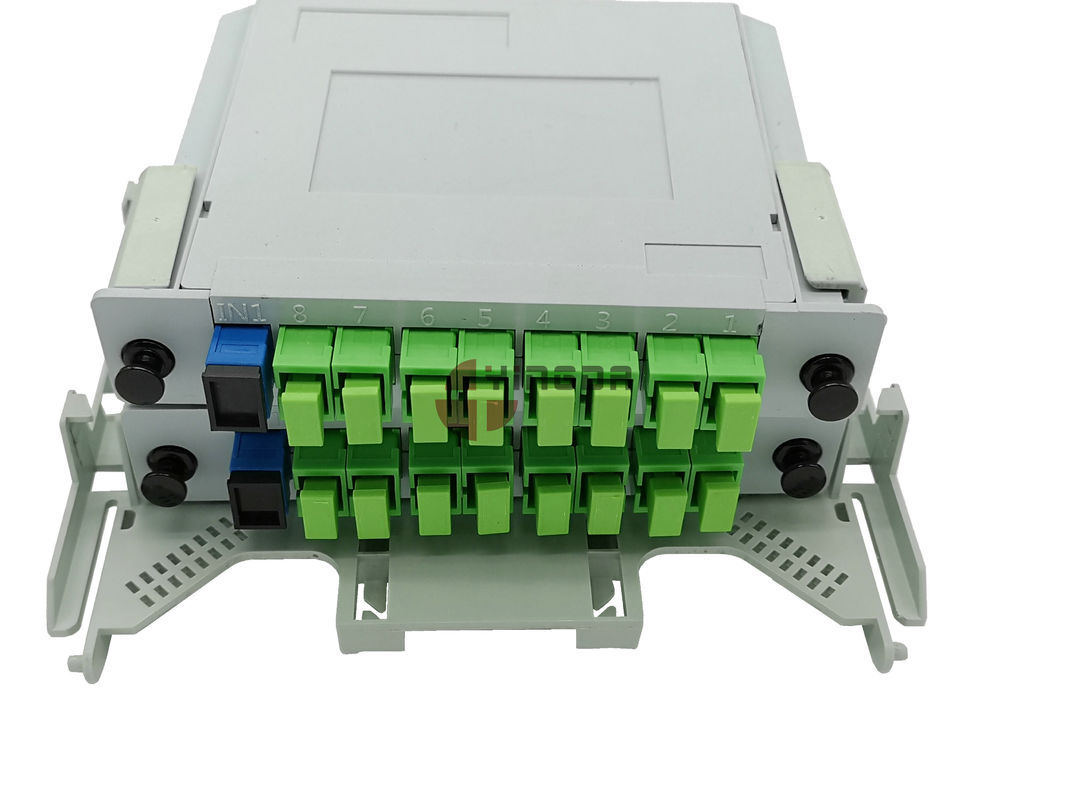

Complete with splitter cassette, accessory bag is put in the box if no cassette. 2cable glands, 1 mid span port, 16 ftth drop cable 2x3mm.

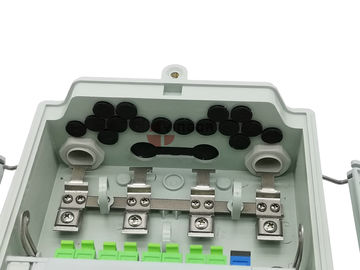

all cable holes with rubber seal, and there is enough space on bottom for feeder cable entry and exit.

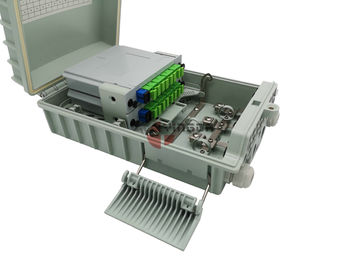

the splice and splitting tray is fix on stainless steel rods, the rod is fix on the box with screws.
there are 2 buckles at both sides of the box, and laser mark on the cover for outdoor use, IP65 waterproof grade.
2 Types of cable management units
Standard accessory
box, key, insulation tape,cable glands,rubber sealings cable ties, nylon tie, wall mount screws, heatshrink protection sleeve, 2 metal sheet for pole mount or wall mount
Features
1.Total enclosed structure with brackets and metal screw
2. Material: PC+ABS,wet-proof,water-proof,dust-proof,anti-aging,protection level up to IP65.
3.Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
4.Cable,pigtails,patch cords are running through own path without disturbing each other,cassette type SC adaptor installation, easy maintenance.
5. Distribution panel can be flipped up, feeder cable can be placed by express port, easy for maintenance and installation.
6. Wall-mounted or poled-mounted, both indoor and outdoor use.
Standard accessory
Screw, base, cover, connecting screw, rubber seal, lock blot, door clip, door clip conecting bracket, loop ring, flap fixed bracket, flip plate A/B/C, flip bracket, fiber fixer, grouding bracket, waterproof blocker, cable exit mat,etc.
Package information
Packing | 500*450*400MM |
Weight | 20kgs |
Quantity | 10 pcs/box |
![]() |
