IP65 Mid Span ABS Optical Distribution Box SC 16 Ports Flat Drop Cable Splice Closure

Place of Origin china
Brand Name YINGDA
Certification ISO
Model Number FDB0216HF-B
Minimum Order Quantity 10pcs
Price negotiable
Packaging Details 1pc/box, 10pcs / master box
Delivery Time 7-10days
Payment Terms T/T, Western Union, MoneyGram, L/C
Supply Ability 10k pices per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material ABS+PC Color Black
Dimension 290*210*82mm Cable Entry 1 Mid Span, 2 Cable Glands Diameter:13.5mm
Cable Exit 16 Pieces SC Reinforced Adapters Splice Tray 5pcs / 24cores
Box Type Fiber Splice Closure
Highlight

fiber optic closure

,

splitter distribution box

Leave a Message
Product Description

IP65 Mid Span ABS Optical Distribution Box SC 16 Ports Flat Drop Cable Splice Closure



The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.



Features

  • Total enclosed structure with key and buckles
  • High strength engineer plastic, wet-proof, water-proof, dust-proof, anti-aging
  • Outdoor wall mount, pole mount or aerial mount, protection level up to IP65
  • Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one
  • Cable, pigtails, and patch cords are running through their own paths without disturbing each other, easy maintenance.
  • Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.



Specification

Model FDB0216HF-A FDB0216HF-B FDB0216HF-C
Dimension (A*B*C) 290*210*82mm
Cable entry 1 uncut port, 2 cable glands:ᴓ12.5-15 mm
Cable exit 16pcs 2x3mm flat ports with rubber boot
Max.Capacity 24core 16cores 16cores
Adapter quantity 16SC 18SC -
Splitter quantity 2pcs 1x8, or 1pc 1x16 mini splitter 2pcs 1x8 mini splitter 2pcs 1x8 or 1pc 1x16 LGX splitter
Waterproof grade IP65
Material PC+ABS
Color black



Product Details



The box can hold maxim 16pcs sc adapter in front of the 1st layer plate to connect the 16pcs drop cable and fast connectors.

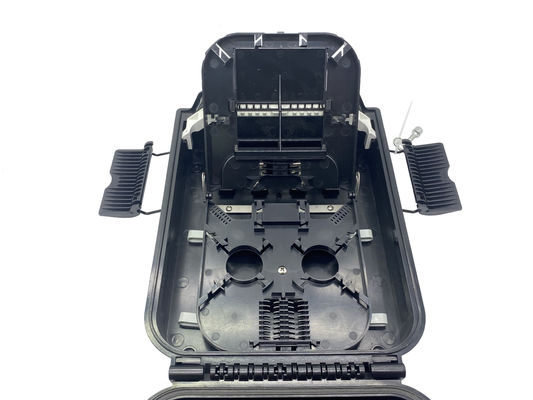

The bracket of the upper holder can be flip up by hand, it is flexible design.



IP65 Mid Span ABS Optical Distribution Box  SC 16 Ports Flat Drop Cable Splice Closure 0

IP65 Mid Span ABS Optical Distribution Box  SC 16 Ports Flat Drop Cable Splice Closure 1

The back of the plate is for splitter fix, there is slots, and the outputs and input can be fixed, and there is input adapter holders at both sides.

The routing is reasonable for the best bend radius request. If there is no connector on input of splitter, we can bring the fiber into the fusion splice tray below to splice with the feeder cable, maximum can do 16cores fiber fusion.

IP65 Mid Span ABS Optical Distribution Box  SC 16 Ports Flat Drop Cable Splice Closure 2



Except the rubber seals for each flat drop cable 2x5mm, there is additional fixture in white for the flat drop cable exit, so after construction, the cables will be in place, not move or mess.

IP65 Mid Span ABS Optical Distribution Box  SC 16 Ports Flat Drop Cable Splice Closure 3



The whole box is made of PC+ABS materials, which is good quality for outdoor use, and also number mark 1 2 3 4 .. for future maintainance or on site construction. We can use most type of fast connectors SC, no matter 50mm, 55mm or 60mm length.



IP65 Mid Span ABS Optical Distribution Box  SC 16 Ports Flat Drop Cable Splice Closure 4



The total internal parts fix on bottom with screws, there is a metal frame, the height can be adjusted.



IP65 Mid Span ABS Optical Distribution Box  SC 16 Ports Flat Drop Cable Splice Closure 5



Laser mark sticker is on internal of the cover, also on the top cover.



IP65 Mid Span ABS Optical Distribution Box  SC 16 Ports Flat Drop Cable Splice Closure 6



The lock key is metal and stainelss steel, and non-fall off type. Before delivery, will add a plastic film to protect the cover from scratches, damage, or fingerprints.



IP65 Mid Span ABS Optical Distribution Box  SC 16 Ports Flat Drop Cable Splice Closure 7
