Black PC ABS 16 Cores FTTH Fiber Optic Splitter Box For Splitter Cassette / Steel Tube

Place of Origin china
Brand Name Yingda
Certification ISO,SGS
Model Number FDB0216V-116SA
Minimum Order Quantity 100pcs
Price negotiable
Packaging Details 1pc/box, 10pcs/carton
Delivery Time 7days
Payment Terms Western Union, T/T, L/C, MoneyGram
Supply Ability 50000PCS/Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Abs+pc Color Gray, Black
Application FTTH, FTTB FTTX Networks, Outoor Product Name 16 Cores Fiber Distribution Box, Fiber Optic Termination Box
Waranty 3 Years Size 287*172*102mm
Connector SC/APC SPLITTER 1:16 Mini Fiber Optic Plc Splitter
Key Feature Mid Span Cable Port
High Light

fiber optic closure

,

splitter distribution box

Leave a Message
Product Description

Wall Mount Black PC ABS 16 Cores FTTH Fiber Optic Distribution Box for Splitter Cassette or Steel Tube





FDB0216V Mid span fiber optical distribution box is a high density solution for FTTH next generation networks, it provide and manage maximum 16 cores fiber termination in a limited space. It can be wall mounting or pole mounted indoor and outdoor application. IP65 waterproof grade.



Specifications:

Model FDB0216V
Material ABS+PCS
Cable port 2round ports, 1mid span port, 16outputs for drop cable
Size(W*H*D)

287*172*102 mm

Max capacity 16 cores
Adapter qty 16 SC
PLC splitter 1x2,1x4,1x8,1x16 steel tube PLC splitter
Color black, gray

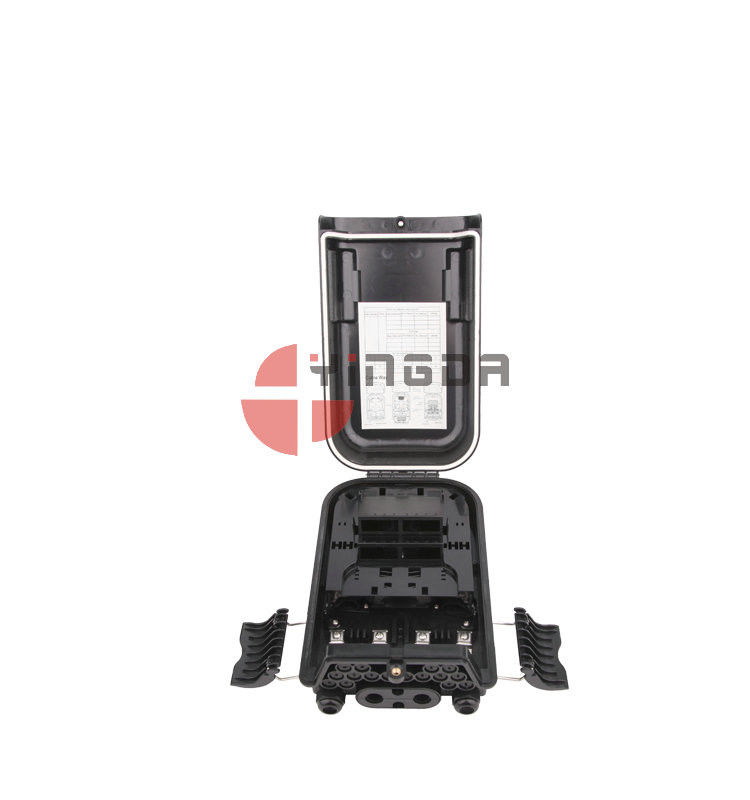

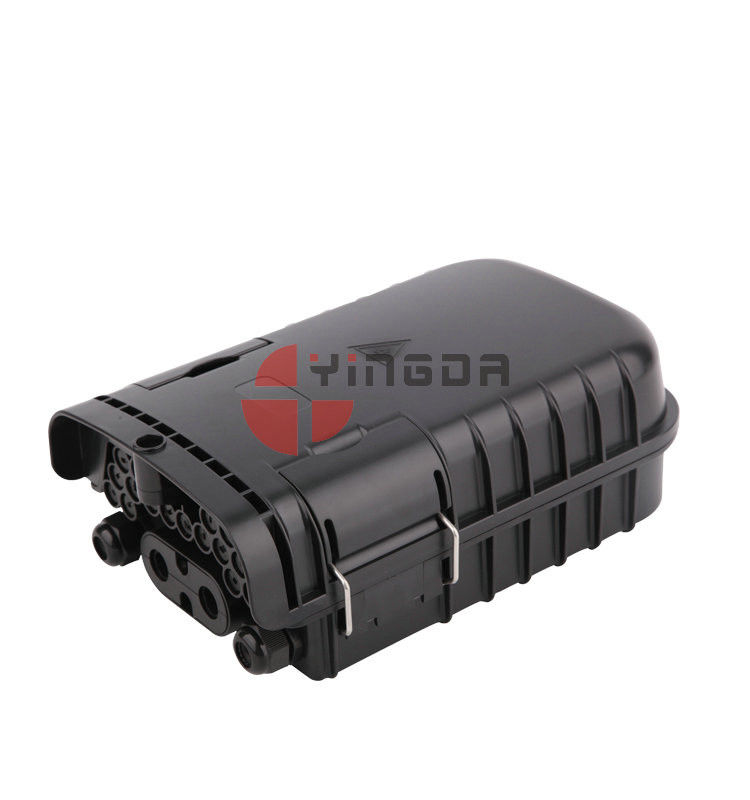

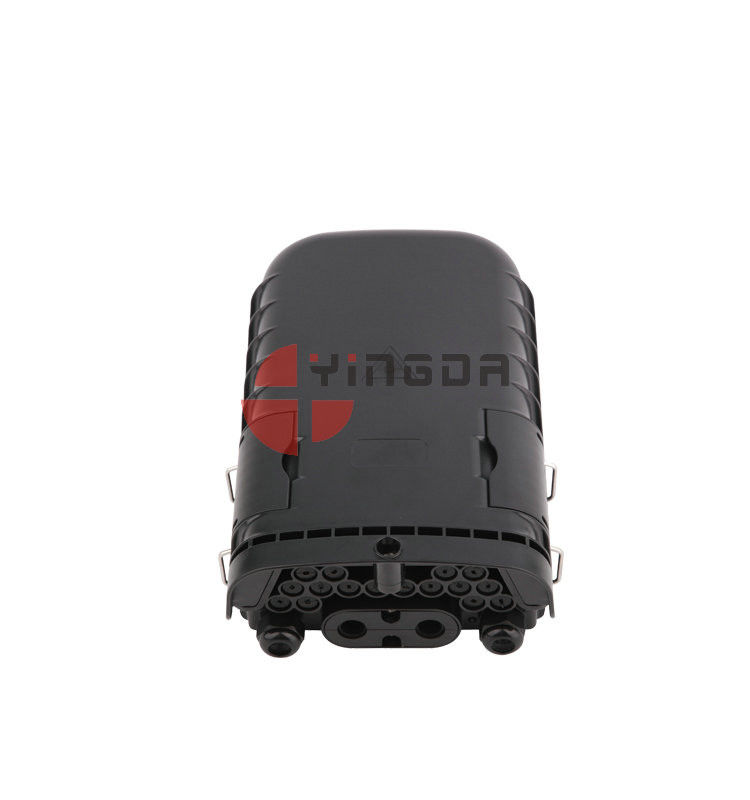

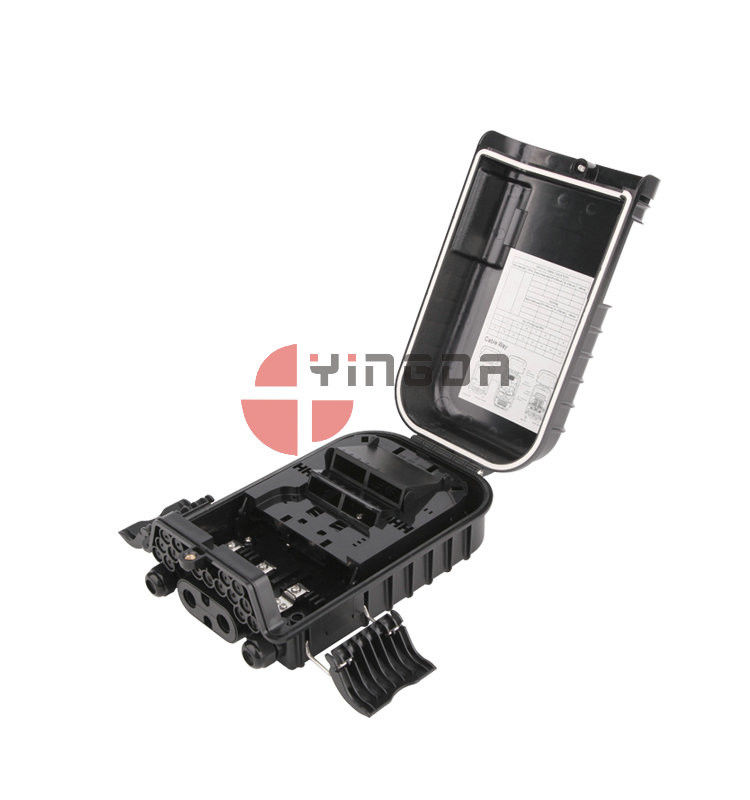

Box Drawing:



Black PC ABS 16 Cores FTTH Fiber Optic Splitter Box For Splitter Cassette / Steel Tube 0    Black PC ABS 16 Cores FTTH Fiber Optic Splitter Box For Splitter Cassette / Steel Tube 1



Black PC ABS 16 Cores FTTH Fiber Optic Splitter Box For Splitter Cassette / Steel Tube 2    Black PC ABS 16 Cores FTTH Fiber Optic Splitter Box For Splitter Cassette / Steel Tube 3



Accessory list:



Wall mounting kits 4pcs
Screws 4pcs
Cable tie 10pcs
Heat shrink protection sleeve 16pcs
Key 1pc
Buffer tube 1pc
Pole mount kits 1set -optional, if need, charge additionally
Adapters 18pcs -optional, if need, charge additionally
Plc splitter 1x8, 1x16 -optional, if need, charge additionally





Feature

  • It is made of high impact plastic material, high strength, good performance
  • Can accommodate 1pc 1x16 or 2pcs 1x8 PLC mini splitter with SC Connector
  • Anti-UV, Ultra violet resistant and rainfall resistant.
  • Wall mounted, pole mounted
  • Max. Hold 16 pcs SC or LC duplex adapters, max. 16cores fusio splice
  • 1pc mid span ports, 2 round cable port, 16 pcs FTTH 2*3mm drop cable outports
  • Pre-install SC adapter or micro splitter, pigtails available.
  • IP65 level for outdoor use

Application

  • Telecommunication Networks
  • WAN,LAN ,CATV Networks
  • Data communications Networks
  • FTTH access terminal network (FAT)
