Fiber Optic Splitter Box
Created with Pixso. IP65 Fiber Optic Splitter Box 3In 8Out Optical Distribution Box Outdoor 1 8 Black Uncut Drop Cable Port

IP65 Fiber Optic Splitter Box 3In 8Out Optical Distribution Box Outdoor 1 8 Black Uncut Drop Cable Port

Brand Name: YINGDA
Model Number: FDB0208C
MOQ: 100PCS
Price: US$3 per unit
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Detail Information
Place of Origin:
CHINA
Certification:
ISO
Adapter:
8 Pcs SC Simplex Or LC Duplex
Max Capacity:
8 Fibers
Output Cable Type:
FTTH Figure-8 Drop Cable
Cable Inport:
3 PCS Rubber Seal
PLC Splitter:
1:2 1:4 1:8 Mini Splitter With SC Connectors
Dimension:
240*195*66mm
Material:
ABS+PC
Color:
White, Black
Application:
FTTH FTTX FTTB FTTR
Waterproof:
IP65
Packaging Details:
1pc / box, 20pcs / carton box
Supply Ability:
5000pcs per month
Highlight:

IP65 Fiber Optic Splitter Box

,

3In 8Out Optical Distribution Box

,

Black Outdoor Optical Distribution Box

Product Description

IP65 Fiber Optic Splitter Box 3In 8Out Optical Distribution Box Outdoor 1*8 Black Uncut Drop Cable Port





IP65 Fiber Optic Splitter Box 3In 8Out Optical Distribution Box Outdoor 1 8 Black Uncut Drop Cable Port 0



For the cable port, there are uncut rubber port and gland waterproof port for optional

For the splitter, it's load with 1pc 1*8 mini steel tube plc splitter or 1pc 1*8 LGX module box



Fiber optic nap box 8cores Features

  • 3inputs, 8outputs
  • Industrial standard user interface max. 8pcs SC/LC duplex
  • Made of high impact engineering plastic
  • Can accommodate 1x4, 1x8 PLC blockless splitter
  • Anti-UV, Ultra violet resistant and rainfall resistant
  • Outdoor wall mount or pole mount
  • Up to 8 FTTH drops



FDB0208C 8 Port Optical Splitter Box Specifications

Model FDB0208C
Height 240mm
Width 195mm
Depth 66mm
Net weight 0.55kg
Packed weight 0.6kg
IP rating IP65
Suitable for adaptor type SC Simplex or LC Duplex
Number of fibres 8
Number of ports 8
Material ABS+PC
Colour White
Operating temperature -40°C to +60°C
Designed in accordance with TIA/EIA 568.C, EN50173, IEC60304, IEC61754, EN297-1, ISO/IEC 11801
Compliant to RoHS, Reach/SVHC



FDB0208C 8 Port Optical Splitter Box Application

  • Data centres, premise installations, telecommunication networks
  • Ethernet, Fibre Channel, ATM, LAN, MAN and WAN
  • Data communication and telecommunication networks
  • Indoor /outdoor applications



FDB0208C 8 Port Optical Splitter Box Fully Load

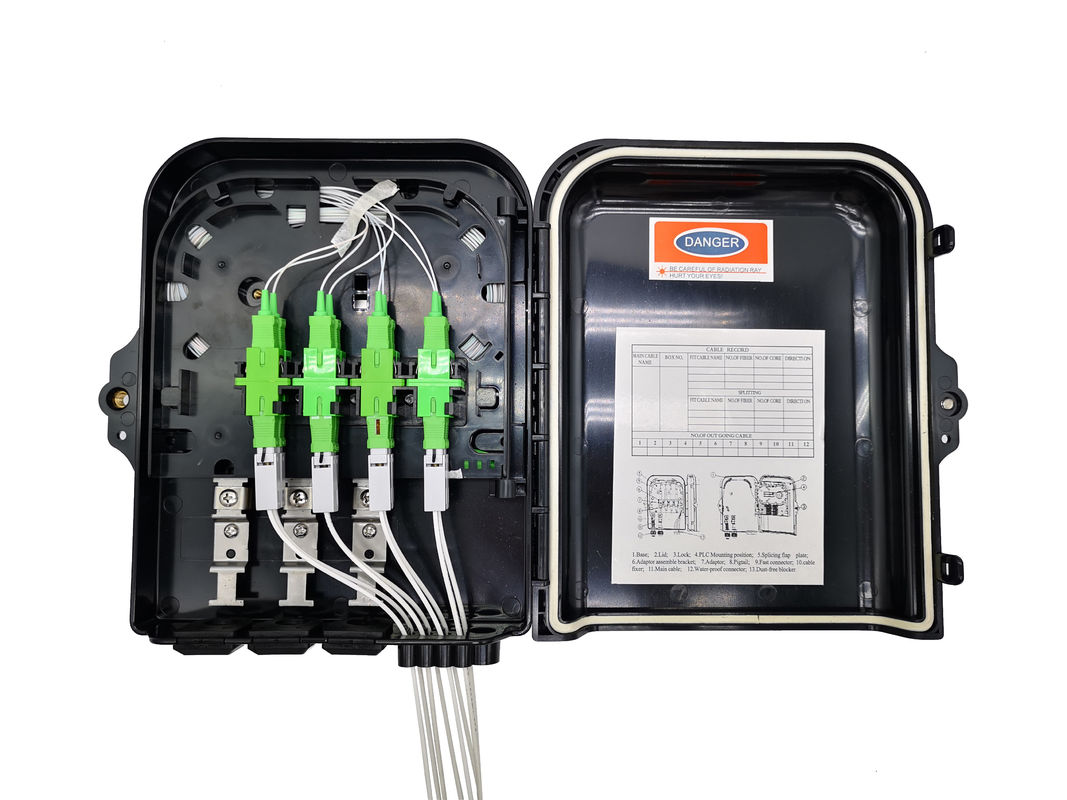

The box fully load is 1pc 1x8 splitter and 8pcs SC adapters, it can use any kind of fast connectors, there is enough space for the fast connector and drop cables.

IP65 Fiber Optic Splitter Box 3In 8Out Optical Distribution Box Outdoor 1 8 Black Uncut Drop Cable Port 1

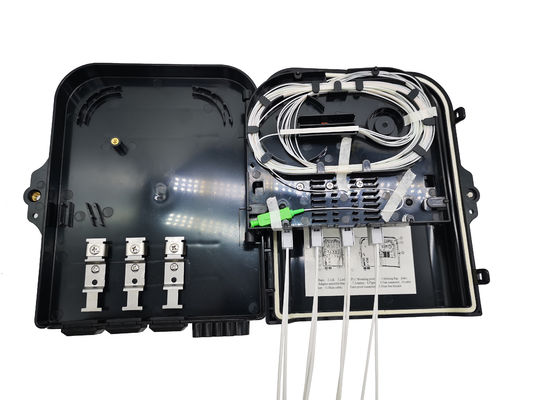

The back of the adapter plate is for splitter installation, the steel tube can fix in the slot of splitter, and then routing around, also there are 6slots for sleeve, dual layer can do 12cores maximum.

IP65 Fiber Optic Splitter Box 3In 8Out Optical Distribution Box Outdoor 1 8 Black Uncut Drop Cable Port 2

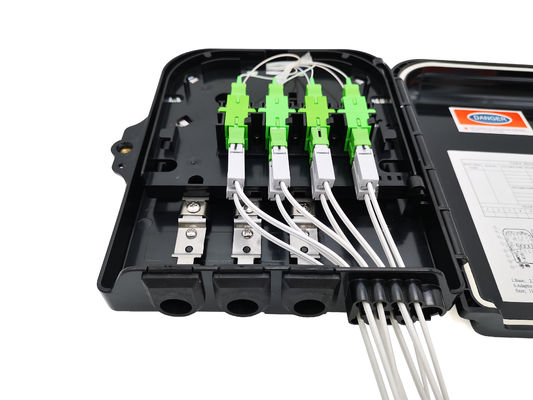

It is uncut port for cable go through the box without cutting, it is good choice for ftth network, and that why it is so popular now.

The seals of all ports can be removed by hand, it's convenient to operate on side.



IP65 Fiber Optic Splitter Box 3In 8Out Optical Distribution Box Outdoor 1 8 Black Uncut Drop Cable Port 3IP65 Fiber Optic Splitter Box 3In 8Out Optical Distribution Box Outdoor 1 8 Black Uncut Drop Cable Port 4

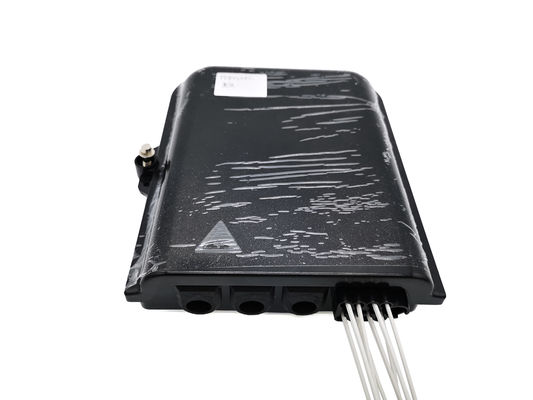

The box is hinge design with the cover and the bottom, use a metal key to lock the box, can add a key to lock again, besides, there are 2 clips to close the box at the same side. The box is made of ABS PC material,high strength and anti-impact, the top cover can print customer logo or models as requested.



IP65 Fiber Optic Splitter Box 3In 8Out Optical Distribution Box Outdoor 1 8 Black Uncut Drop Cable Port 5IP65 Fiber Optic Splitter Box 3In 8Out Optical Distribution Box Outdoor 1 8 Black Uncut Drop Cable Port 6



The box standard configure wall mounted holes on back of the bottom, pole mount straps can be insert through for pole mounting application.

It is outdoor application box, IP65 protection grade.



IP65 Fiber Optic Splitter Box 3In 8Out Optical Distribution Box Outdoor 1 8 Black Uncut Drop Cable Port 7IP65 Fiber Optic Splitter Box 3In 8Out Optical Distribution Box Outdoor 1 8 Black Uncut Drop Cable Port 8



Standard Accessory include nylon tie, cable clamps, mounting screws, drop cable holders,  heat shrink sleeve, and label mark.

The accessory bag will put in the box before delivery.



IP65 Fiber Optic Splitter Box 3In 8Out Optical Distribution Box Outdoor 1 8 Black Uncut Drop Cable Port 9





Fiber distribution box installation method: wall mounted and pole mounted



IP65 Fiber Optic Splitter Box 3In 8Out Optical Distribution Box Outdoor 1 8 Black Uncut Drop Cable Port 10IP65 Fiber Optic Splitter Box 3In 8Out Optical Distribution Box Outdoor 1 8 Black Uncut Drop Cable Port 11





Fiber optic nap box 8cores more color for option

IP65 Fiber Optic Splitter Box 3In 8Out Optical Distribution Box Outdoor 1 8 Black Uncut Drop Cable Port 12





FTTH solution provider's Workshop Show



IP65 Fiber Optic Splitter Box 3In 8Out Optical Distribution Box Outdoor 1 8 Black Uncut Drop Cable Port 13IP65 Fiber Optic Splitter Box 3In 8Out Optical Distribution Box Outdoor 1 8 Black Uncut Drop Cable Port 14

IP65 Fiber Optic Splitter Box 3In 8Out Optical Distribution Box Outdoor 1 8 Black Uncut Drop Cable Port 15IP65 Fiber Optic Splitter Box 3In 8Out Optical Distribution Box Outdoor 1 8 Black Uncut Drop Cable Port 16
