4 Core FTTH Outdoor Fiber Optic Termination Box 1:4 Splitter SC Wall Mount Waterproof

Name: 4 Core FTTH Outdoor Fiber Optic Termination Box 1:4 Splitter SC Wall Mount Waterproof
Brand: YINGDA TECHNOLOGY LIMITED
SKU: FTB104C
Price: 2.18 USD
Availability: InStock

Brand Name:	YINGDA
Model Number:	FTB104C
MOQ:	100PCS
Price:	0.18USD-4.29USD
Delivery Time:	5-8 working days
Payment Terms:	Western Union,T/T,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO,CE,ROHS

Capacity:

4 Fibers Single Fiber Terminal Box

Cable Inport:

1in, 4 Out Termination Box

Dimension:

210*140*40mm

Cable Enter Size:

7 To 10mm

Material:

ABS Anti-UV, Flame Retartant

Color:

White

Application:

FTTH FTTX FTTB FTTR

Adapter:

SC LC FC ST

Cable Out Size:

2.0*3.0mm FTTH Drop Cable

Splitter Type:

1x4 1:4 Splitter Distribution Box

Packaging Details:

1 pc / box, 60 pcs / carton shipping box

Supply Ability:

100000 pcs / month

Highlight:

fiber optic junction box

fiber optic distribution box

Product Description

4 Core FTTH Outdoor Fiber Optic Termination Box 1:4 Splitter SC Wall Mount Waterproof

FTB104C Fiber Termination box are used in the end termination of residential buildings and villas ,to fix and splice with pigtails; it provides a high density wall mounted solution for next generation networks, which aims to provide and manage maximum numbers of fiber termination in a limited space. It is normally installed in the way of wall mounting or pole mounting, May adapt variety of optical connection styles; Optical fiber can be managed effectively.

FTB104C Fiber Termination Box Features

·Water-proof design with IP-65 Protection Level

·Integrated with splice cassette and cable management system

·Manage fiber in a reasonable fiber radius condition

·Easy to maintain and extend the capacity

·Fiber bend radius control more than 40mm

·Suitable for the fusion splice or mechanical splice

·4 ports cable entrance for FTTH drop cable

4 Port Optical Terminal Box Specification

Model	FTB104C
Dimension	21014040mm
Max capacity	1inports, 4outports for FTTH drop cable
Cable diameter	φ7mm～φ10mm
Adapter qty	4xSC, 4xLC duplex
PLC splitter (blockless type)	1x2, 1x4
Color	white
N.w.	0.35kg
Fiber connector insertion loss	<0.3dB
Fiber connector returen loss	UPC≥50dB,APC≥60dB,
Material	ABS / PC

Fiber Optic Termination Box Order information

FTB-104C-XX-XX-XX-XXX:

MODEL

XX: Adapter

XX: Pigtail

XX:Fiber count

XXX: PLC splitter blockless type)

FTB104C

SCU:SC/UPC

SCA:SC/APC

LCU:LC/UPC

LCA:LC/APC

NU=not include

SCU:SC/UPC

SCA:SC/APC

LCU:LC/UPC

LCA:LC/APC

NU=not include

01=1fiber

02=2fiber

03=3fibers

04-4fibers

102=1x2

104=1x4

NU=not include

4Core Fiber Terminal BoxStandard Configuration

Splice cassette and cable management tool, installation nuts and bolts, protection sleeves, hose clamp, rubber steal for cable entrance.

FAT box Optional Configuration

Extra lock and key

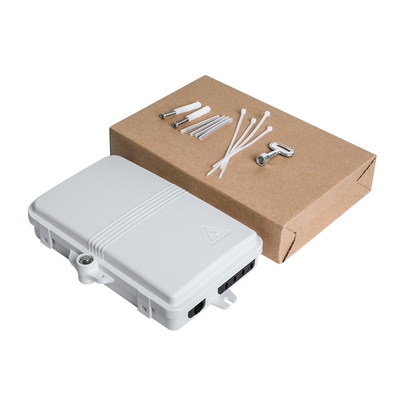

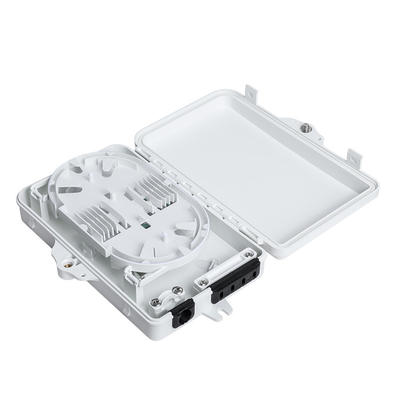

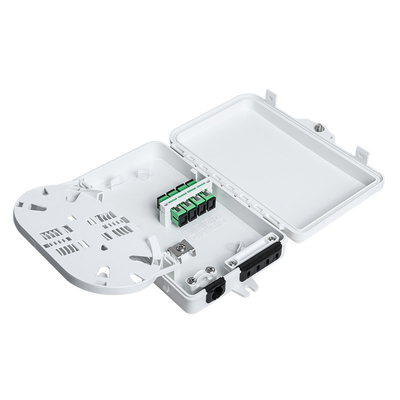

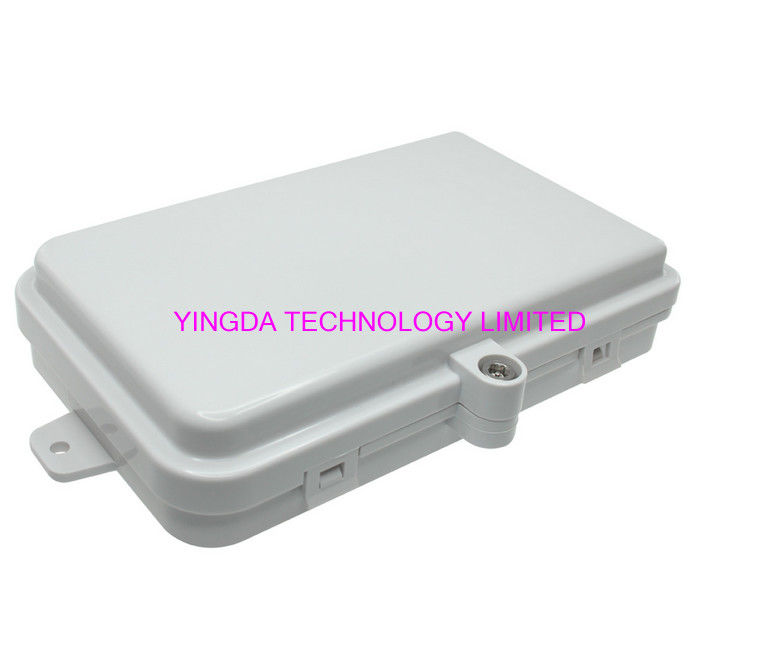

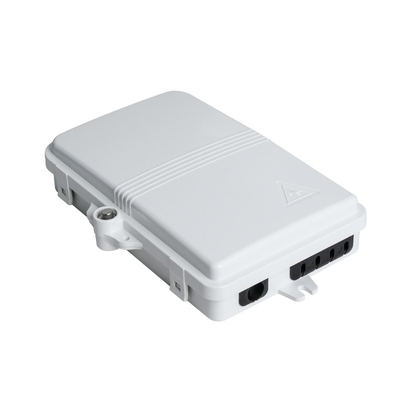

4 Core FTTH Fiber Optic Termination Box Atcual Pictures

More capacity are available

Cable termination box 2Cores Fiber access terminal box 6Cores Fiber access wall splitter box 8cores
