2 Core optical fiber termination box load with SC/upc duplex adapter and pigtails

Name: 2 Core optical fiber termination box load with SC/upc duplex adapter and pigtails
Brand: YINGDA TECHNOLOGY LIMITED
SKU: FTB-86G
Price: 2.18 USD
Availability: InStock

Brand Name:	YINGDA
Model Number:	FTB-86G
MOQ:	500PCS
Price:	0.18USD-4.29USD
Delivery Time:	5days
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

ISO

Color:

White

Fiber Qty:

2 Fibers

Adapter Qty:

1x SC Duplex

Dimension:

125*80*26mm

Accessory:

2 Pieces Expansion Screws

Application:

Indoor Ftth Network

Cable Port:

2pcs 3mm Or 2x3mm Drop Cable

Adapter And Pigtails:

Can Be Pre-terminated At Factory

Fiber Mode:

Single Mode Or Multimode

Packaging Details:

1pc/ box, individual pacakge with bubble inside

Highlight:

fiber optic terminal box

fiber optic distribution box

Product Description

2 Core optical fiber termination box load with SC/upc duplex adapter and pigtails

Features:

Compact size, light weight
Reasonable inner space design
Support MM or SM fiber connection
interfaces for end users, SC duplex, LC quad Adapters avaiable
FTTH indoor wall mounted with mechanical protection function
Max capacity 4fibers, suitable for indoor cable or drop cable
clip with cover design, easy and fast to open and close
May store surplus fiber inside, easy for operation

Applications

A user end product to realize optical fiber to desktop solution in FTTH network
It can be used in home or working area to accomplish double-core fiber access and port output.
Used in the end termination of residential buildings and villas, to fix and splice with pigtails.

Specifications

Model	FTB86G
Dimension	1258026mm
Maximum Capacity	4 fibers
Adapter qty	1xSC, 1XLC quad
Cable ports	2pcs
Cable type	Indoor or drop cable
Material	ABS
Carton size	450450405mm
Qty/carton	400pcs
Gross weight	25kgs
Connector insertion loss	<0.3dB
Connector return loss	≥50dB (upc),≥55dB (Apc);≥35dB (pc)
Working temperature	-40~+85°C

More pictures

2 Core optical fiber termination box load with SC/upc duplex adapter and pigtails 0

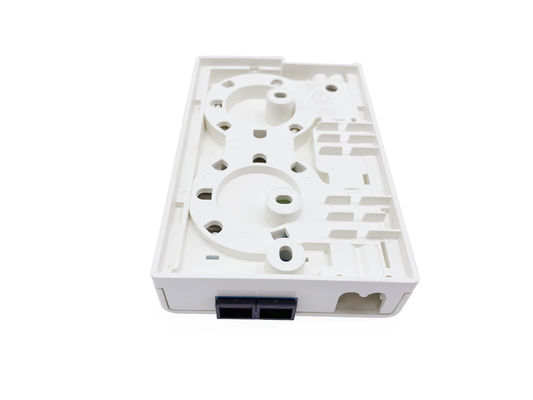

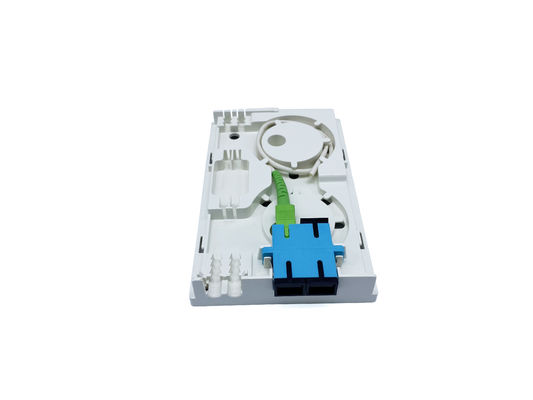

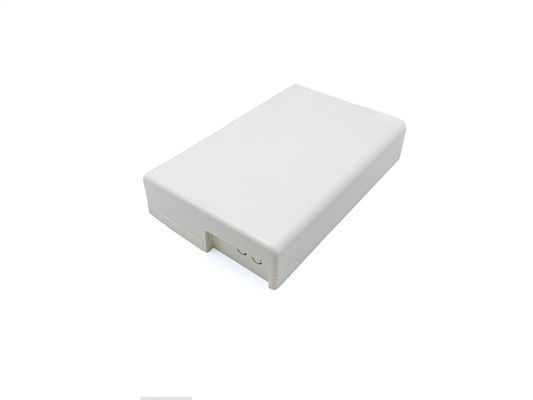

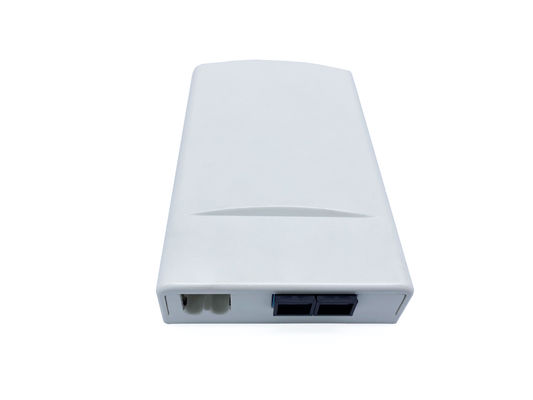

temrinal box overview terminal box internal view

this termination box can hold 1x SC duplex adapters, APC,PC or UPC is available

made of high strength ABS plastic material, high quality, pleasant outer appearance

compact size, light weight

2 Core optical fiber termination box load with SC/upc duplex adapter and pigtails 2

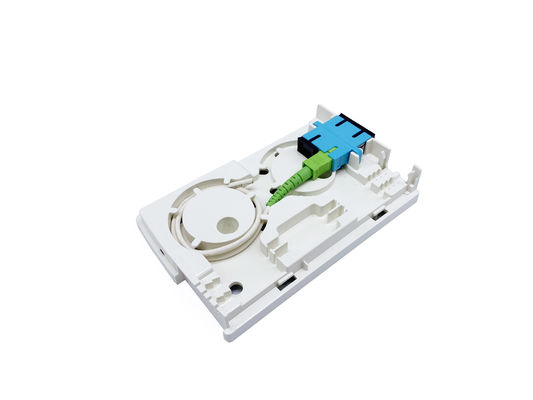

each box load with 1x splice tray, flame retardant

enough space for fiber storage and fiber distributiion

2pcs outport for ftth drop calbe or indoor cable

indoor FTTH application, wall mounted

2 Core optical fiber termination box load with SC/upc duplex adapter and pigtails 4

whole box can pre-terminated with pigtails or patchcord,save construction time, and save labour cost

only need to fusion the cable, then finish.

Order information

Model

Fiber count

connector type

Adapter type

Pigtail

adapters

FTB86G

01=1fibers

02=2fibers

03=3fibers

04=4fibers

SCA=SC/APC

SCU=SC/UPC

LCA=LC/APC

LCU=LC/UPC

SX=Simplex

DX=duplex

QD=quad

Y=included

N=not included

Y=included

N=not included

For example:

FTB-86G-02-SCA-DX-YY

FTB86G box with 2pcs SC/APC adapters and pigtails.
