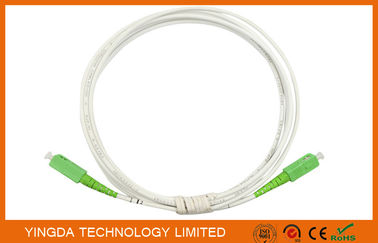

SC / APC - SC / APC Indoor Fiber Optic Patch Cord GJXFH G657A2 LSZH

Name: SC / APC - SC / APC Indoor Fiber Optic Patch Cord GJXFH G657A2 LSZH
Brand: YINGDA TECHNOLOGY LIMITED
SKU: FHPC-SCA-01-F8F-A1W
Price: 14.36 USD
Availability: InStock

Brand Name:	YINGDA
Model Number:	FHPC-SCA-01-F8F-A1W
MOQ:	100PCS
Price:	0.36USD-30USD

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

ISO,SGS,ROHS

Application:

FTTH Indoor Wiring

Connector:

SC/APC

Fiber Count:

1core

Fiber Type:

G657A1 Or G657A2

Cable Sheath:

LSZH

Cable Length:

1meter Or On Customized

Cable Color:

White

Insertion Loss:

<0.3dB

Cable Strength Member:

FRP (Fiber Reinforced Polymer/Plastic)

Drop Cable Diameter:

2*3.0mm

Product Name:

Fiber Cable,fiber Optic Patch Cables,fiber Optics Patch Cords,fiber Optic Jumpers,fiber Optic Jumper Cables,fiber Optik Patch Cord

Packaging Details:

1 piece / bag

Highlight:

fiber optic patch cable

fiber optic jumper

Product Description

SC / APC - SC / APC Indoor Fiber Optic Patch Cord GJXFH G657A2 LSZH

The optical fiber unit is positioned in the center ,two parallel fiber reinforced plastics FRP

are placed at the two sides ,then the cable is completed with a black or color LSZH Sheath.

Application

Used as access building cable
Used in indoor cabling especially used for FTTH

Implementation standards

YD/T1997-2009 access network butterfly optical drop cable

Specification

Item	SC FC ST LC drop cable PATCH CORD
IL(dB)	≤0.2	Max IL(dB)	≤0.3
Working temperature(°C)	-40~+80	Temperature cycle(°C)	-40~+75
Storage temperature(°C)	-40~+85	Interchangeability (dB)	≤0.2
Plug times	1000 times	Repeat ability(dB)	≤0.1
RL (dB)	≥45 ≥50 ≥60	Immersion	Temperature 43°C, PH5.5 for 7days

Delivery Length:

1-300METERS / PACK

Order information

FHPC-XXX-XX-XXX-XXX

1 - 2 - 3 4 - 5 6

FHPC

Connector

type

Fiber

count

Cable type

Strength

member

Fiber type

Cable

color

FH=ftth

Pc=patch

cord

SCU=SC/UPC

SCA=SC/APC

LCU=LC/UPC

....

01=1core

02=2core

04=4core

....

F8=Figure 8

SF=self-supporting

F=FRP

S=steel

5D=G.652D

A1=G.657A1

A2=G.657A2

W=white

B=Black

Y=yellow

FTTH Patch Cord can connect with all kinds of fiber optic connectors, like SC FC ST LC...

below some photo for reference:

SC / APC - SC / APC Indoor Fiber Optic Patch Cord GJXFH G657A2 LSZH 0

SC / APC - SC / APC Indoor Fiber Optic Patch Cord GJXFH G657A2 LSZH 1

FTTH drop cable can do in two colors: BLACK / White.

If no special advice, will do BLACK COLOR. SC / APC - SC / APC Indoor Fiber Optic Patch Cord GJXFH G657A2 LSZH 2
