Fiber Optic Patch Cord
Created with Pixso. LC / APC Fiber Optic Patch Cord MT-RJ to SC Singlmode Duplex Zipcord Without Clip Yellow

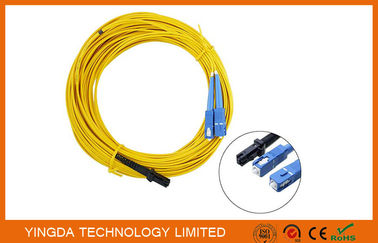

LC / APC Fiber Optic Patch Cord MT-RJ to SC Singlmode Duplex Zipcord Without Clip Yellow

Brand Name: YINGDA
Model Number: MTRJ-DSCPC-S-2
MOQ: 500 pcs
Price: negotiable
Delivery Time: 5-8days after payment
Detail Information
Place of Origin:
china
Certification:
ISO SGS ROHS
Connector:
MTRJ, SC
Fiber Count:
Duplex
Insertion Loss:
< 0.3 DB
Return Loss:
>55dB Upc
Fiber Length:
20 Meter
Cable Diameter:
2.0 Mm
Cable Color:
Blue
Connector Color:
SC - Blue, MT-RJ : Black
Product Name:
Fiber Cable,fiber Optic Patch Cables,fiber Optics Patch Cords,fiber Optic Jumpers,fiber Optic Jumper Cables,fiber Optik Patch Cord
Packaging Details:
1 pc / plastic bag
Supply Ability:
15,000 pcs / day
Highlight:

fiber optic patch cable

,

multimode patch cord

Product Description

Fiber Optic Patch Cord MT-RJ to SC Singlmode Duplex  Zipcord Without Clip Yellow Cable





Fiber optic patch cord is one of most commonly used components in fiber optic network. fiber optic

patch cords sometimes is also called fiber optic jumper or fiber optic patch cables. generally there

are two types of fiber optic patch cords: single mode fiber optic patch cords and multimode fiber optic

patch cords. here the word mode means the transmitting mode of the fiber optic light in the fiber optic

cable core. usually single mode fiber optic patch cord are with 9/125 fiber glass and is yellow jacket

color, multi mode fiber optic patch cord are with 50/125 or 62.5/125 fiber glass and is orange color.



SC fiber optic patch cable is one of the earliest stype and one of the most commonly used fiber optic

cable, it is convenient to use and cost saving, SC fiber optic patch cord is widely uesed in fiber optic

networks. SC fiber patch cable is with zirconia sleeve and plastic housing.



The name MT-RJ comes that MTRJ fiber optic connector is developed from MT type and RJ type

connectors. MT-RJ features two-fiber connection ,that is to say ,two fiberglass connection within

one MT-RJ fiber optic connector. another special point is MT-RJ is with plastic housing and plastic

ferrule. there are female type MT-RJ fiber optic patch cords and male type MT-RJ fiber optic patch

cords, the difference is male type MT-RJ is with two pins on each of the MT-RJ fiber optic connector.





Features

  • Low insertion loss
  • Repeat ability
  • High return loss
  • Mutual Insert performance
  • Good temperature stability
  • Strong tensile property
  • Cheap multimode fiber price,short distance transmission
  • Wide transmission bandwidth



Application

  1. Fiber communication system
  2. Fiber access network
  3. Data transmission
  4. CATV
  5. LAN
  6. Test equipment
  7. Optical fiber sensor



Specification

Item

Standard,Master

Connector type

LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,

FC/APC,LC/APC.MU/APC

Duplex MTRJ/Female, MTRJ/Male

Fiber Type



9/125 SMF-28 or equivalent (Singlemade) OS1

50/125, 62.5/125 (Multimode) OM2&OM1

50/125, 10G  (Multimode) OM3

Cable Type

Simplex, Duplex (Zipcord)

Φ3.0mm, Φ2.0mm, Φ1.8mm

Φ1.6mm PVC or LSZH

Φ0.9mm, Φ0.6mm buffered fiber PVC or LSZH

Polishing Manner

UPC,SPC,APC (8°& 6°)

Insertion Loss

≤ 0.1dB (For Singlemode Master)

≤ 0.25dB (For Singlemode Standard)

≤ 0.25dB (For Multimode)

Tested by JDS RM 3750


Return Loss (For Singlemode)

UPC ≥ 50dB

SPC ≥ 55dB

APC ≥ 60dB (typ.65dB)

Tested by JDS RM3750

Repeatability

 ±0.1dB

Operating temperature

-400C to 850C


Geometry Requirement

(For Singlemode)

Ferrule Endface Radius

7mm ≤ R ≤ 12mm (For APC)

10mm ≤ R ≤ 25mm (For Standard)

Apex Offset ≤ 30 μm (For Master)

Apex Offset ≤ 50 μm (For Standard)

Undercut -50nm ≤ U ≤ 50nm

Tested by DORC ZX-1



Ordering information



Boot (cable size)

Boot Color

Fiber Type

Cable number

Ferrule

Length

0.9mm

2.0mm

3.0mm

Black

Biege

Blue

Gray

White

Yellow

9/125um SM

50/125um MM

62.5/125um MM

OM3

OM4

Simplex

Duplex

Multi-fiber

PC

APC

Customized
