| Brand Name: | YINGDA |
| Model Number: | YDPC-LLA-SX-01 |
| MOQ: | 500 pcs |
| Price: | negotiable |
| Delivery Time: | 5-8days after payment |

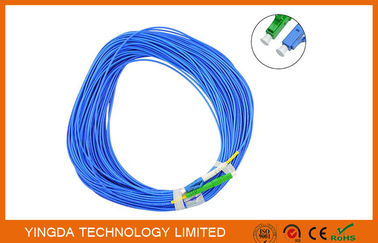

LC to LC APC Fiber Optic Patch Cord Singlemode, Fiber Patch Cable LC - LC / APC
Fiber optic patch cord is one of most commonly used components in fiber optic network. fiber optic patch cords sometimes is also called fiber optic jumper or fiber optic patch cables. generally there are two types of fiber optic patch cords: single mode fiber optic patch cords and multimode fiber optic patch cords. here the word mode means the transmitting mode of the fiber optic light in the fiber optic cable core. usually single mode fiber optic patch cord are with 9/125 fiber glass and is yellow jacket color, multi mode fiber optic patch cord are with 50/125 or 62.5/125 fiber glass and is orange color.
The LC fiber optic patch cable is with a small form factor (SFF) connector and is ideal for high density applications.LC fiber optic patch cord connector has a zirconia ceramic ferrule measuring 1.25mm O.D.with a PC or APC endface, and provides optimum insertion and return loss.
Fiber optic patch cord are with various kinds of cables,PVC, Riser, Plenum, OFNR,OFNP,LSZH (LSOH) 10 Gig Aqua, there are simplex fiber optic patch cord and duplex fiber optic patch cord and multi fiber cable assemblies,and there are ribbon fan out fiber cable assemblies and bundle fiber optic cable assemblies.Typical fiber optic patch cord cable diameter can be 0.9mm,2mm,or 3mm.
FIber patch cord Features
Fiber Optic Patch Core Application
Specification
|
Jacket |
Riser (OFNR), Plenum (OFNP), Low Smoke Zero Halogens (LSZH), PVC |
|
Diameter |
0.9mm (9/125um), 1.6mm, 1.8mm, 2.0mm, 3.0mm |
|
Jacket Colors |
Aqua, Orange, Green, Red, Blue, Gray, Black, Yellow |
|
Connector |
FC,SC,ST,MU,LC, D4,DIN,E2000 MT-RJ,MPO FC,SC,ST,MU, LC,SMA,E2000 MT-RJ,FDDI, MPO,ESCON |
|
Insertion Loss (dB) |
≤ 0.2 (UPC) |
|
Exchangeability |
≤ 0.2 dB |
|
Tensile Strength |
≤ 0.2 dB ( 0 to15 Kgf ) |
|
Temp. Range |
(- 40 to +80 degree centigrade) |
|
Polish |
UPC APC PC |
|
Cable type |
Singlemode, multimode |
|
Apex offset |
≤50 um, ≤100 um |
|
Fiber Spherical Height |
-90 nm , +50 nm |
|
Angular Offset |
8°± 0.5°C (APC) |
Order information
|
Connector A |
Connector B |
Fiber type |
Cable diameter |
Cable jacket |
Length |
|
LC/UPC |
LC/UPC |
9/125um |
0.9mm simplex |
PVC |
0.5m |
|
LC/APC |
LC/APC |
50/125um |
1.8mm simplex |
LSZH |
1m |
|
FC/UPC |
FC/UPC |
62.5/125um |
2.0simplex |
|
3m |
|
FC/APC |
FC/APC |
50/125um OM3 |
3.0mm simplex |
|
5m |
|
SC/UPC |
SC/UPC |
50/125um OM4 |
1.8mm duplex |
|
... |
|
SC/APC |
SC/APC |
|
2.0mm duplex |
|
|
|
ST/UPC |
ST/UPC |
|
3.0mm duplex |
|
|
|
MTRJ/female |
MTRJ/female |
|
3.0mm round |
|
|
|
MTRJ/male |
MTRJ/male |
|
... |
|
|
|
MU/UPC |
MU/UPC |
|
|
|
|
|
MU/APC |
MU/APC |
|
|
|
|
|
E2000 |
E2000 |
|
|
|
|
|
... |
... |
|
|
|
|
|
|
