Brand Name: | YINGDA |
Model Number: | NSN boot |
MOQ: | 10pcs |
Price: | Negotiation |
Delivery Time: | 5-7 working days |
Payment Terms: | TT 100% |
These assemblies are intended to connect remote radio modules (RRU/RRH) to Nokia cellular base stations. The LC-Uniboot connector has a compact design and change polarity feature, making it a reliable and secure connection solution.
The assembly is made up of a compact cable with a jacket made from thermoplastic UV-stabilized halogen-free compound, providing reliable protection against precipitation and long-term exposure to UV radiation. Additionally, it can perform in a wide temperature range, a crucial feature for outdoor equipment.
The LC-Uniboot connector is installed directly to the outer jacket of the optical cable, together with the flexible harmonic boot. This combination provides a reliable water and dust-sealed connection to outdoor Nokia equipment. The absence of fanouts in the design provides simplicity and reliability, especially during temperature changes.
Overall, the FTTA Series FO Cable Assemblies with LC Uniboot connectors and protective harmonic boot are an excellent choice for those who require a secure and reliable connection to their outdoor Nokia equipment.
NSN Boot DLC Connector Type
Type | Reference | Note | |
LC |
IEC 61754-20 |
Single mode duplex |
APC: Green connectors
UPC: Blue connectors |
Multimode duplex | UPC: Grey Connectors |
Dimension and diagrams

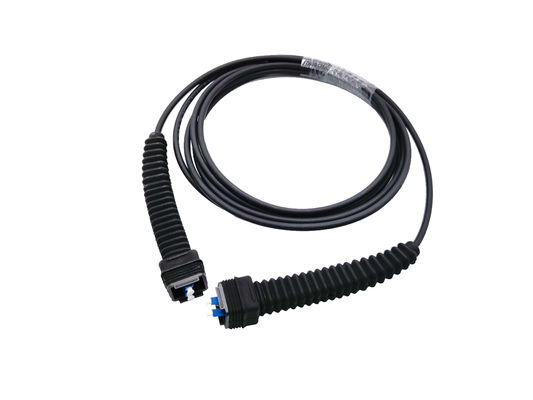

NSN Boot 180°duplex LC patch cord

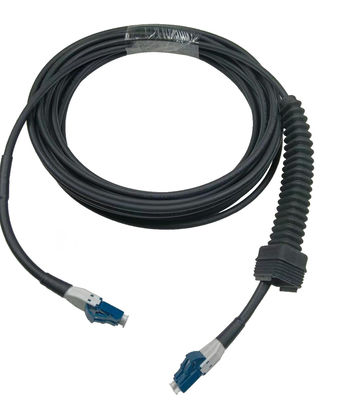

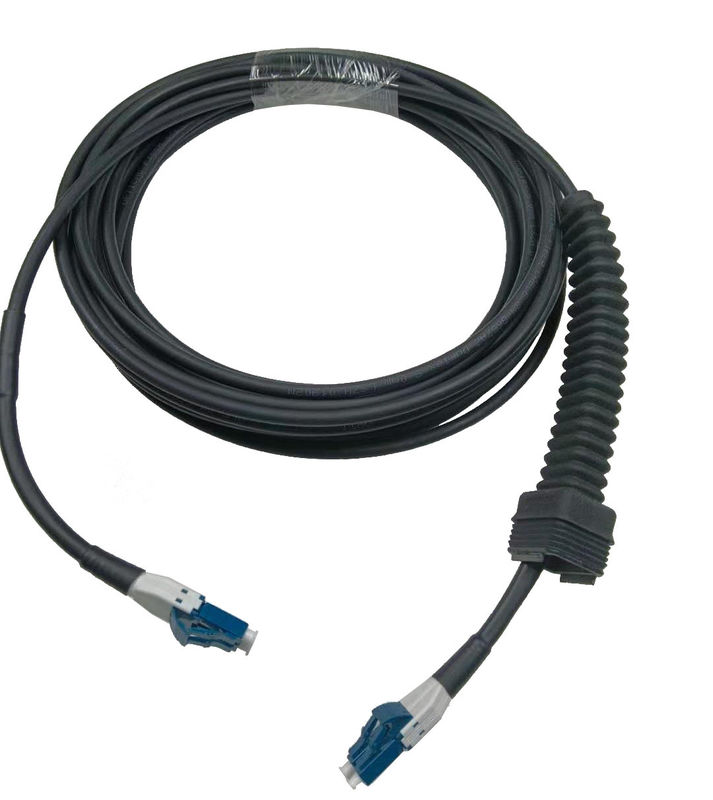

NSN boot 90°duplex LC Fiber Optic Jumper
NSN Boot DLC Patch Cord Tolerance Requirement
Overall length (L) (M) | length of tolerance(CM) |
0<L≤20 | +10/-0 |
20<L≤40 | +15/-0 |
L>40 | +0.5%L/-0 |
4 Types of Cable for NSN Boot
Cable Parameters:5.0mm
Cable Count |
Out sheath Diameter (MM) |
Weight (KG) |
Minimum allowable Tensile Strength (N) |
minimum allowable Crush Load (N/100mm) |
Minimum Bending Radius (MM) |
Storage temperature (℃) |
|||
short term | long term | short term | long term | short term | long term | ||||
2 | 5.0±0.2 | 30 | 800 | 400 | 2000 | 1000 | 20D | 10D | -20 ~~ +70 |
Cable Parameters:5.0mm SUS spiral armored
Cable Count |
Out sheath Diameter (MM) |
Weight (KG) |
Minimum allowable Tensile Strength (N) |
minimum allowable Crush Load (N/100mm) |
Minimum Bending Radius (MM) |
Storage temperature (℃) |
|||
short term | long term | short term | long term | short term | long term | ||||
2 | 5.0±0.2 | 45 | 400 | 800 | 2000 | 3000 | 20D | 10D | -20~~+70 |
The Fiber Optic Patch Cord, also known as Fiber Patch Cable or Fiber Optic Cable Connectors, is available in simplex or duplex with a PE or LSZH sheath. The connector type is SC APC and the storage temperature ranges from -40°C to +85°C.
Can be support OEM lable, logo...
Packing:
