Fiber Optic Splitter Box
Created with Pixso. 24 Port Fiber Optic Distribution Box Pole Mount With SC Adapters / Pigtails

24 Port Fiber Optic Distribution Box Pole Mount With SC Adapters / Pigtails

Brand Name: yingda
Model Number: FDB0324
MOQ: 10pcs
Price: 1.0USD-18.6USD
Delivery Time: 1week
Payment Terms: T/T, L/C
Detail Information
Place of Origin:
china
Certification:
ISO
Material:
PC
Color:
White
Cable Entry:
3 Ports For Uncut Cable
Cable Exit:
16ports, Each 2pcs Drpo Cable Ports
Adapter Qty:
24SC
Splitter:
1x2,1x4, 1x8,1x16 Steel Tube Or ABS Module
Lock System:
Key And Buckles
Mounting Method:
Pole / Wall Mounted
Packaging Details:
1pc/box, 10pcs/carton box
Highlight:

fiber optic junction box

,

fiber optic distribution box

Product Description

24 Port FTTH Box Pole Mount Waterproof IP65 With SC Adapters and Pigtails



This terminal box is used for drop cable or soft cable in ftth deployment, maximum can do 24 pcs subscribers,

it mix the function of fiber optic splitting, splicing, distribution and fiber storage in one box.



Specification

MODEL FDB0324
Dimension 334mm(W)x295mm(D)x116mm(D)
Cable ports 3 in, 32out
Cable diameter In:14mm ; out:3*2mm drop cable
Max. Adapter 24SC
Max. Splitter 1x8, 1x16,1x24 PLC splitter steel tube or ABS module
Color white
Capacity 24cores single fiber
Material PC
Waterproof grade IP65
Net weight 2.45kg
Quantity / carton 8 pcs
Gross weight / carton 24.5kg
Carton size 56*36*62cm



Box Size: 334.18*295.38*116.81mm

24 Port Fiber Optic Distribution Box Pole Mount With SC Adapters / Pigtails 0

Features

  • Industry Standard User Interface, be made of high impact plastic.
  • Can accommodate 1x8 & 1X16 &24 PLC splitter.
  • Anti-UV, Ultra violet resistant and rainfall resistant.
  • Up to 24 FTTH drops.
  • Wall and pole mountable.
  • 3 inlet ports, 24 outlet ports.
  • Round shape, hinge design

24 Port Fiber Optic Distribution Box Pole Mount With SC Adapters / Pigtails 124 Port Fiber Optic Distribution Box Pole Mount With SC Adapters / Pigtails 2

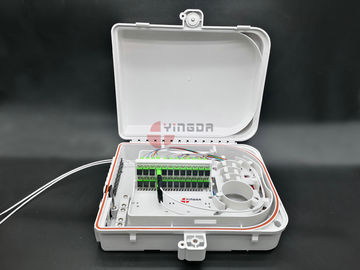

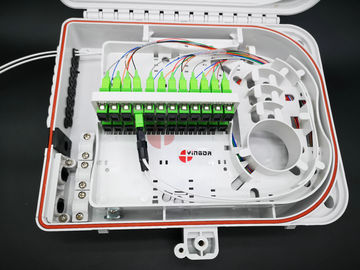

                                                              overview



24 Port Fiber Optic Distribution Box Pole Mount With SC Adapters / Pigtails 324 Port Fiber Optic Distribution Box Pole Mount With SC Adapters / Pigtails 4

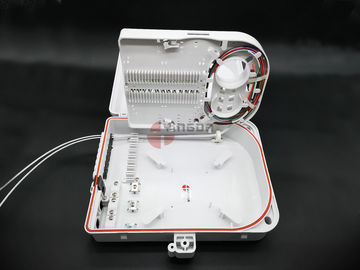

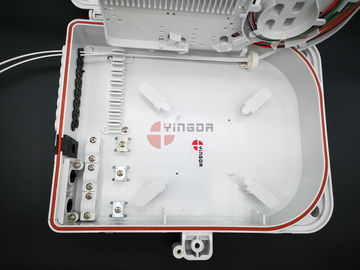

                       box bottom                                                                 pole mount ring



24 Port Fiber Optic Distribution Box Pole Mount With SC Adapters / Pigtails 524 Port Fiber Optic Distribution Box Pole Mount With SC Adapters / Pigtails 6

                                                 box+splitter



24 Port Fiber Optic Distribution Box Pole Mount With SC Adapters / Pigtails 724 Port Fiber Optic Distribution Box Pole Mount With SC Adapters / Pigtails 8

                                               drop cable out and fixtion



24 Port Fiber Optic Distribution Box Pole Mount With SC Adapters / Pigtails 924 Port Fiber Optic Distribution Box Pole Mount With SC Adapters / Pigtails 10

                                        fusion area +  cable ports from inside





Application

  • Widely used in FTTH access network.
  • Telecommunication Networks
  • CATV Networks
  • Data communications Networks
  • Local Area Networks

Standard accessory

Heat shrink protection sleeve, buffer tube, nylon tie, label mark, expansion screws, etc.



Optional accessory:

Pole mount ring, adapter, pigtails, splitter, etc.
