24 Cores 3 Ports Fiber Optic Cable Joint Box Enclosure IP65 GP62DW-3 With Splice Tray

Name: 24 Cores 3 Ports Fiber Optic Cable Joint Box Enclosure IP65 GP62DW-3 With Splice Tray
Brand: YINGDA TECHNOLOGY LIMITED
SKU: GP62DW-3 (FDB-6003)
Price: 9.00 USD
Availability: InStock

Brand Name:	YINGDA
Model Number:	GP62DW-3 (FDB-6003)
MOQ:	10 PCS
Price:	1.0USD-18.6USD
Delivery Time:	5working days
Payment Terms:	Western Union, T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

ISO SGS CE ROHS

Capacity:

2 Cores

Cable Ports:

2 Cable Glands

Dimension:

208×153×52mm

Material:

Polymer Synthetic Plastic

Color:

Grey

Adapter:

2 SC; 4 LC

Installation Method:

Outdoor Wall Mount

Splice Tray:

1 Pc

Feature:

Ftth Customer End User Box

Splitter:

1x2 1x4 Mini Module Plc Splitter

Packaging Details:

1 pc / box, 30 pcs/ carton shipping box

Highlight:

fiber optic closure

splitter distribution box

Product Description

IP65 24 Cores 3 Ports Fiber Optic Cable Joint Box Enclosure GP62DW-3 With Splice Tray

Feature:

Suitable for protective splice for figure-8 or Φ3 drop cable and distribution for Φ12 cable termination

For wall mount applications

Built in swing out mini splice tray

Can accommodate up to a 1x8 splitter

Max capacity 24 LC( quad adapters) or 12 SC (simplex adapter)

Locking door with key

It is suitable for outdoor cable or indoor soft cable

Application:

Outdoor wall mount or pole mount

FTTH distribution or splitting

Specification:

Parameter	Value
PLC splitter	Mini module 0.9mm
Splitter installation position	Splitter fixing bracket
Adapter	SC,LC
Max ratio	1x8(SC);1X16(LC)
Max distribution	24Fiber
Splice tray	1 pc 15#
Cable	outdoor cable, indoor soft cable
Optional	PLC splitter,SC duplex adapter, LC 4way adapter
Box dimension	570415355mm
Package	20pc/Carton

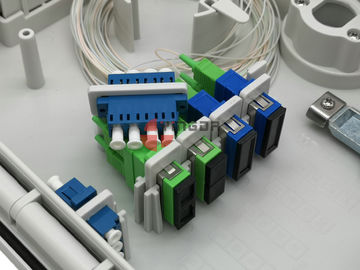

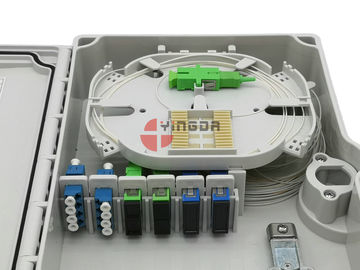

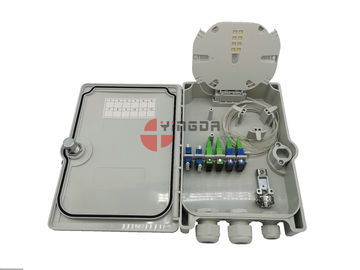

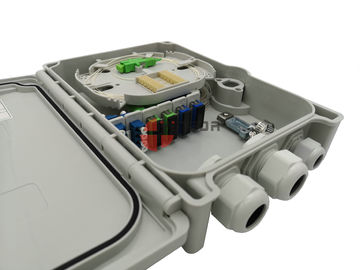

Product details:

24 Cores 3 Ports Fiber Optic Cable Joint Box Enclosure IP65 GP62DW-3 With Splice Tray 0

24 Cores 3 Ports Fiber Optic Cable Joint Box Enclosure IP65 GP62DW-3 With Splice Tray 2

24 Cores 3 Ports Fiber Optic Cable Joint Box Enclosure IP65 GP62DW-3 With Splice Tray 4
