Fiber Optic Splitter Box
Created with Pixso. Outdoor IP65 Fiber Optic Splitter Box Plastic 2 Ports Polymer Synthetic Plastic Material

Outdoor IP65 Fiber Optic Splitter Box Plastic 2 Ports Polymer Synthetic Plastic Material

Brand Name: YINGDA
Model Number: GP62DW-2 (FDB-6002)
MOQ: 10 PCS
Price: 1.0USD-18.6USD
Delivery Time: 5working days
Payment Terms: Western Union, T/T, L/C
Detail Information
Place of Origin:
china
Certification:
ISO SGS CE ROHS
Capacity:
2 Cores
Cable Ports:
2 Cable Glands
Dimension:
208×153×52mm
Material:
Polymer Synthetic Plastic
Color:
Grey
Adapter:
2 SC; 4 LC
Installation Method:
Outdoor Wall Mount
Splice Tray:
1 Pc
Feature:
Ftth Customer End User Box
Splitter:
1x2 1x4 Mini Module Plc Splitter
Packaging Details:
1 pc / box, 30 pcs/ carton shipping box
Highlight:

fiber optic closure

,

splitter distribution box

Product Description

Outdoor IP65 Plastic 2 Ports SC Optical Fiber Ftth End User Box Wall Mount Grey



GP62DW-2 is a new generation product for fiber to the home. The box is light and compact; it is especially for connecting and protection for fiber cable of FTTH.



Features

  • Max capacity: LC 4fiber, SC 2fiber.
  • Excellent sealing performance,reusable,protection class is IP 65.
  • Wall mount application
  • Built in swing out mini splice tray
  • Builk head panel with 2 SC/LC Duplex (SC footprint)
  • Built in weather tight grommets
  • Locking door with key
  • It is suitable for outdoor cable or indoor soft cable

Specification

Parameter Value
PLC splitter Mini module 0.9mm
Splitter installation position Splitter fixing bracket
Adapter SC,LC
Max ratio 1x2(SC);1X4(LC)
Splice tray 1 pc 18#
Cable outdoor cable, indoor soft cable
Optional PLC splitter,SC adapter,LC duplex adapter
Box dimension 460*335*590mm
Package 60pc/Carton



Product details

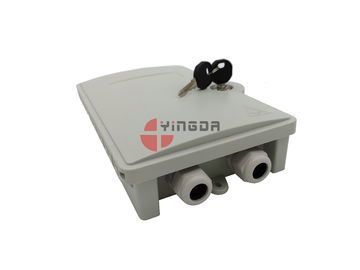

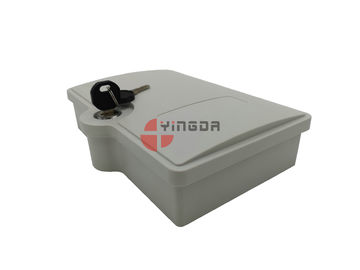

1.Overview

ABS+PC material, 2cable glands, with number for fiber routing. and there is splice tray transparent cover on the tray.

waterproof circle to protect the box, anit-UV, anti-wet, anti-dust, IP66.

Outdoor IP65 Fiber Optic Splitter Box Plastic 2 Ports Polymer Synthetic Plastic Material 0Outdoor IP65 Fiber Optic Splitter Box Plastic 2 Ports Polymer Synthetic Plastic Material 1

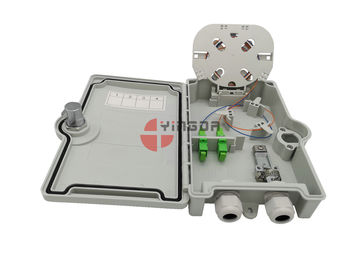

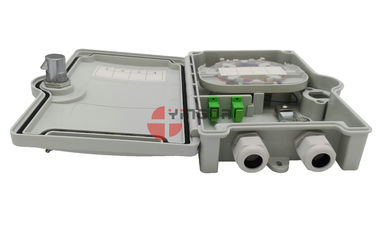

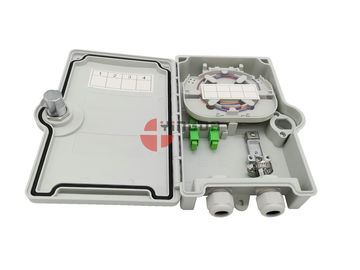

2. Cable distribution or fusion area:

there is adapter panel with 2SC or 4LC duplex adapter, there is steel tube holder, and cable rods for management.

we can fix the feeder cable on the metal fixtion, no loose, no fiber break.



Outdoor IP65 Fiber Optic Splitter Box Plastic 2 Ports Polymer Synthetic Plastic Material 2Outdoor IP65 Fiber Optic Splitter Box Plastic 2 Ports Polymer Synthetic Plastic Material 3

Outdoor IP65 Fiber Optic Splitter Box Plastic 2 Ports Polymer Synthetic Plastic Material 4Outdoor IP65 Fiber Optic Splitter Box Plastic 2 Ports Polymer Synthetic Plastic Material 5



3. metal rods with balck plastic keys

    2pcs key is in accessory bag before delivery.



Outdoor IP65 Fiber Optic Splitter Box Plastic 2 Ports Polymer Synthetic Plastic Material 6Outdoor IP65 Fiber Optic Splitter Box Plastic 2 Ports Polymer Synthetic Plastic Material 7

Application

  • Outdoor wall mount or pole mount
  • FTTH distribution or splitting

Standard accessory

Outdoor IP65 Fiber Optic Splitter Box Plastic 2 Ports Polymer Synthetic Plastic Material 8
