Indoor IP54 Wall Mounted White FTTH Fiber Optic Cable Termination Box Mini Compact 8 Cores SC Adapter

Place of Origin china
Brand Name yingda
Certification ISO, ROHS, SGS
Model Number FTB008A-108SA
Minimum Order Quantity 100pcs
Price negotiable
Packaging Details 1 pc / carton box, 20 pcs / master box
Payment Terms T/T, Western Union

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material ABS+PC Color White
Dimension 235*125*45 Mm Application Ftth Indoor Use
Installation Method Wall Mount IP54 Drop Cable Size 2*3 Mm Flat Drop Cable
Adapter Qty 8 Pcs SC With Flange Splitter Qty 1 Piece 1:8 Optical Fiber Plc Spltiter
High Light

fiber optic junction box

,

fiber optic distribution box

Leave a Message
Product Description

Indoor IP54 Wall Mounted White FTTH Fiber Optic Cable Termination Box Mini Compact 8 Cores SC Adapter​



FTB008A plastic terminal box is indoor use only, mainly for distribution vertical cable from patch cord to end customer. It is placed on the wall or bottom of the floor cabinet niche by screws.



The entry 2 ports can use multi-fiber cable maximum diameter 12mm, 8 pcs outputs for ftth drop cable. Meanwhile, unique design of separate covers for the adapter and cable entry/exit ports makes it more safe, nice and humanity.



Specification:

Model FTB008A
Dimension 235*125*45 mm (H*W*D)
Cable ports 2 inlet, 8 outlet
Cable dimeter In:12 mm, out: 3 mm
Installation Wall mount
Max. Fusion 24 single fibers
Splice tray 1 pc splice tray, 1 pc splitter tray, 1 pc tray for fiber management
Material ABS+PC
Color Gray
PLC Splitter 1x2,1x4,1x8 mini module plc splitter 0.9mm 1meter
Max. Adapter 8 pcs SC simplex, shutter with flange all ok.

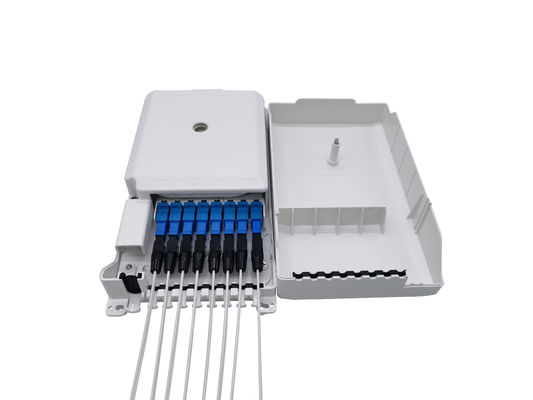

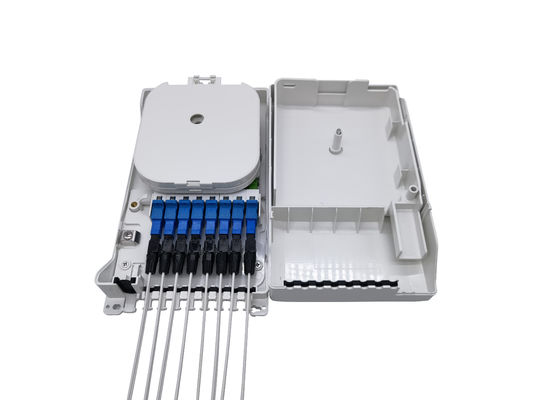

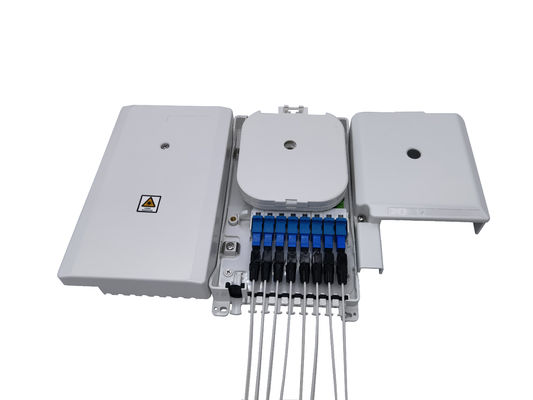

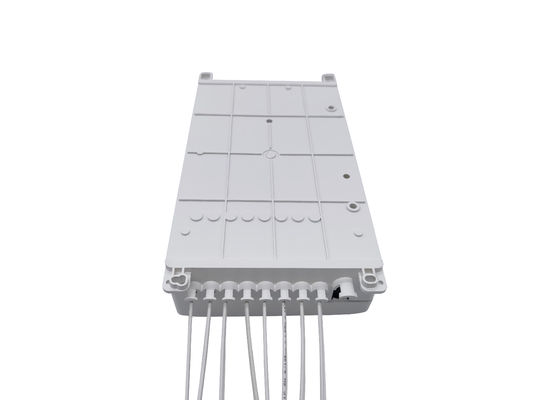

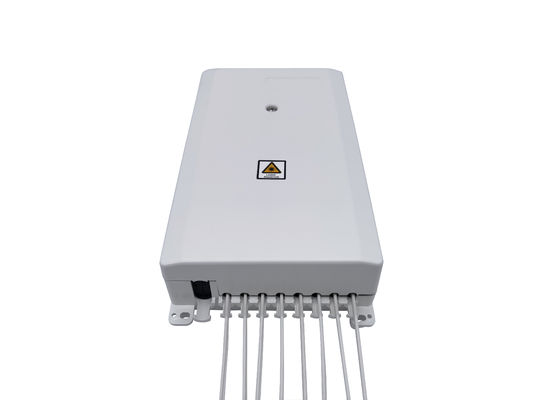

Indoor IP54 Wall Mounted White FTTH Fiber Optic Cable Termination Box Mini Compact 8 Cores SC Adapter 0

Indoor IP54 Wall Mounted White FTTH Fiber Optic Cable Termination Box Mini Compact 8 Cores SC Adapter 1

Indoor IP54 Wall Mounted White FTTH Fiber Optic Cable Termination Box Mini Compact 8 Cores SC Adapter 2

Standard accessory:

heatshrink protection sleeve, Cable nylon ties, wall mount expansion screws, spiral tube, etc



Optional accessory:

plc splitter, fast connector, adapter, drop cable, etc.



Indoor IP54 Wall Mounted White FTTH Fiber Optic Cable Termination Box Mini Compact 8 Cores SC Adapter 3Indoor IP54 Wall Mounted White FTTH Fiber Optic Cable Termination Box Mini Compact 8 Cores SC Adapter 4
