1/8 Fiber Optic PLC Splitter Cassette Outdoor IP65 Pole Mount For FTTH GPON

Outdoor IP65 Pole Mount 1:8 Fiber Optic PLC Splitter Cassette Fusion Distribution Box for FTTH GPON

The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

Features:

Total enclosed structure with key and buckles

High strength engineer plastic, wet-proof, water-proof, dust-proof, anti-aging,protection level up to IP65.

Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution,etc all in one.

Cable, pigtails, patch cords are running through own path without disturbing each other,cassette type SC adaptor installation, easy maintenance.

Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.

Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.

Outdoor wall mount or pole mount

More pictures:

Cable lock with key and 2 buckles.                     the box can install max. 2pcs 1*8 mini splitter with adapter

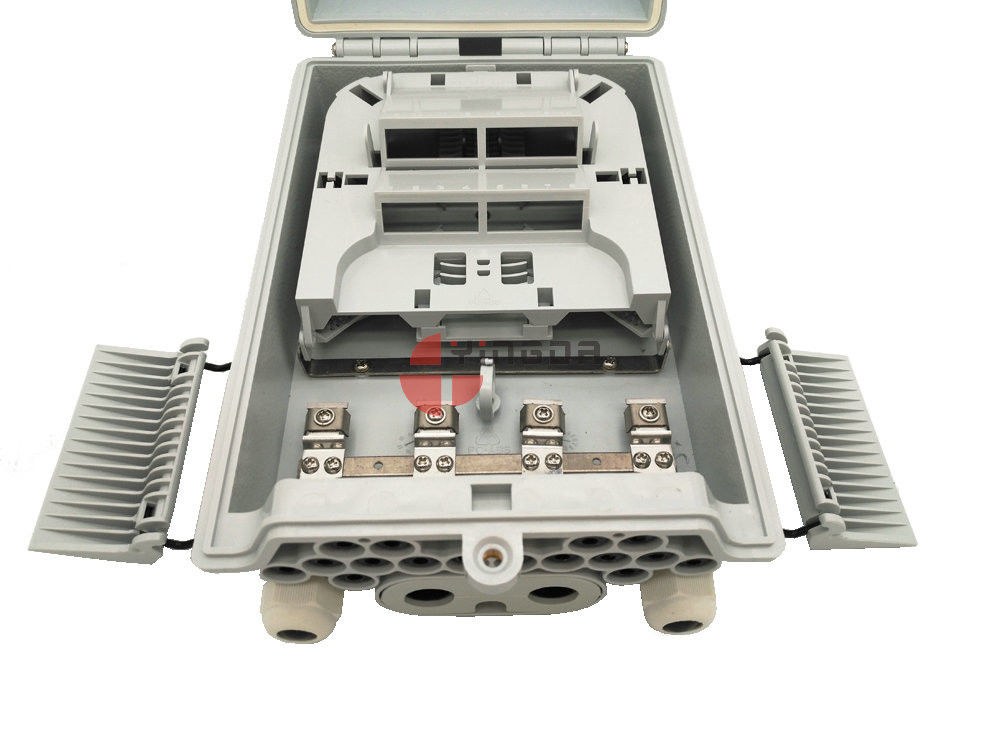

1uncut port for feeder cable in an out without cutting, and 2round ports, 16pcs ftth drop cable, all is waterproof seal with rubber., and there is enough space for cable entry and exit. there is metal fixtion.

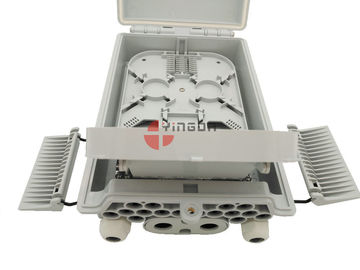

there is rotate tray  to fix the 16pcs SC adapters,and 2 slots to hold PLC splitter steel tube, fusion splice tray have 8slots for max. 16pcs single fiber splicing, and big capacity for fiber distribution and storage.

Specification

Standard accessory

User manual, metal key, cable fixtion, nylon tie, wall mount expansion screws, 2pcs back metal sheet, buffer tube, heat protetcion sleeve, etc

Environmental performance:

1.Environmental requirement

Working temperature:-40℃～+60℃

Relative humidity:≤85%(+30℃)

Atmospheric pressure:70KPa～106Kpa

2.Main technical datasheet

Insertion loss:≤0.2dB

UPC return loss:≥50dB

APC return loss:≥60dB

Life of insertion and extraction:＞1000 times

3.Thunder-proof technical datasheet

The grounding device is isolated with the cabinet, isolation resistance is less than 2MΩ/500V(DC);

IR≥2 MΩ/500V

The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture,no flashover

;U≥3000V
